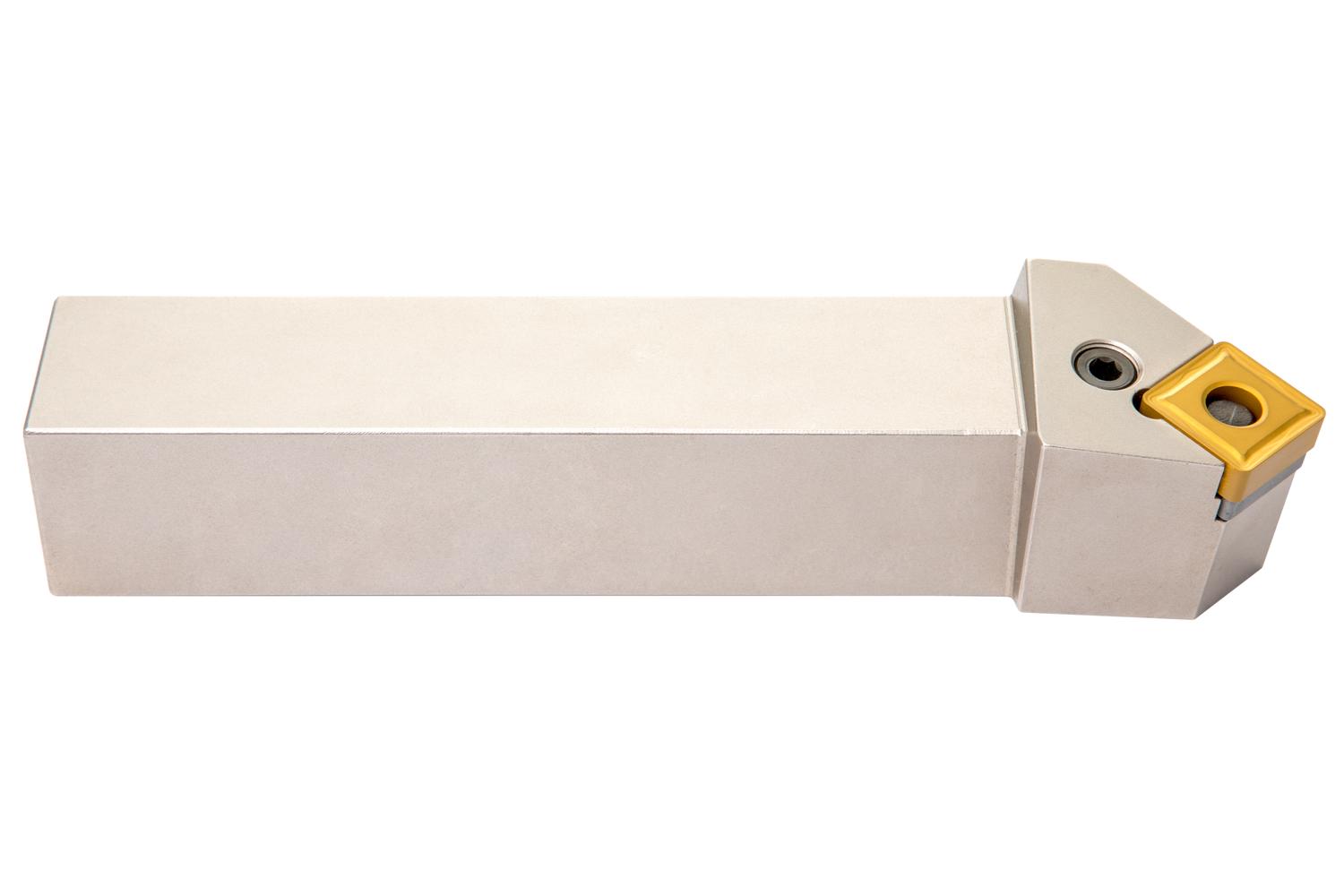

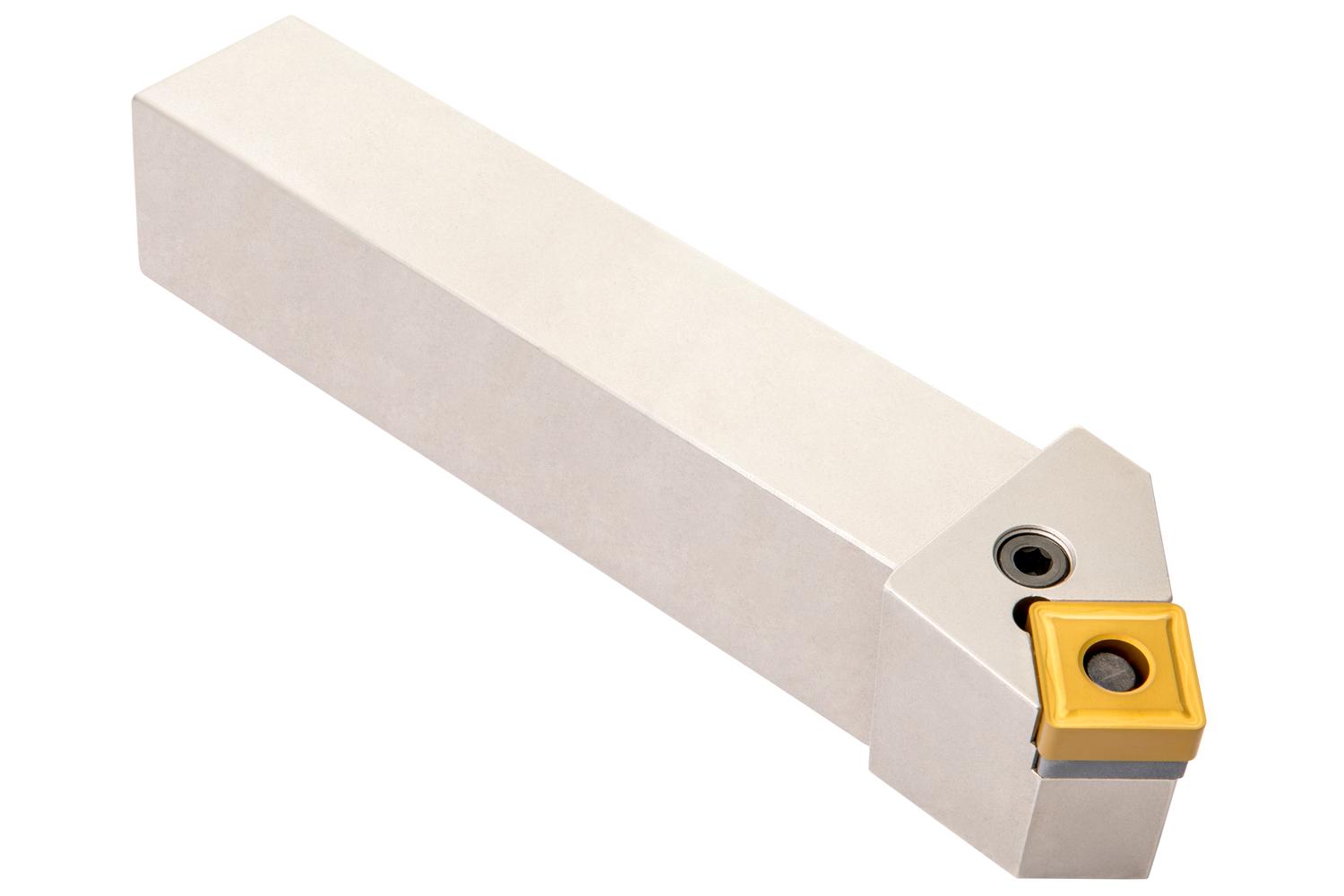

PRAMET PSSNL 4040 S 19 Turning holders external

Description

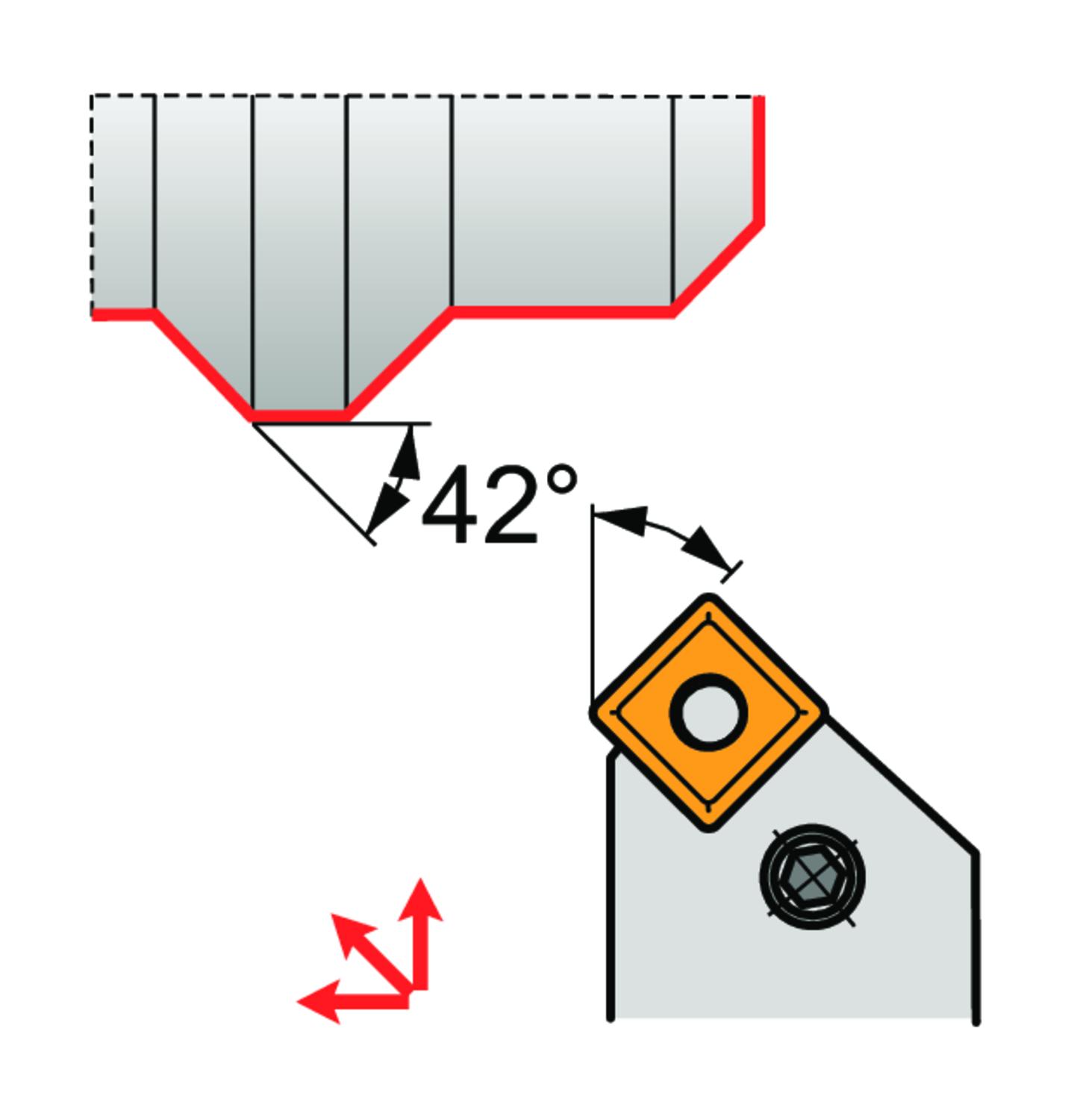

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation SN.. 1906.. ), left hand 45° side cutting with off-set shank, 40mm tool height x 40mm width x 250mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder

Additional information

Weight	3.1637 kg
Dimensions
barcode	3603604052207

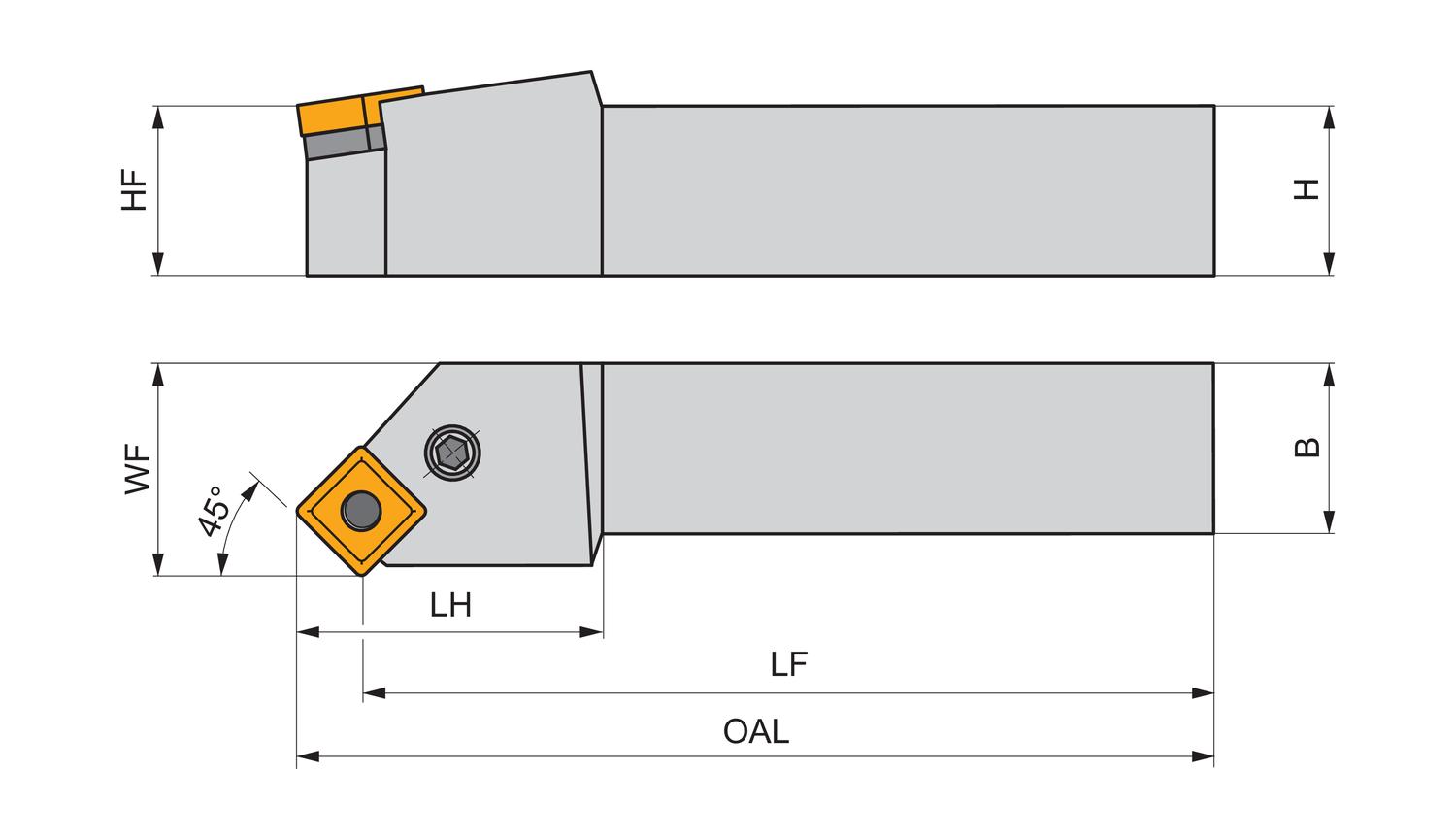

Additional Information	Description: Value EAN number: 3603604052207 Product number (SAP): 86041133 Ordering code ANSI: PSSNL 4040 S 19 Gross weight – grams: 3163.7 Shank height – millimeter (H): 40 mm Shank width – millimeter (B): 40 mm Functional height – millimeter (HF): 40 mm Functional width – millimeter (WF): 50 mm Functional length – millimeter (LF): 250 mm Overall length – millimeter (OAL): 262.5 mm Head length – millimeter (LH): 45 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): -8 Net weight – grams: 3163.7 Insert size: 19 ISO: PSSNL4040S19
