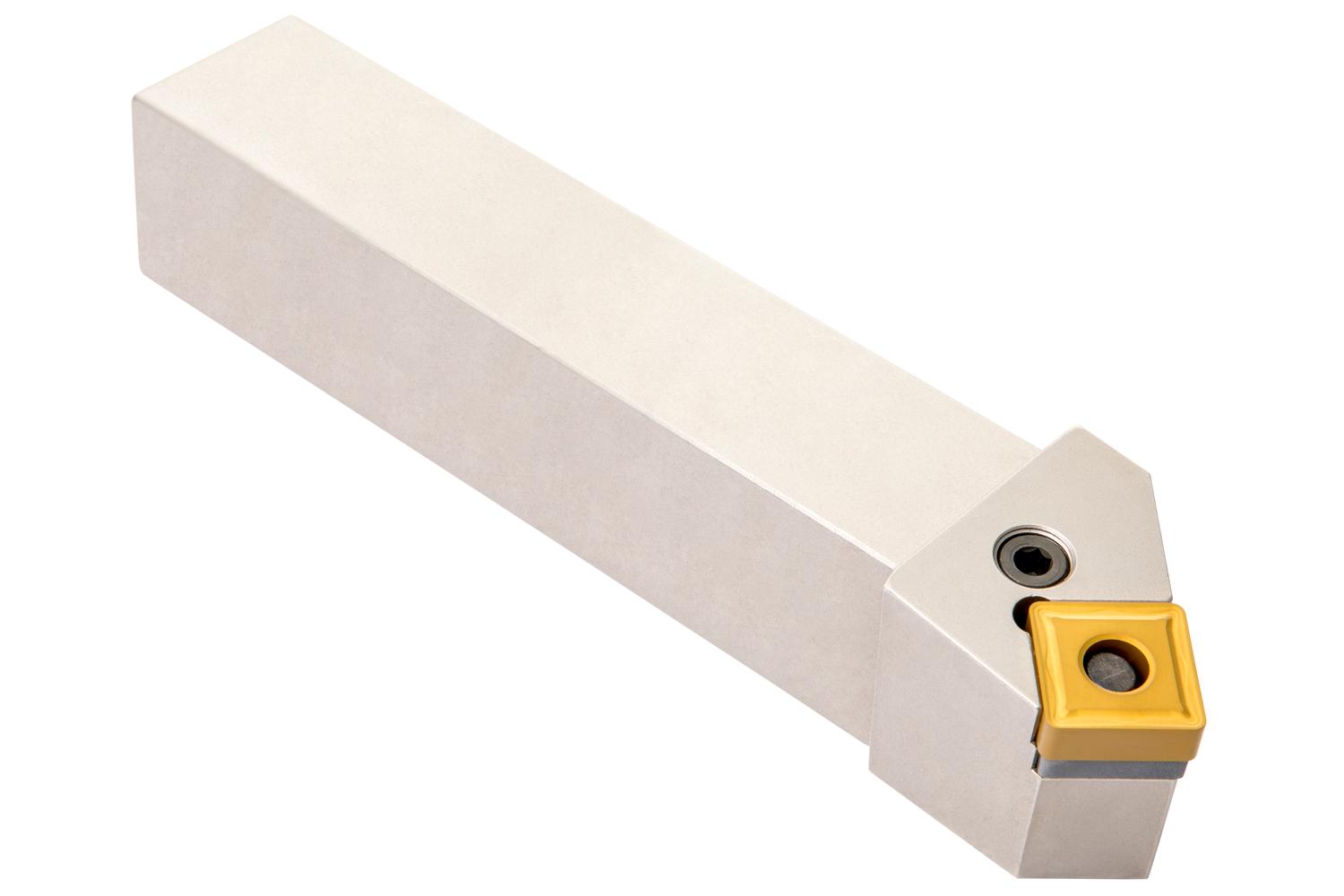

PRAMET PSSNL 5050 T 25 Turning holders external

Description

Lever lock turning tool for holding a square negative insert with an inscribed circle diameter of 25.4mm, 7.94mm thick (ISO designation SN.. 2507.. ), left hand 45° side cutting with off-set shank, 50mm tool height x 50mm width x 300mm long for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder

Additional information

Weight	0.4488 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603602936363 Product number (SAP): 84004558 Ordering code ANSI: PSSNL 5050 T 25 Gross weight – grams: 5986.3 Shank height – millimeter (H): 50 mm Shank width – millimeter (B): 50 mm Functional height – millimeter (HF): 50 mm Functional width – millimeter (WF): 60 mm Functional length – millimeter (LF): 300 mm Overall length – millimeter (OAL): 316 mm Head length – millimeter (LH): 50 mm Inclination angle (LAMS): 0 Orthogonal rake angle (GAMO): -8 Net weight – grams: 5810 Insert size: 25 ISO: PSSNL5050T25

Need Technical Advice?

Description

Additional information

Brand

PRAMET
