PRAMET PWLNR 1616 H 0604 Turning holders external

Product Code: PWLNR 1616 H 0604

$145.02$131.84 Ex. GST

Product Code: PWLNR 1616 H 0604 SKU PWLNR 1616 H 0604 Categories , ,
PRAMET PWLNR 1616 H 0604 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

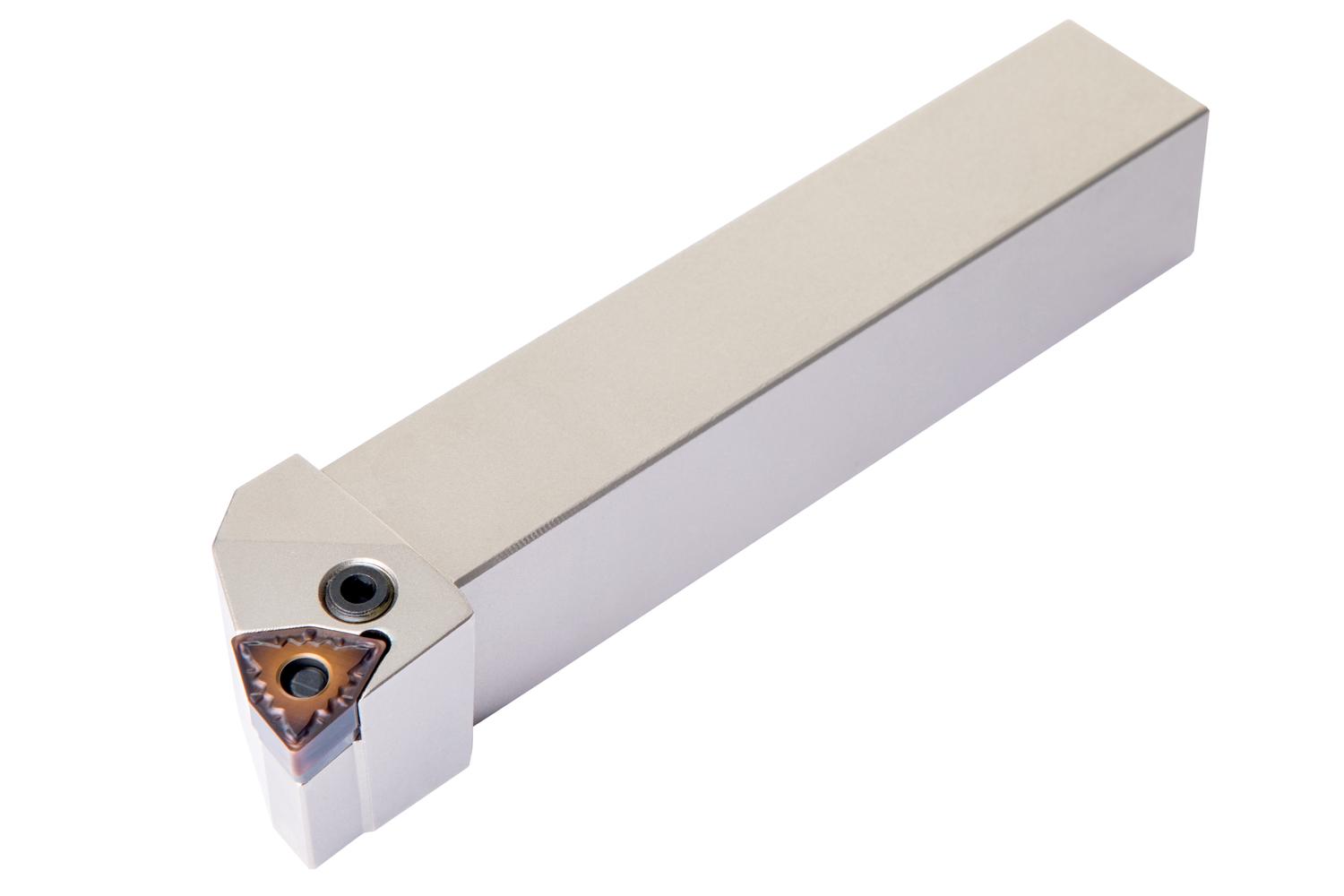

Lever lock turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation WN.. 0604.. ), right hand 95° side and end cutting with off-set shank, 16mm tool height x 16mm width x 100mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

Additional information

Weight 0.1408 kg
barcode
Additional Information

Description: Value
EAN number: 3603602925602
Product number (SAP): 84001872
Ordering code ANSI: PWLNR 1616 H 0604
Gross weight – grams: 221
Shank height – millimeter (H): 16 mm
Shank width – millimeter (B): 16 mm
Functional height – millimeter (HF): 16 mm
Functional width – millimeter (WF): 20 mm
Functional length – millimeter (LF): 100 mm
Head length – millimeter (LH): 22 mm
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): -6
Net weight – grams: 220.7
Insert size: 06
ISO: PWLNR1616H0604

Brand

PRAMET
