PRAMET RC 10:M8330 Milling inserts for D&M

Product Code: RC 10:M8330

$57.78$52.53 Ex. GST

Product Code: RC 10:M8330 SKU RC 10:M8330 Categories CUTTING TOOLS (HSS & Carbide), G2 - Mill Ins D&M, Milling

PRAMET RC 10:M8330 Milling inserts for D&M

PRAMET RC 10:M8330 Milling inserts for D&M - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

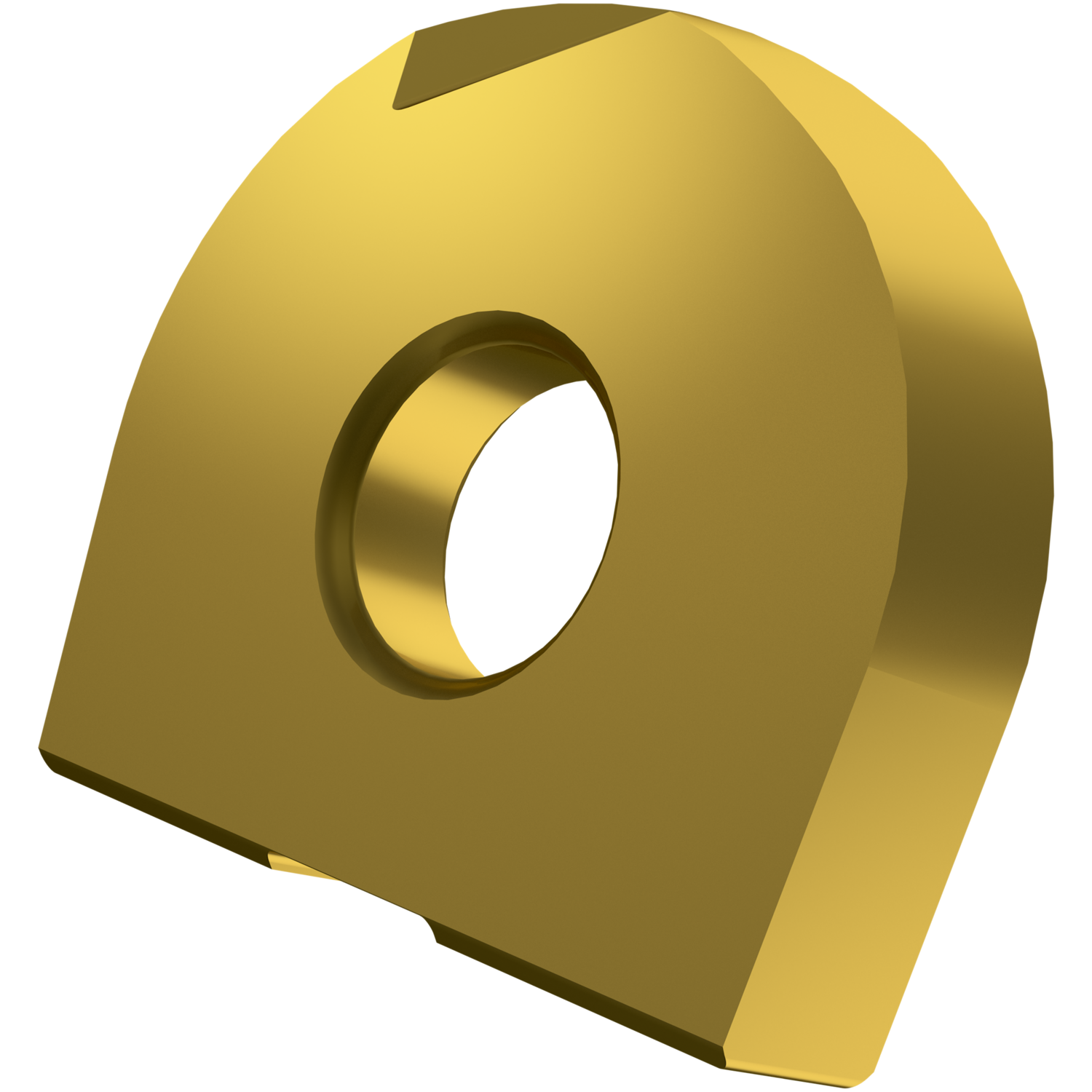

Ball nosed copy milling insert with a diameter of 10mm for a maximum depth of cut of 1.0mm, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20 -K40 for machining of cast-iron with copy end mills K2-SRC

Additional information

Weight	0.0561 kg
barcode
Additional Information	Description: Value EAN number: 3603603538481 Product number (SAP): 80031293 Ordering code ANSI: RC 10:M8330 Gross weight – grams: 2.863 Insert cutting diameter – millimeter (CDI): 10 mm Fixing hole diameter – millimeter (D1): 4 mm Insert length – millimeter (INSL): 11.5 mm Insert thickness – millimeter (S): 2.5 mm Grade: M8330 Insert Style: Ball nosed ISO: RC10:M8330
