PRAMET RC 12:M8330 Milling inserts for D&M

Product Code: RC 12:M8330

$61.75$56.14 Ex. GST

Product Code: RC 12:M8330 SKU RC 12:M8330 Categories CUTTING TOOLS (HSS & Carbide), G2 - Mill Ins D&M, Milling

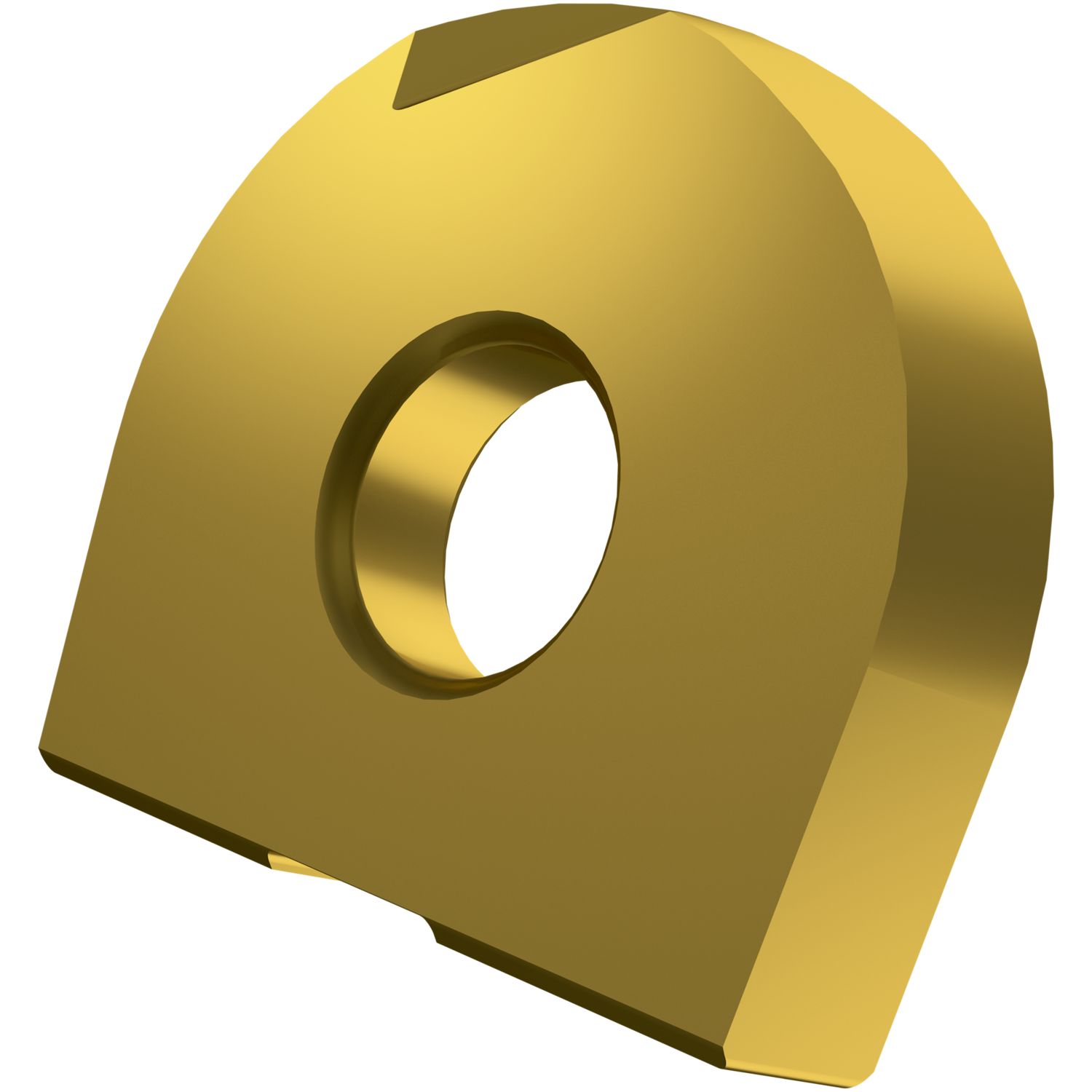

PRAMET RC 12:M8330 Milling inserts for D&M

PRAMET RC 12:M8330 Milling inserts for D&M - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Ball nosed copy milling insert with a diameter of 12mm for a maximum depth of cut of 1.2mm, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron with copy end mills K2-SRC

Additional information

Weight	0.06 kg
barcode

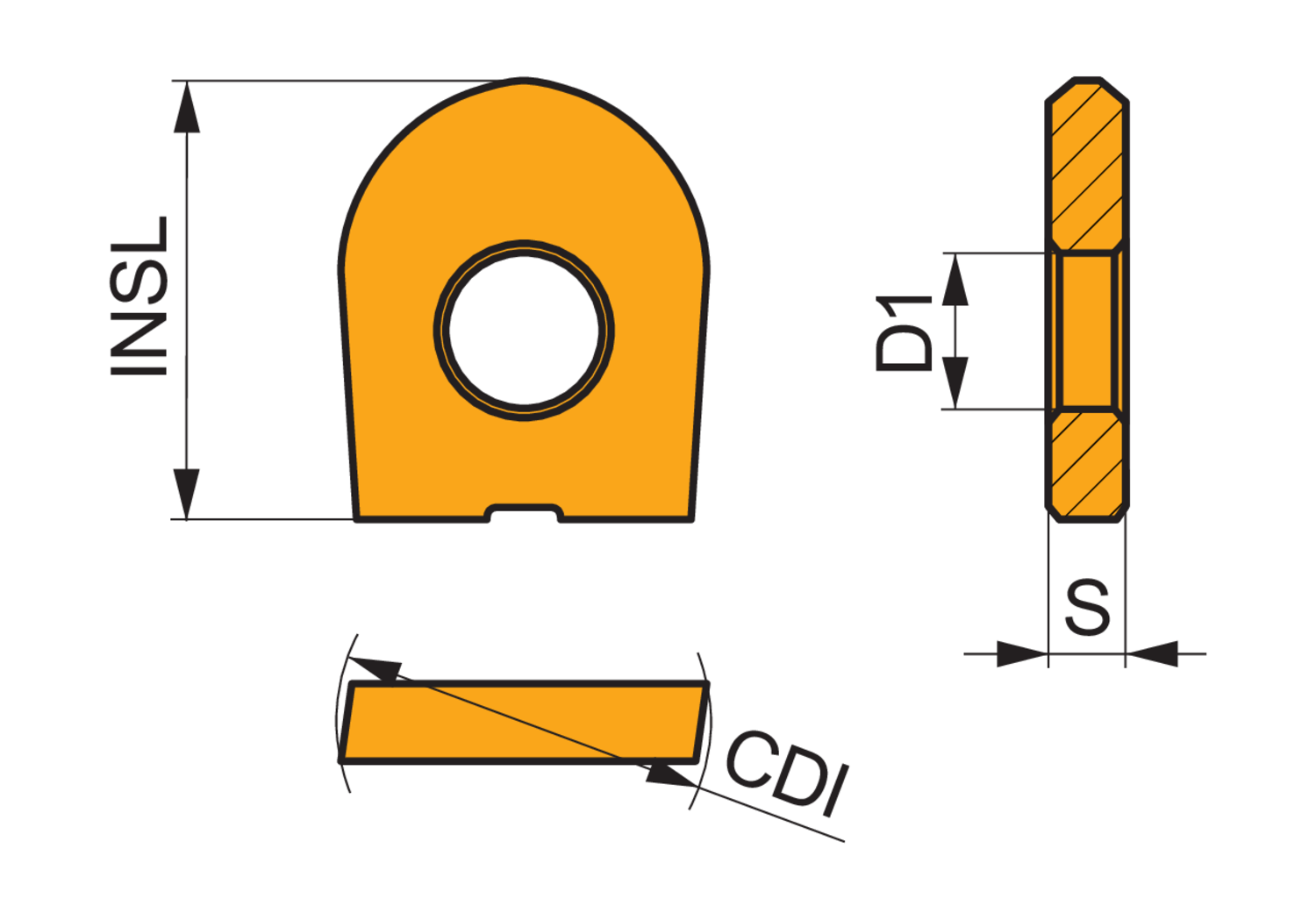

Additional Information	Description: Value EAN number: 3603603538511 Product number (SAP): 80031296 Ordering code ANSI: RC 12:M8330 Gross weight – grams: 3.391 Insert cutting diameter – millimeter (CDI): 12 mm Fixing hole diameter – millimeter (D1): 5 mm Insert length – millimeter (INSL): 12 mm Insert thickness – millimeter (S): 2.5 mm Grade: M8330 Insert Style: Ball nosed ISO: RC12:M8330
