PRAMET RC 16:M8330 Milling inserts for D&M

Product Code: RC 16:M8330

$64.02$58.20 Ex. GST

Product Code: RC 16:M8330 SKU RC 16:M8330 Categories CUTTING TOOLS (HSS & Carbide), G2 - Mill Ins D&M, Milling

PRAMET RC 16:M8330 Milling inserts for D&M

PRAMET RC 16:M8330 Milling inserts for D&M - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

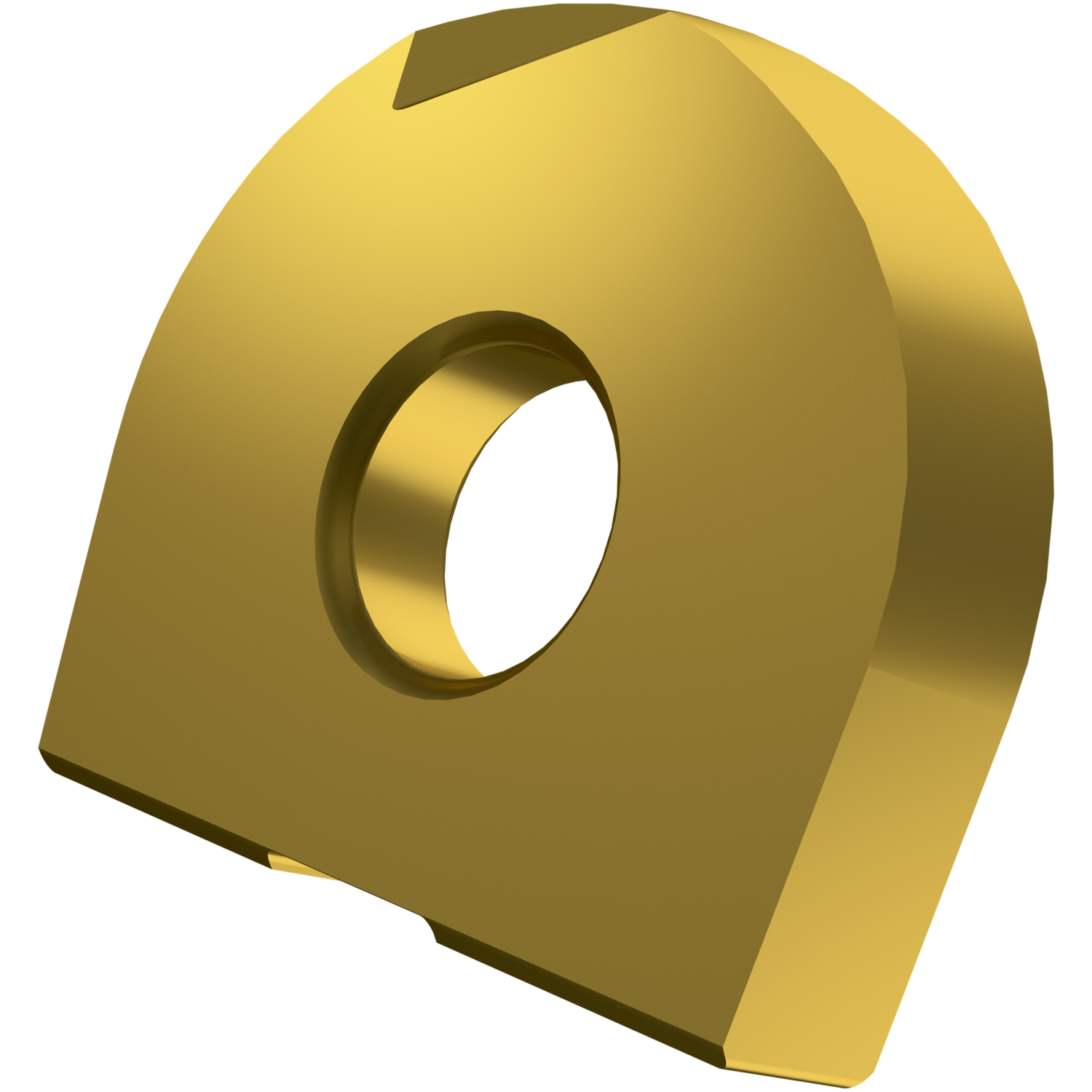

Ball nosed copy milling insert with a diameter of 16mm for a maximum depth of cut of 1.6mm, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron with copy end mills K2-SRC

Additional information

Weight	0.0622 kg
barcode
Additional Information	Description: Value EAN number: 3603603538542 Product number (SAP): 80031299 Ordering code ANSI: RC 16:M8330 Gross weight – grams: 6.883 Insert cutting diameter – millimeter (CDI): 16 mm Fixing hole diameter – millimeter (D1): 5 mm Insert length – millimeter (INSL): 14 mm Insert thickness – millimeter (S): 3 mm Grade: M8330 Insert Style: Ball nosed ISO: RC16:M8330
