PRAMET RC 20:M8330 Milling inserts for D&M

Product Code: RC 20:M8330

$73.08$66.44 Ex. GST

Product Code: RC 20:M8330 SKU RC 20:M8330 Categories CUTTING TOOLS (HSS & Carbide), G2 - Mill Ins D&M, Milling

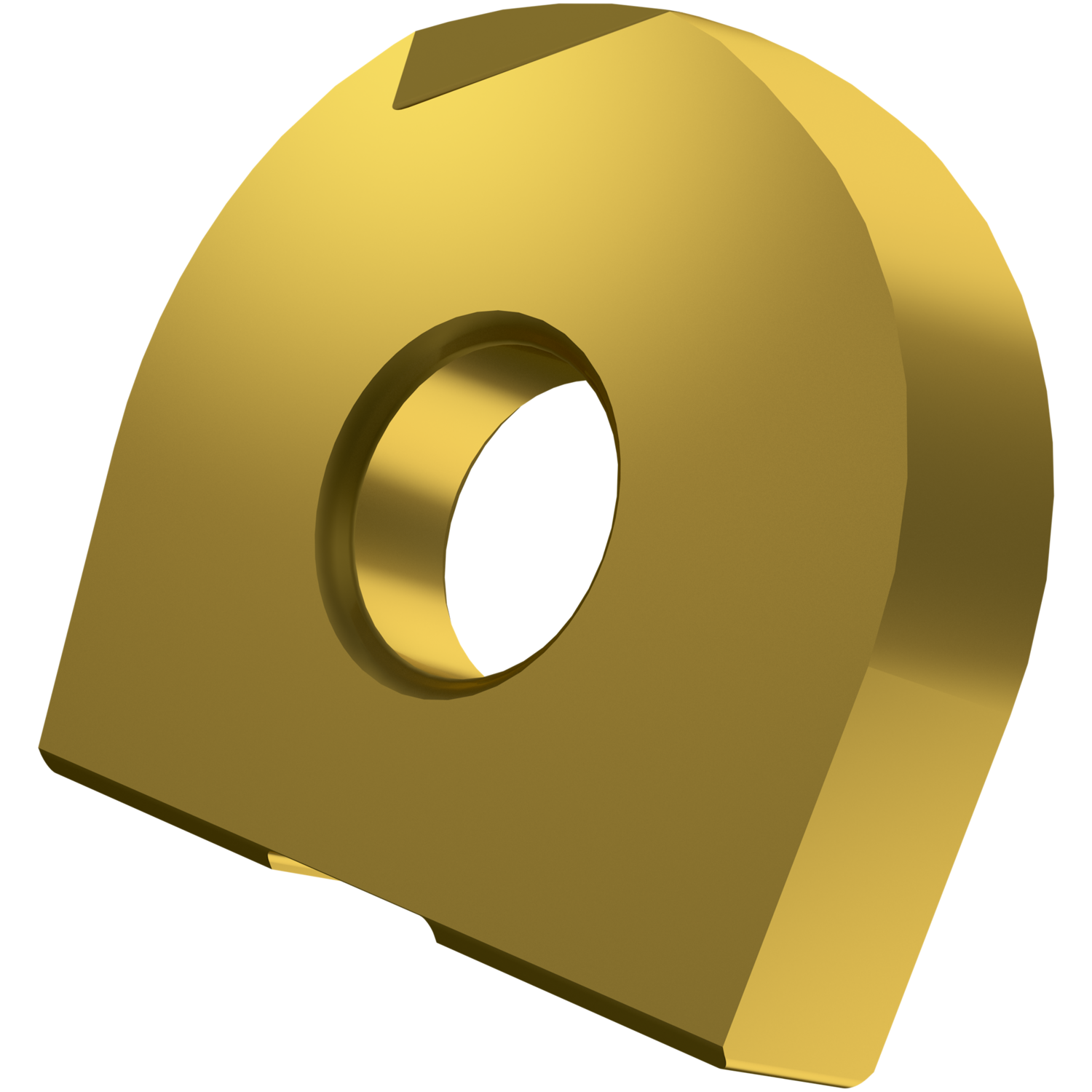

PRAMET RC 20:M8330 Milling inserts for D&M

PRAMET RC 20:M8330 Milling inserts for D&M - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Ball nosed copy milling insert with a diameter of 20mm for a maximum depth of cut of 2.0mm, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron with copy end mills K2-SRC

Additional information

Weight	0.0709 kg
barcode

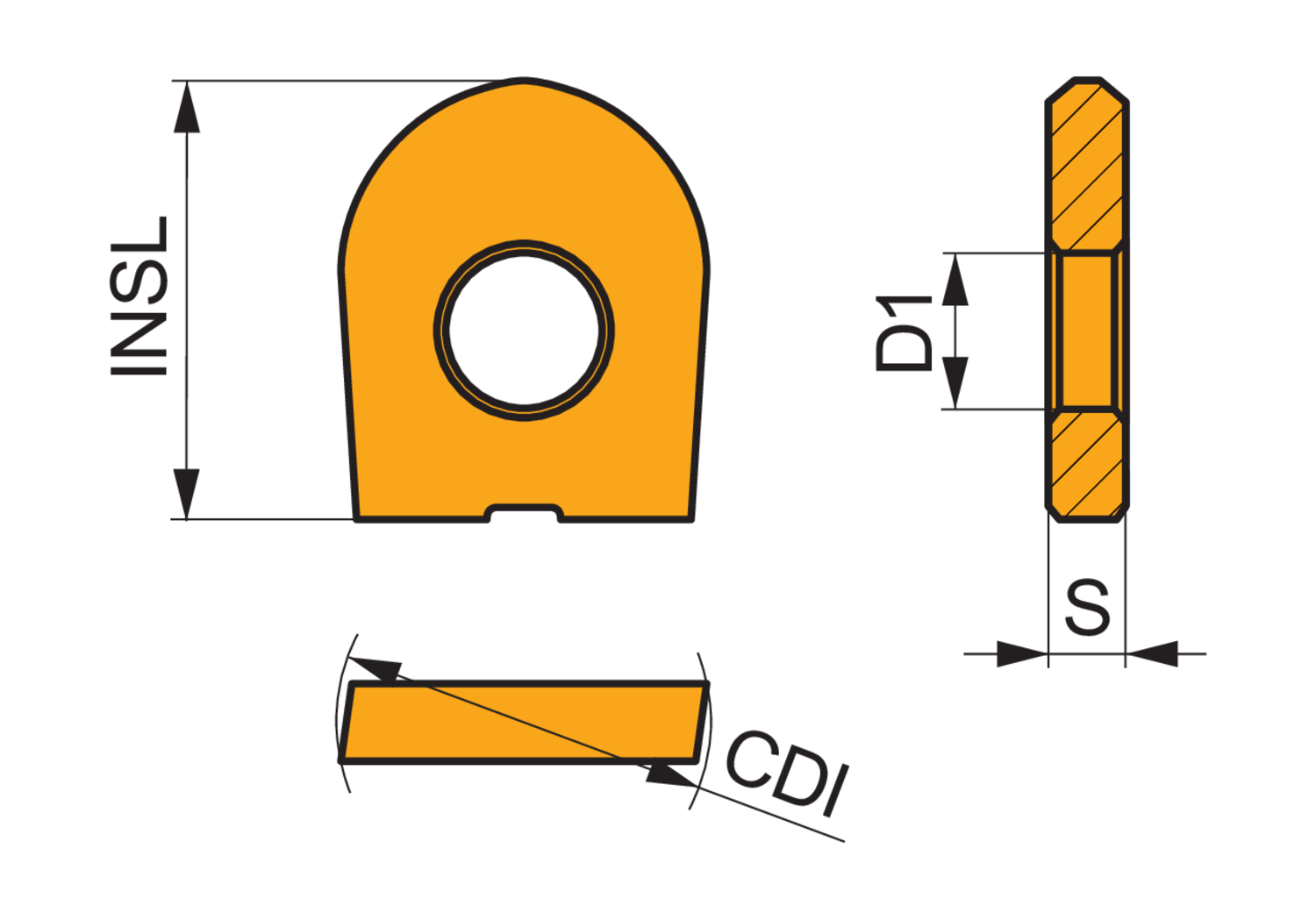

Additional Information	Description: Value EAN number: 3603603538580 Product number (SAP): 80031303 Ordering code ANSI: RC 20:M8330 Gross weight – grams: 9.923 Insert cutting diameter – millimeter (CDI): 20 mm Fixing hole diameter – millimeter (D1): 5 mm Insert length – millimeter (INSL): 16 mm Insert thickness – millimeter (S): 3 mm Grade: M8330 Insert Style: Ball nosed ISO: RC20:M8330

PRAMET RC 20:M8330 Milling inserts for D&M

Need Technical Advice?

Description

Additional information

Brand

PRAMET
