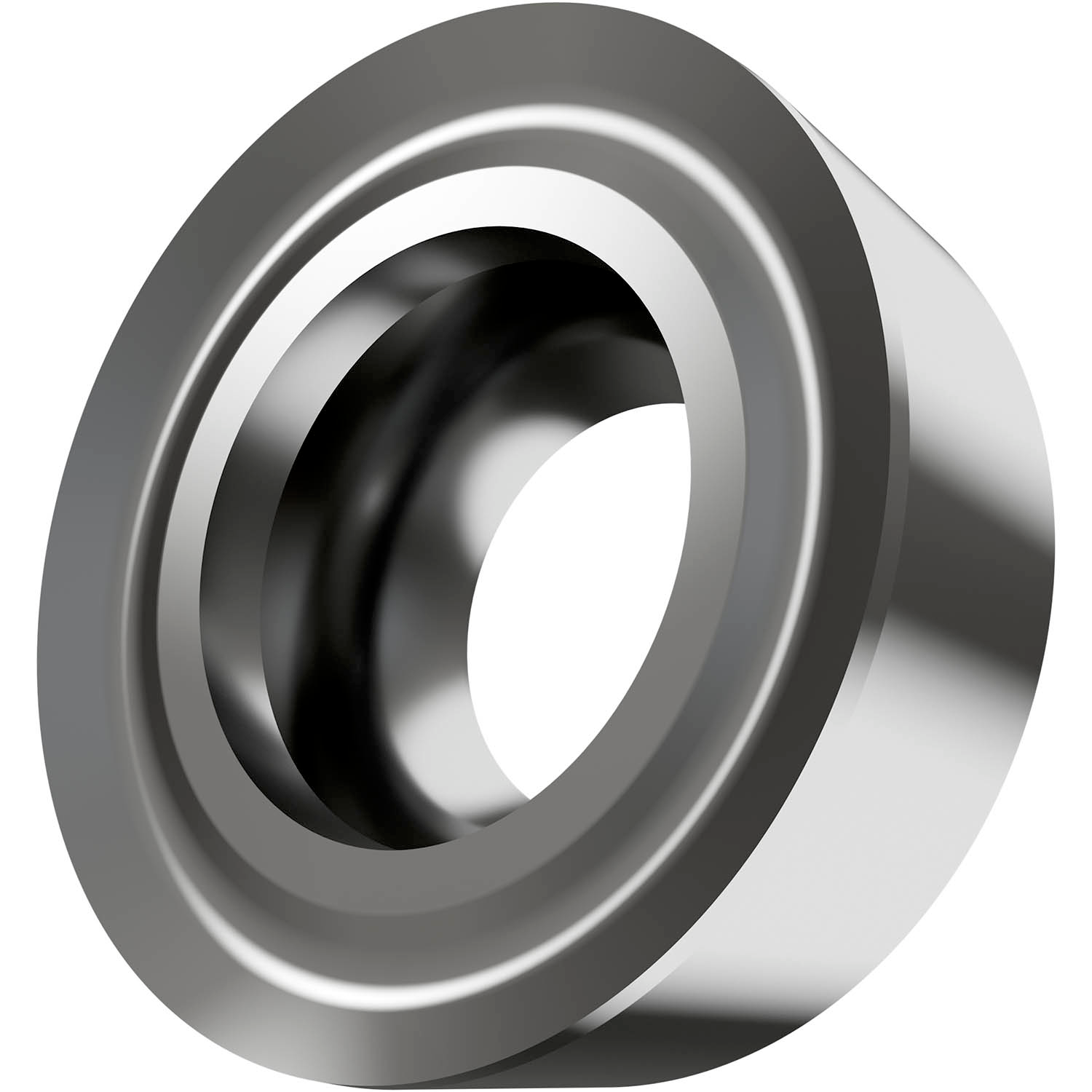

PRAMET RCGT 1003MOF-AL:T0315 Carbide inserts

Product Code: RCGT 1003MOF-AL:T0315

$24.24$22.04 Ex. GST

Product Code: RCGT 1003MOF-AL:T0315 SKU RCGT 1003MOF-AL:T0315 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided positive turning insert, round with 7° clearance, a diameter of 10mm, 3.18mm thick, indexing accuracy according to ISO-tolerance class-G, chip-breaker AL with sharp cutting edges, in grade T0315, a PVD coated fine grained WC-Co carbide within ISO range N05 -N20, for fine to heavy machining of non-ferrous metals

Additional information

Weight 0.0235 kg
barcode
Additional Information

Description: Value
EAN number: 3603602915177
Product number (SAP): 80023496
Ordering code ANSI: RCGT 1003MOF-AL:T0315
Gross weight – grams: 2.252
Insert diameter – millimeter (INSD): 10 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: T0315
Insert Clearance Code and Angle: C 7°
Insert Design: RCGT
Insert size: 10
Insert Thickness: 03
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): AL
Insert shape code (SC): R – round
Tool Design: RC
Insert Geometry: Positive
ISO: RCGT1003MOF-AL:T0315

Brand

PRAMET
