PRAMET RCMT 0602MOE-UR:T8430 Turning inserts positive

Product Code: RCMT 0602MOE-UR:T8430

$14.05$12.77 Ex. GST

Product Code: RCMT 0602MOE-UR:T8430 SKU RCMT 0602MOE-UR:T8430 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

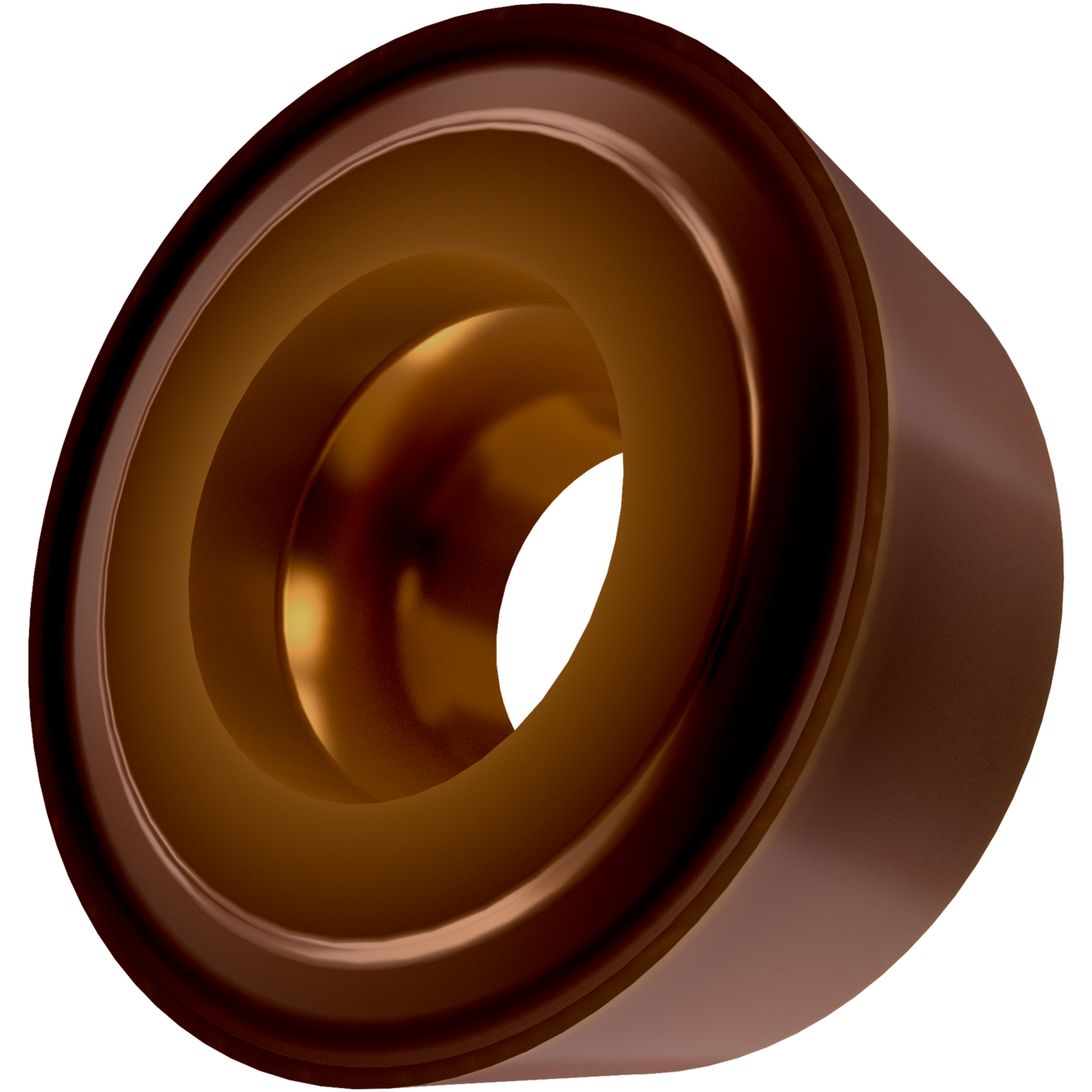

Single-sided positive turning insert, round with 7° clearance, a diameter of 6 mm, 2.38mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to heavy machining of steels

Additional information

Weight 0.0136 kg
barcode
Additional Information

Description: Value
EAN number: 3603603818439
Product number (SAP): 80033065
Ordering code ANSI: RCMT 0602MOE-UR:T8430
Gross weight – grams: 0.609
Insert diameter – millimeter (INSD): 6 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Insert thickness – millimeter (S): 2.38 mm
Grade: T8430
Insert Clearance Code and Angle: C 7°
Insert Design: RCMT
Insert size: 06
Insert Thickness: 02
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): UR
Insert shape code (SC): R – round
ISO: RCMT0602MOE-UR:T8430

Brand

PRAMET
