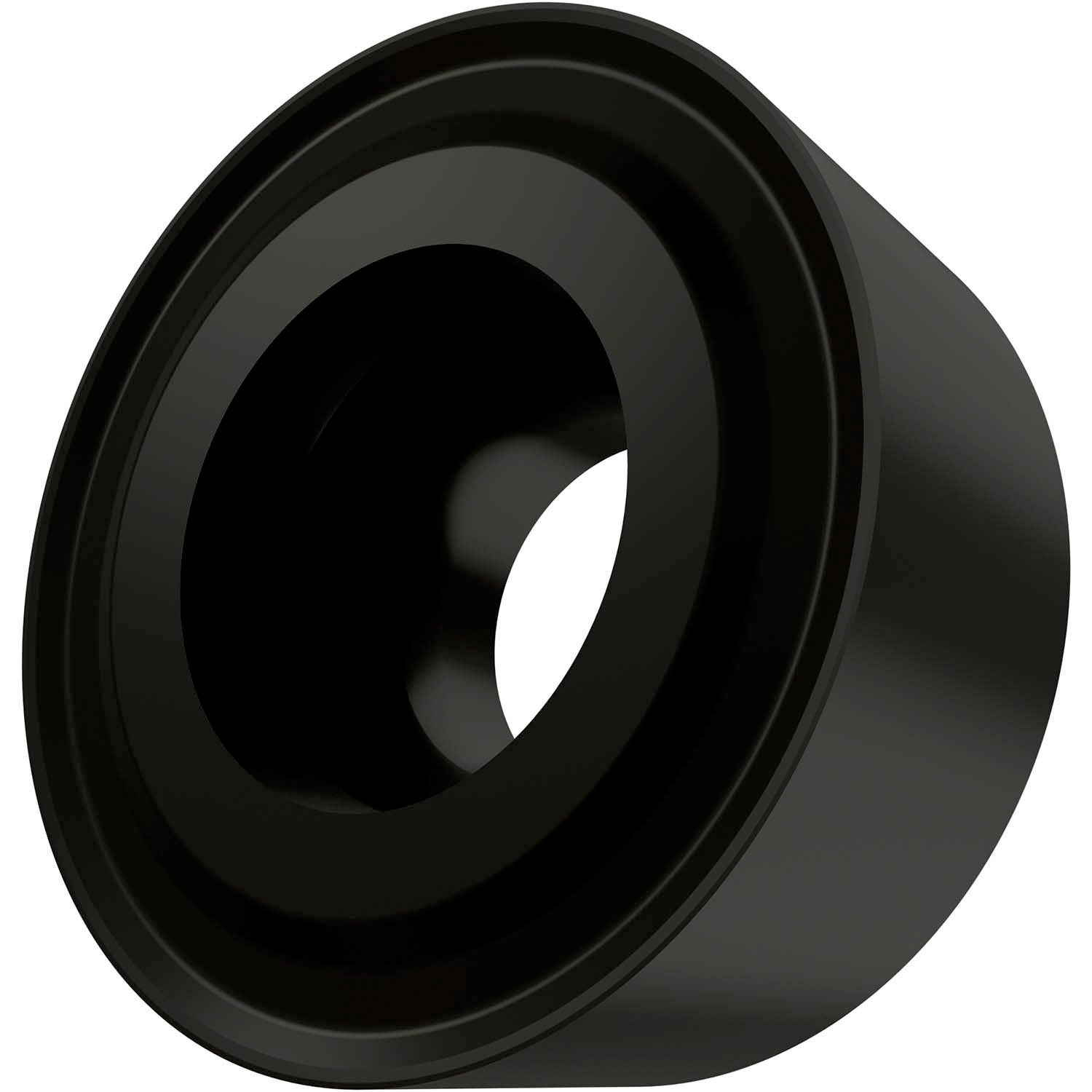

PRAMET RCMT 0803MOE-FM:T7325 Turning inserts positive

Product Code: RCMT 0803MOE-FM:T7325

$15.18$13.80 Ex. GST

Product Code: RCMT 0803MOE-FM:T7325 SKU RCMT 0803MOE-FM:T7325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided positive turning insert, round with 7° clearance, a diameter of 8mm, 3.18mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10 -M25, for fine to medium machining of stainless-steels

Additional information

Weight 0.0147 kg
barcode
Additional Information

Description: Value
EAN number: 3603603164383
Product number (SAP): 80027864
Ordering code ANSI: RCMT 0803MOE-FM:T7325
Gross weight – grams: 1.473
Insert diameter – millimeter (INSD): 8 mm
Fixing hole diameter – millimeter (D1): 3.4 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: T7325
Insert Clearance Code and Angle: C 7°
Insert Design: RCMT
Insert size: 08
Insert Thickness: 03
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FM
Insert shape code (SC): R – round
ISO: RCMT0803MOE-FM:T7325

Brand

PRAMET
