PRAMET RCMT 1204MOE-UR:T6310 Turning inserts positive

Product Code: RCMT 1204MOE-UR:T6310

$19.71$17.92 Ex. GST

Product Code: RCMT 1204MOE-UR:T6310 SKU RCMT 1204MOE-UR:T6310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

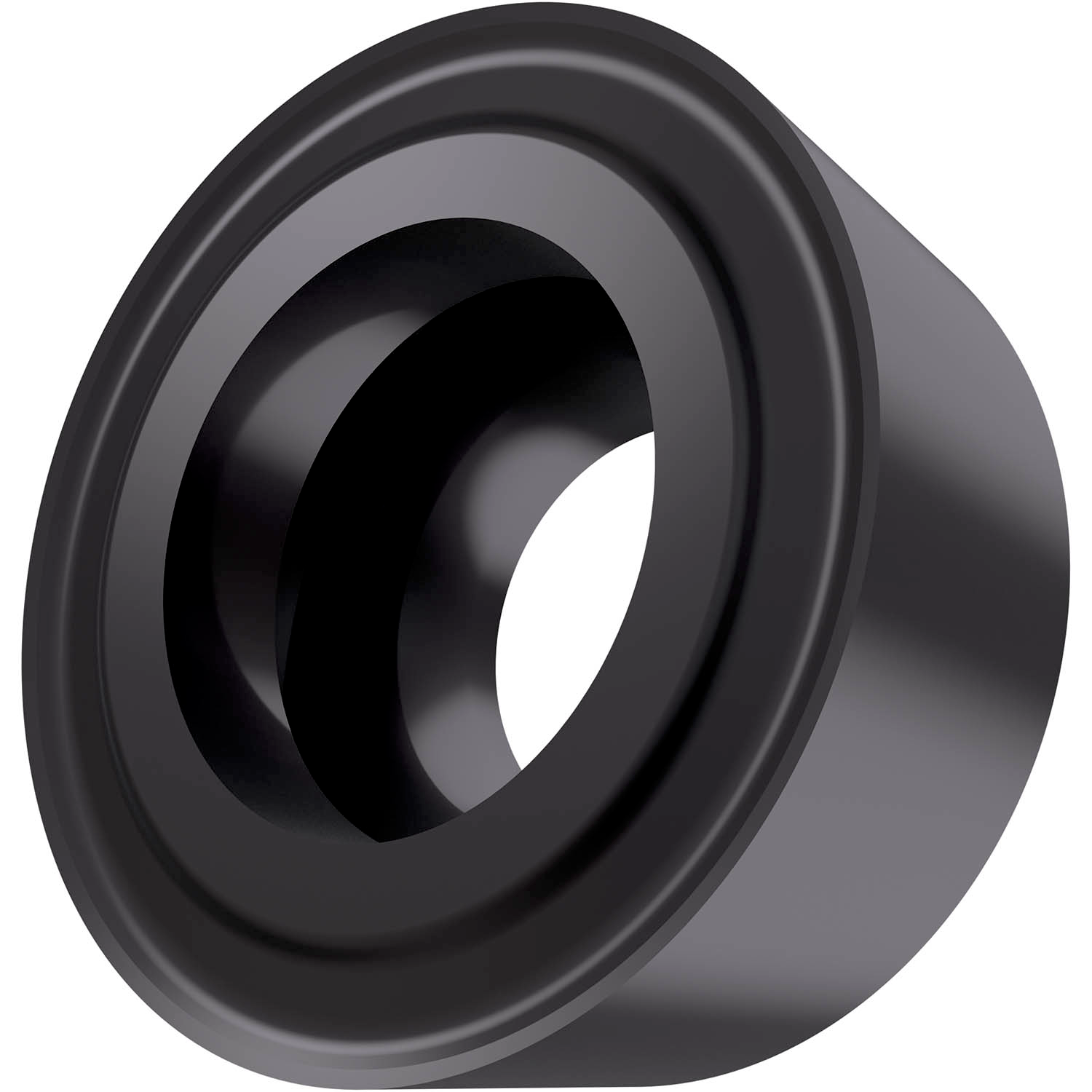

Single-sided positive turning insert, round with 7° clearance, a diameter of 12mm, 4.76mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 -P15 and K05 -K20, for fine to heavy machining of steels and cast-irons

Additional information

Weight 0.0191 kg
barcode
Additional Information

Description: Value
EAN number: 3603603172364
Product number (SAP): 80028475
Ordering code ANSI: RCMT 1204MOE-UR:T6310
Gross weight – grams: 5.645
Insert diameter – millimeter (INSD): 12 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T6310
Insert Clearance Code and Angle: C 7°
Insert Design: RCMT
Insert size: 12
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): UR
Insert shape code (SC): R – round
ISO: RCMT1204MOE-UR:T6310

Brand

PRAMET
