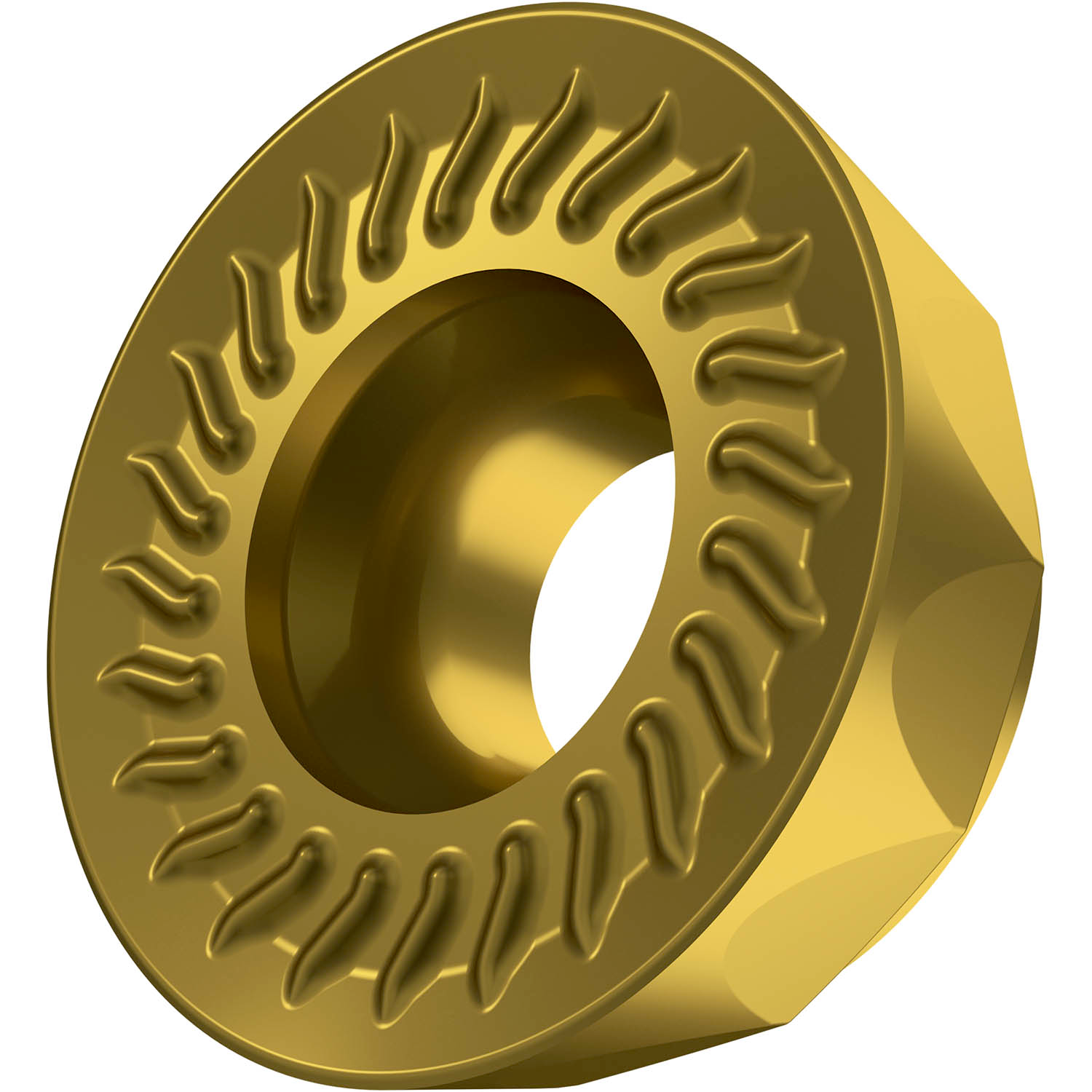

PRAMET RCMT 1204MOSN-M:M6330 Milling inserts for D&M

Product Code: RCMT 1204MOSN-M:M6330

$20.39$18.54 Ex. GST

Product Code: RCMT 1204MOSN-M:M6330 SKU RCMT 1204MOSN-M:M6330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert RCMT 1204 with chip-breakers, round for a maximum depth of cut of 6.0mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade ranges P20 -P35 and S20 -S30 for machining of steel and superalloy with copy face mills SRC12

Additional information

Weight 0.0198 kg
barcode
Additional Information

Description: Value
EAN number: 3603603074675
Product number (SAP): 80026486
Ordering code ANSI: RCMT 1204MOSN-M:M6330
Gross weight – grams: 4.893

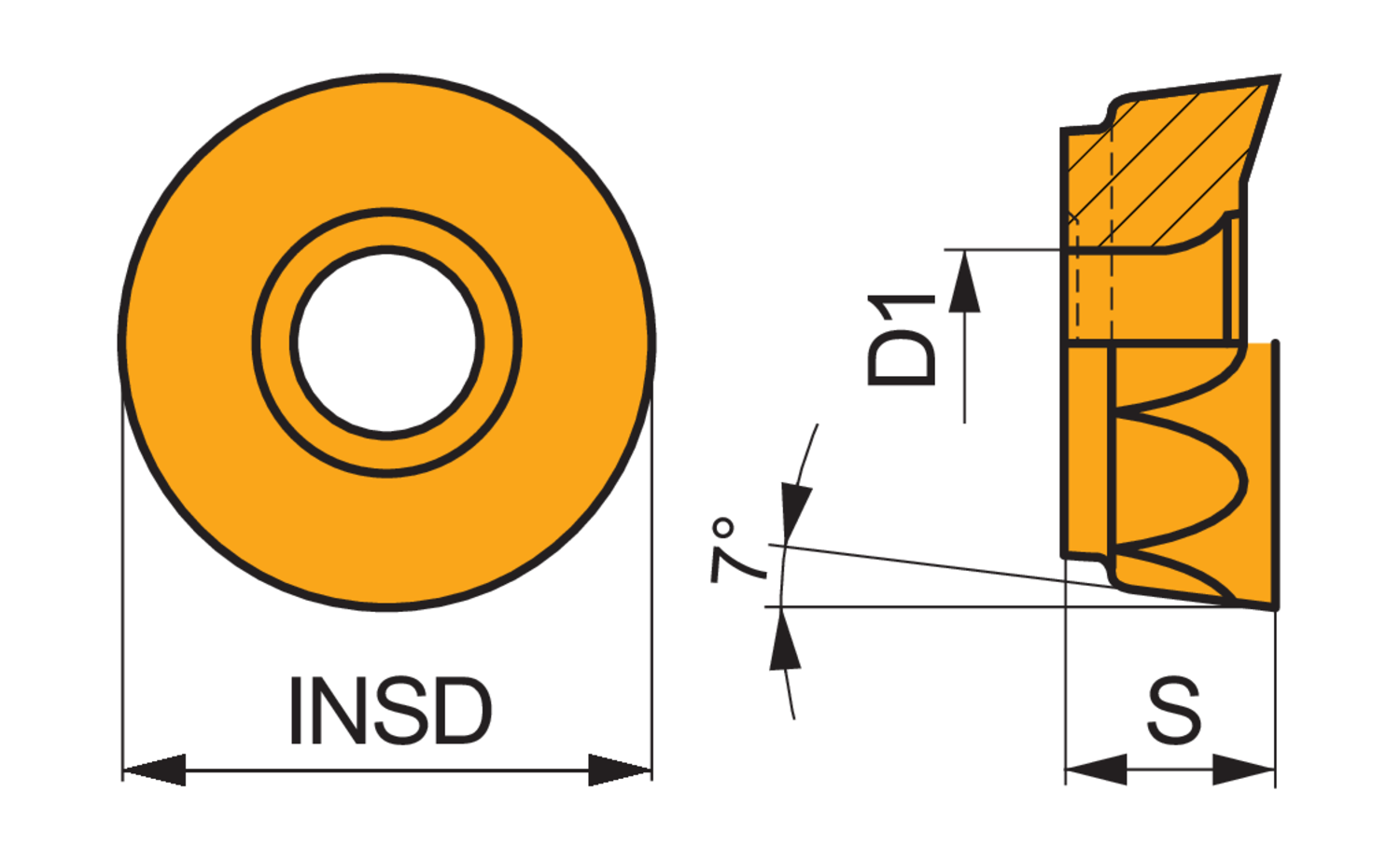

Insert diameter – millimeter (INSD): 12 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M6330
Insert Clearance Code and Angle: C 7°
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): R – round
ISO: RCMT1204MOSN-M:M6330

Brand

PRAMET
