PRAMET RCMT 1606MOE-RM3:T9415 Turning inserts positive

Product Code: RCMT 1606MOE-RM3:T9415

$39.31$35.74 Ex. GST

Product Code: RCMT 1606MOE-RM3:T9415 SKU RCMT 1606MOE-RM3:T9415 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

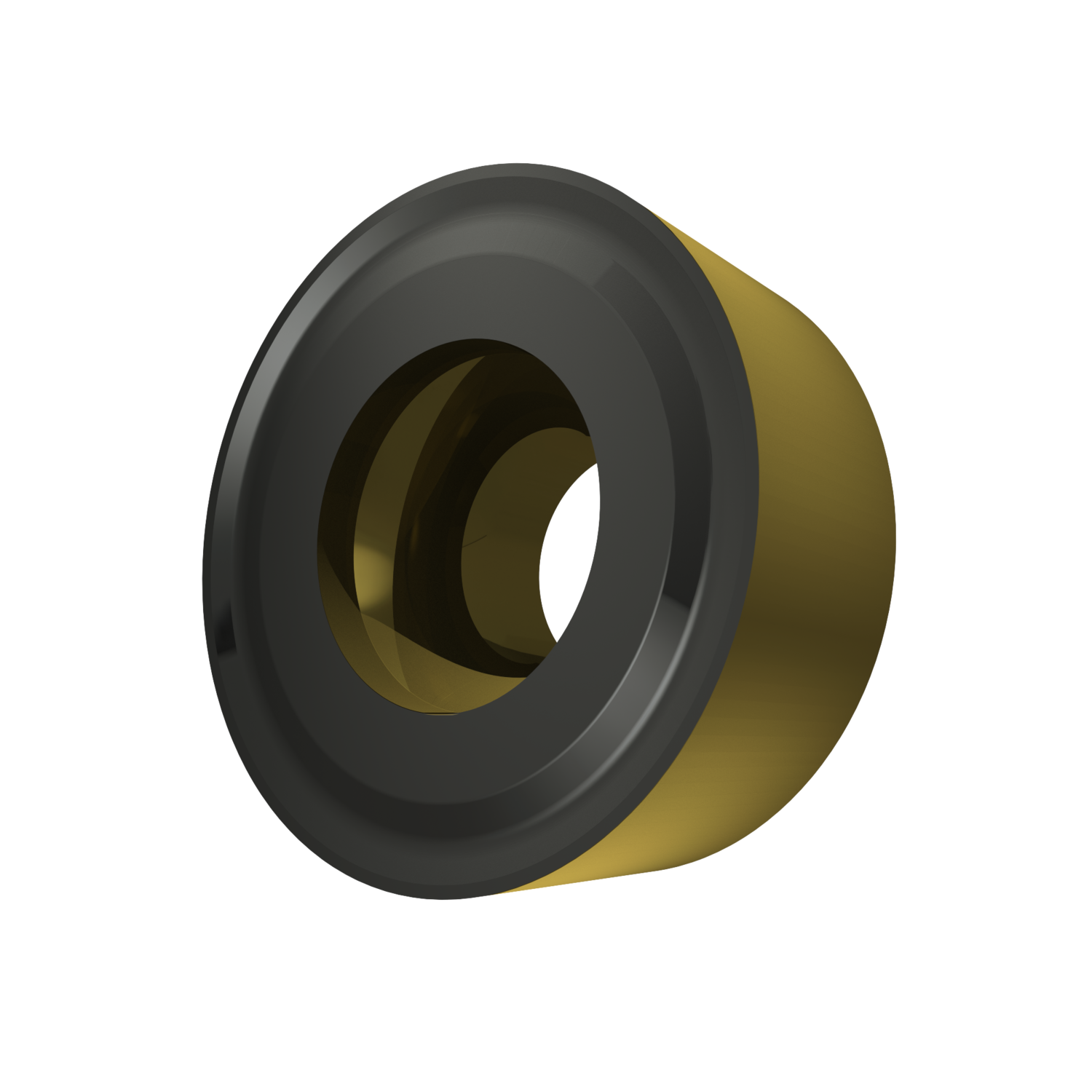

Single-sided positive turning insert, round with 7° clearance, a diameter of 16 mm, 6.35mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM3 with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for fine to heavy machining of steels

Additional information

Weight 0.0131 kg
barcode

3603604012393

Additional Information

Description: Value
EAN number: 3603604012393
Product number (SAP): 80034754
Ordering code ANSI: RCMT 1606MOE-RM3:T9415
Gross weight – grams: 14.52
Insert diameter – millimeter (INSD): 16 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T9415
Insert Clearance Code and Angle: C 7°
Insert Design: RCMT
Insert size: 16
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): RM3
Insert shape code (SC): R – round
ISO: RCMT1606MOE-RM3:T9415
