PRAMET RCMT 1606MOSN-R:M8330 Milling inserts for D&M

Product Code: RCMT 1606MOSN-R:M8330

$26.06$23.69 Ex. GST

Product Code: RCMT 1606MOSN-R:M8330 SKU RCMT 1606MOSN-R:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

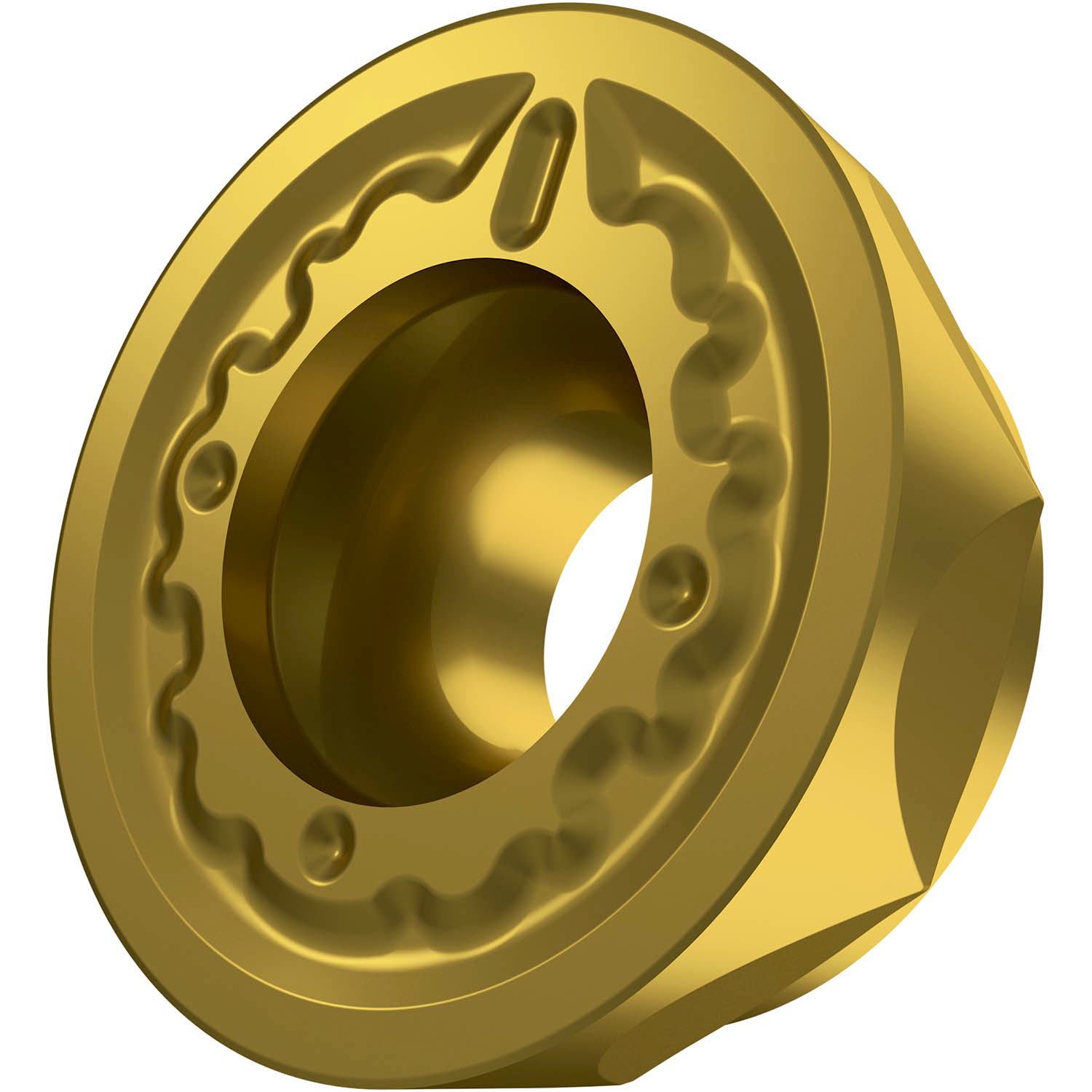

Single-sided milling insert RCMT 1606 with chip-breakers, round for a maximum depth of cut of 8.0mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron with copy face mills SRC16

Additional information

Weight 0.0253 kg
barcode
Additional Information

Description: Value
EAN number: 3603603386105
Product number (SAP): 80030137
Ordering code ANSI: RCMT 1606MOSN-R:M8330
Gross weight – grams: 12.464

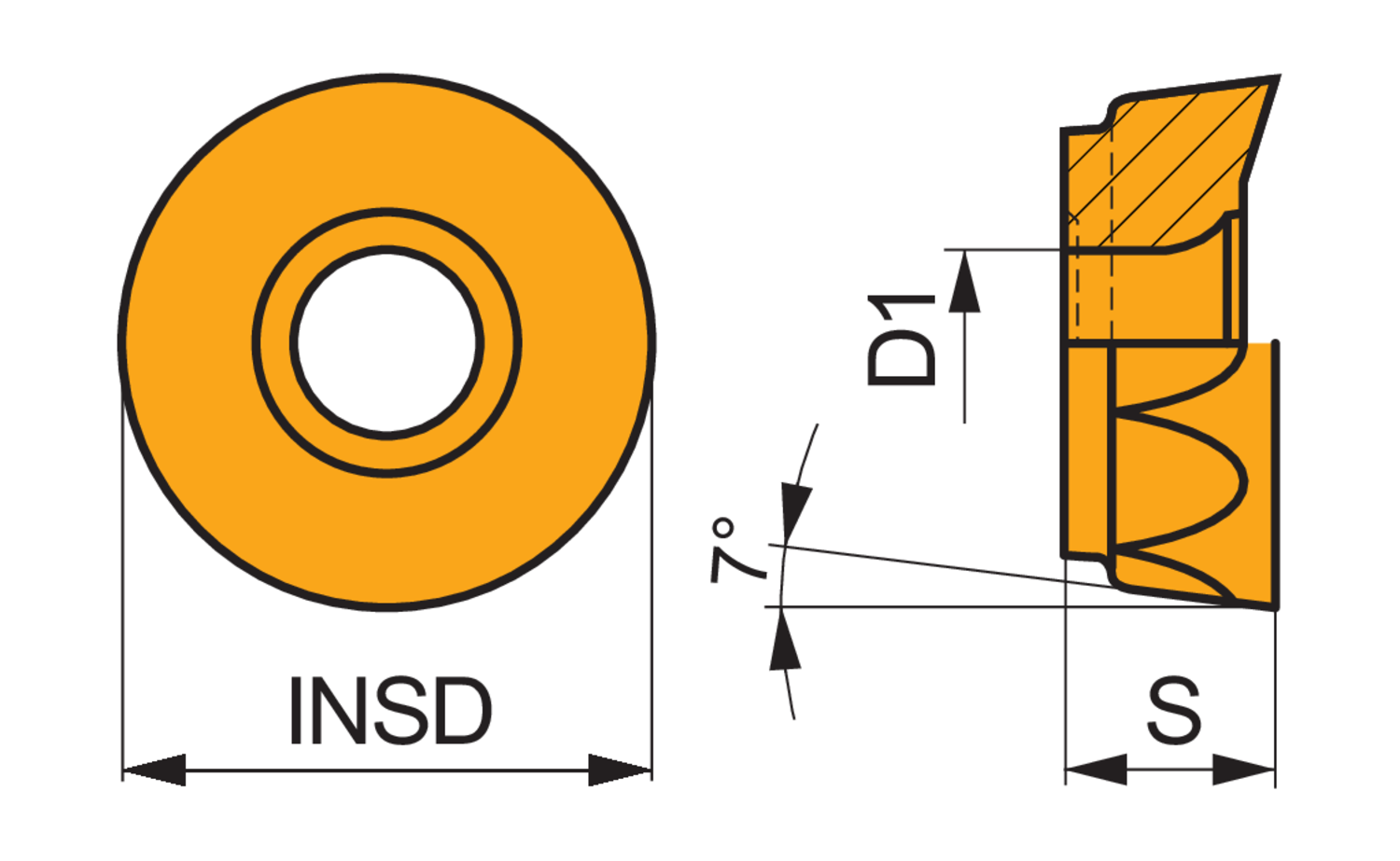

Insert diameter – millimeter (INSD): 16 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: M8330
Insert Clearance Code and Angle: C 7°
Insert Thickness: 06
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): R
Insert shape code (SC): R – round
ISO: RCMT1606MOSN-R:M8330

Brand

PRAMET
