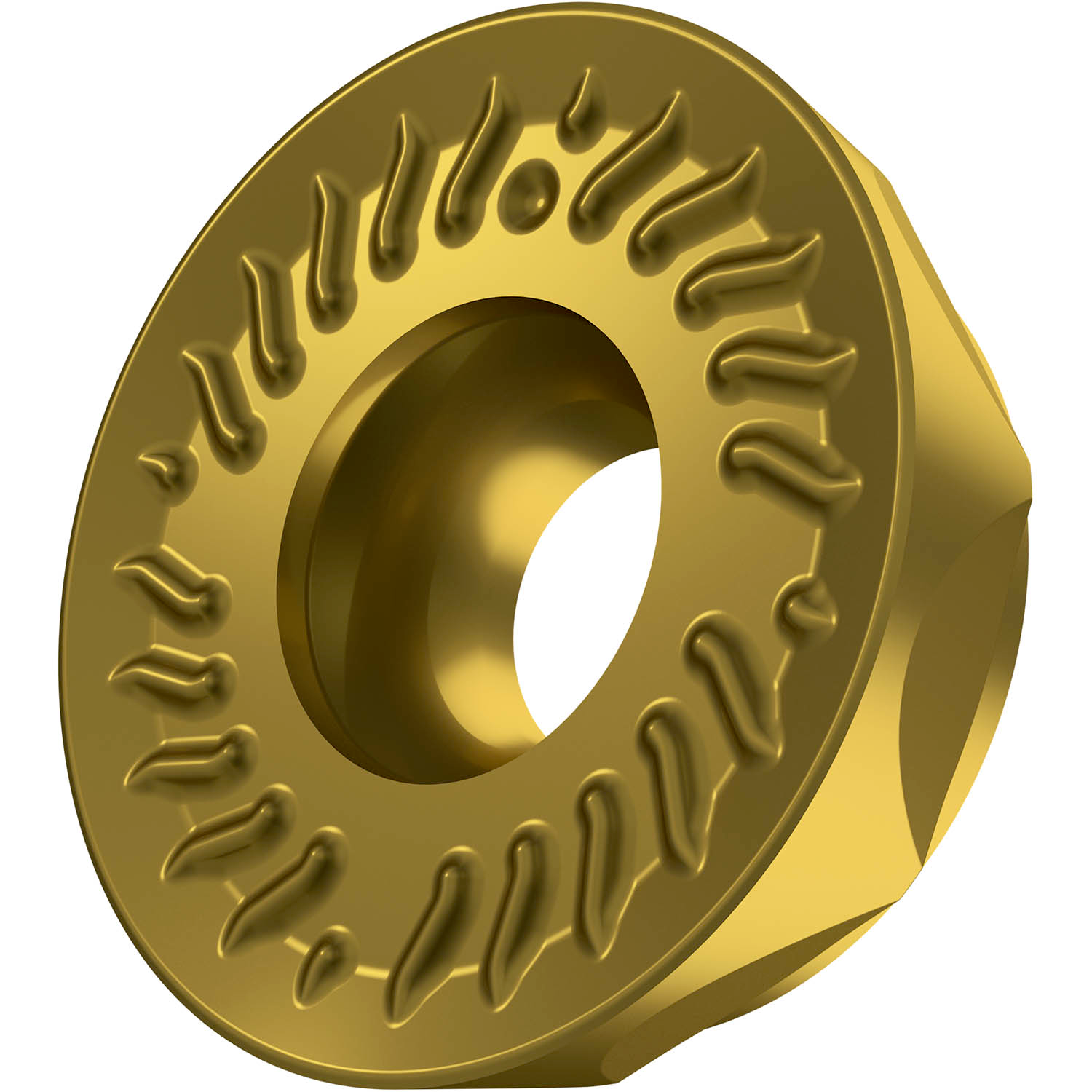

PRAMET RCMT 2006MOSN-M:M8330 Milling inserts for D&M

Product Code: RCMT 2006MOSN-M:M8330

$34.33$31.21 Ex. GST

Product Code: RCMT 2006MOSN-M:M8330 SKU RCMT 2006MOSN-M:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert RCMT 2006 with chip-breakers, round for a maximum depth of cut of 10.0mm, with an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron with copy face mills SRC20

Additional information

Weight 0.0333 kg
barcode
Additional Information

Description: Value
EAN number: 3603603386129
Product number (SAP): 80030139
Ordering code ANSI: RCMT 2006MOSN-M:M8330
Gross weight – grams: 19.499
Insert diameter – millimeter (INSD): 20 mm
Fixing hole diameter – millimeter (D1): 6.5 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: M8330
Insert Clearance Code and Angle: C 7°
Insert Thickness: 06
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): R – round
ISO: RCMT2006MOSN-M:M8330

Brand

PRAMET
