PRAMET RCMT 2006MOSN-R:M9325 Milling inserts for D&M

Product Code: RCMT 2006MOSN-R:M9325

$34.33$31.21 Ex. GST

Product Code: RCMT 2006MOSN-R:M9325 SKU RCMT 2006MOSN-R:M9325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

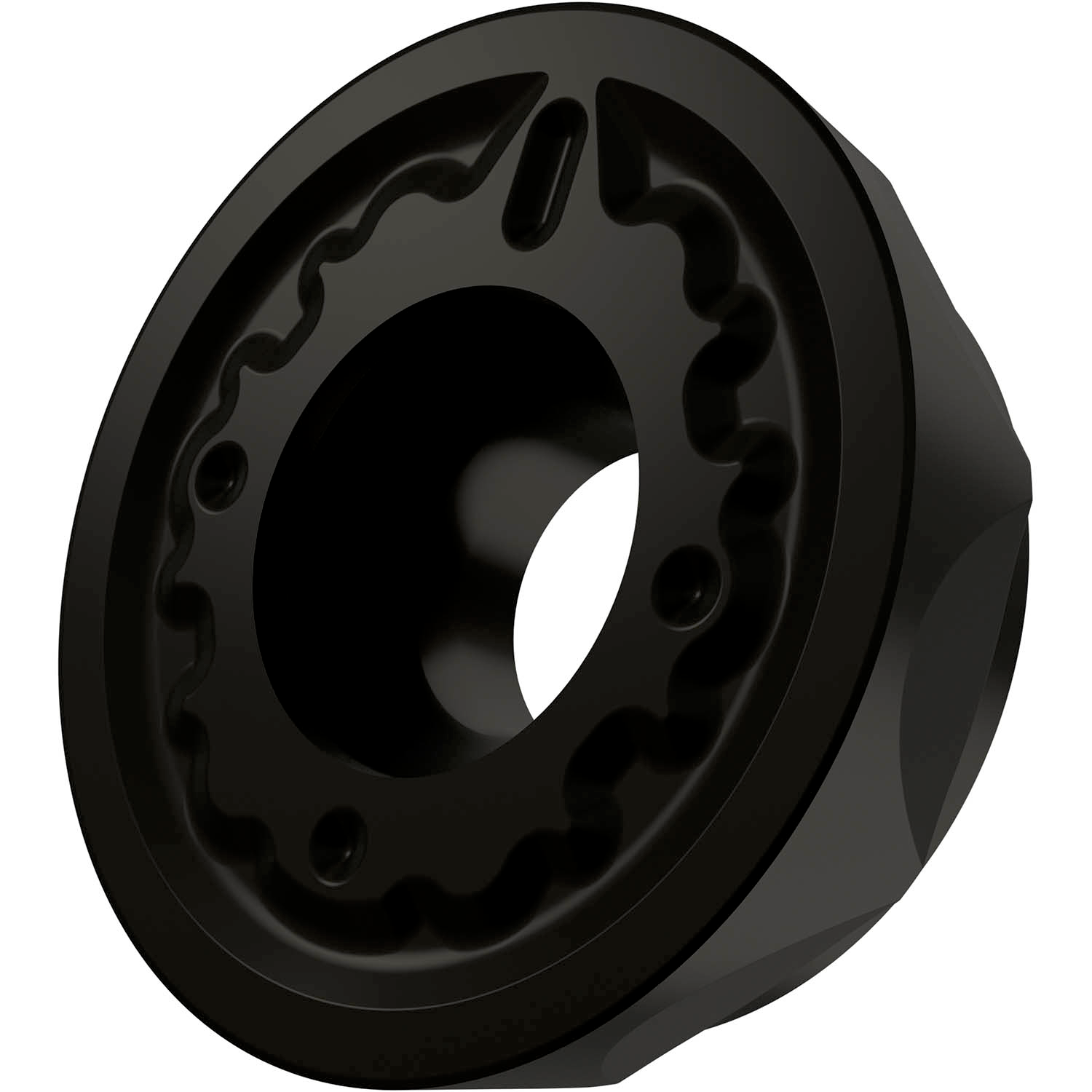

Single-sided milling insert RCMT 2006 with chip-breakers, round for a maximum depth of cut of 10.0mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide within ISO-grade ranges P10 -P30 and K10 -K30 for machining of steel and cast-iron with copy face mills SRC20

Additional information

Weight 0.0333 kg
barcode
Additional Information

Description: Value
EAN number: 3603603072848
Product number (SAP): 80026138
Ordering code ANSI: RCMT 2006MOSN-R:M9325
Gross weight – grams: 21.072
Insert diameter – millimeter (INSD): 20 mm
Fixing hole diameter – millimeter (D1): 6.5 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: M9325
Insert Clearance Code and Angle: C 7°
Insert Thickness: 06
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): R
Insert shape code (SC): R – round
ISO: RCMT2006MOSN-R:M9325

Brand

PRAMET
