PRAMET RCMX 1606MOS-331:T9415 Turning inserts negative

Product Code: RCMX 1606MOS-331:T9415

$35.46$32.24 Ex. GST

Product Code: RCMX 1606MOS-331:T9415 SKU RCMX 1606MOS-331:T9415 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

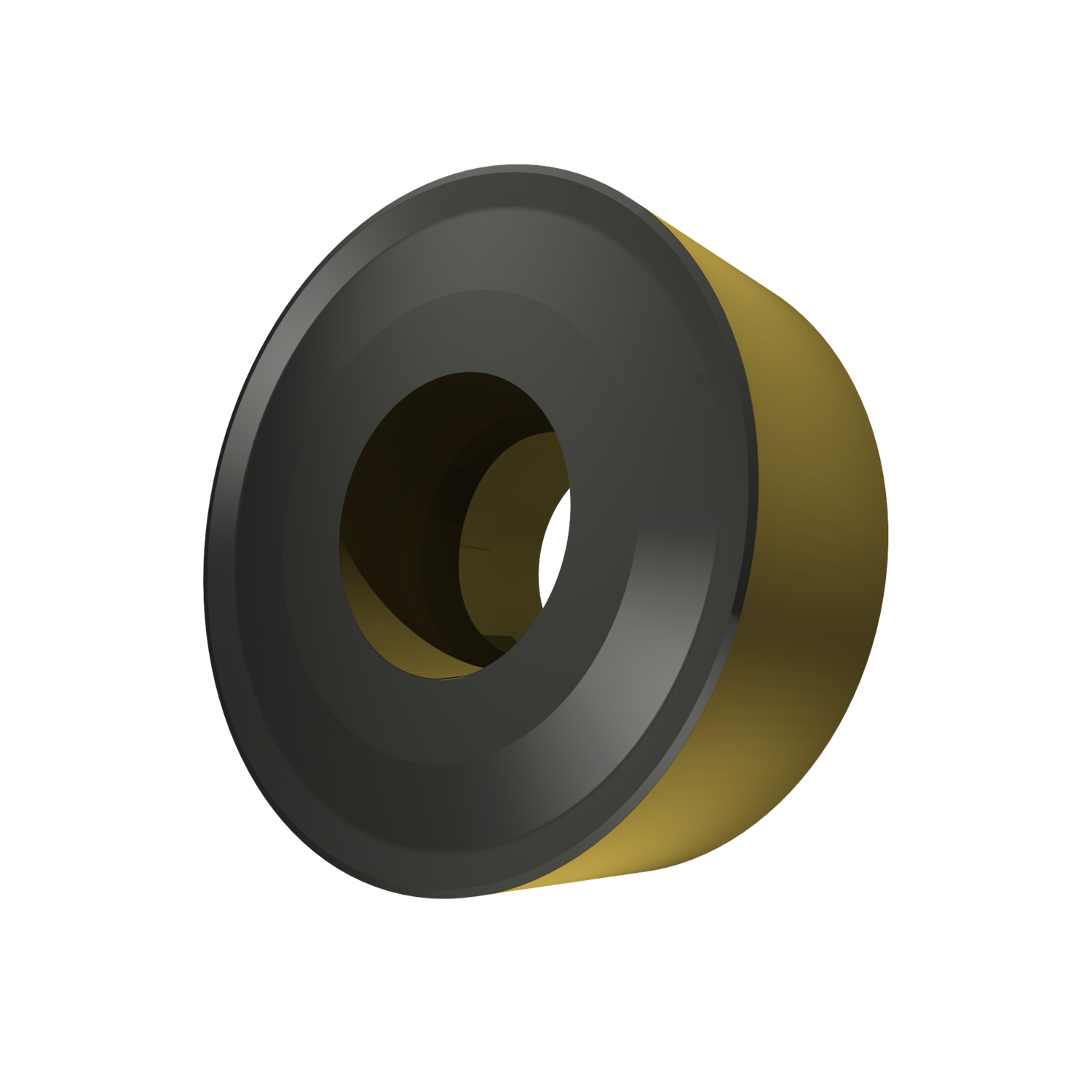

Special design positive turning insert, round with 7° clearance, a diameter of 16 mm, 6.35mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker 331 with rounded cutting edges with facet, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for heavy to medium machining of steels

Additional information

Weight 0.0160 kg
barcode

3603604012416

Additional Information

Description: Value
EAN number: 3603604012416
Product number (SAP): 80034756
Ordering code ANSI: RCMX 1606MOS-331:T9415
Gross weight – grams: 15.991
Insert diameter – millimeter (INSD): 16 mm
Fixing hole diameter – millimeter (D1): 5.2 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T9415
Insert Clearance Code and Angle: C 7°
Insert Design: RCMX
Insert size: 16
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): 331
Insert shape code (SC): R – round
ISO: RCMX1606MOS-331:T9415
