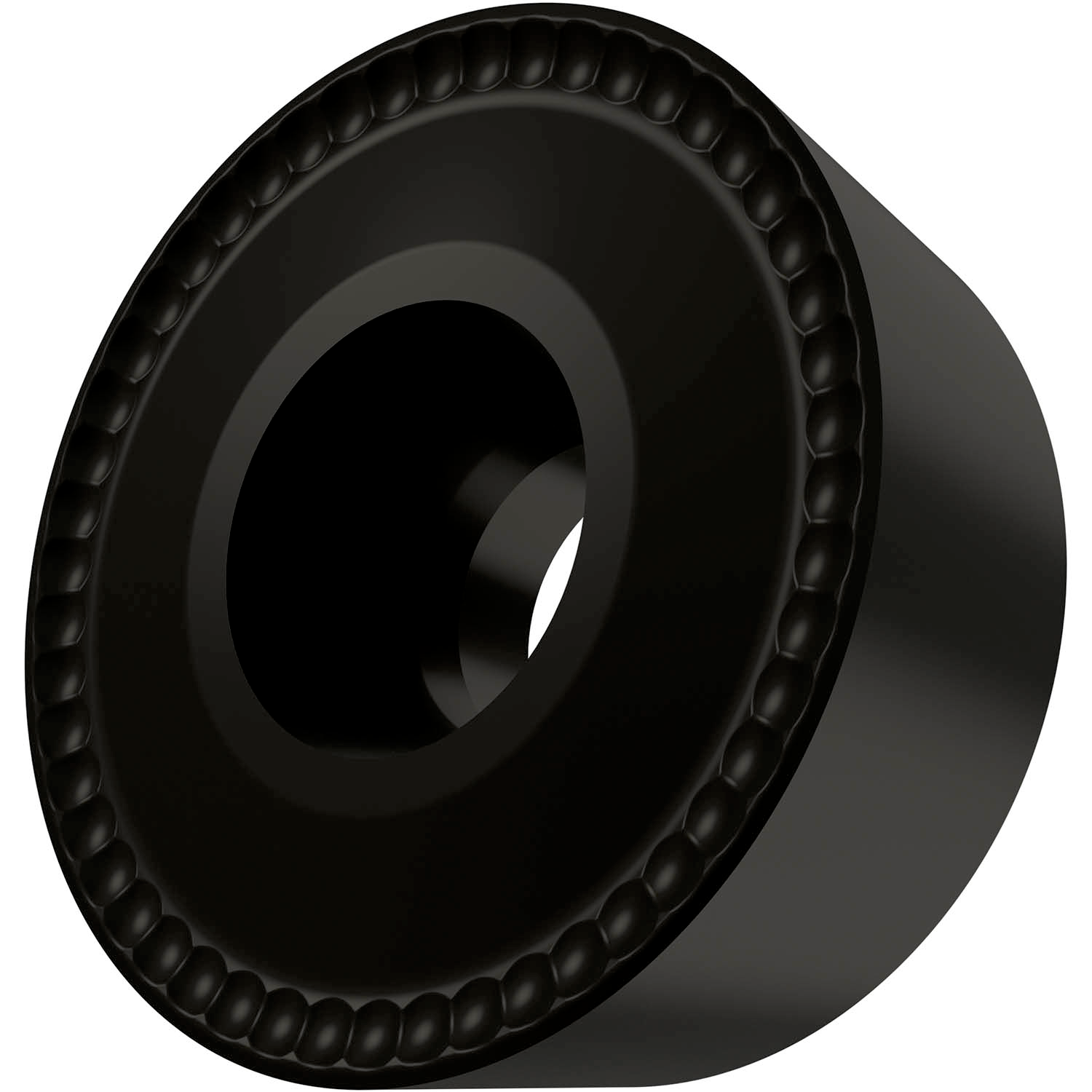

PRAMET RCMX 1606MOS-37:T9325 Turning inserts negative

Product Code: RCMX 1606MOS-37:T9325

$32.86$29.87 Ex. GST

Product Code: RCMX 1606MOS-37:T9325 SKU RCMX 1606MOS-37:T9325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Special design positive turning insert, round with 7° clearance, a diameter of 16mm, 6.35mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker 37 with rounded cutting edges with facet, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 -P35, for medium to fine machining of steels

Additional information

Weight 0.0319 kg
barcode
Additional Information

Description: Value
EAN number: 3603602893574
Product number (SAP): 80016059
Ordering code ANSI: RCMX 1606MOS-37:T9325
Gross weight – grams: 13.567
Insert diameter – millimeter (INSD): 16 mm
Fixing hole diameter – millimeter (D1): 5.2 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T9325
Insert Clearance Code and Angle: C 7°
Insert Design: RCMX
Insert size: 16
Insert Thickness: 06
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): 37
Insert shape code (SC): R – round
ISO: RCMX1606MOS-37:T9325

Brand

PRAMET
