PRAMET RCMX 2006MO-RF1:T9335 Turning inserts negative

Product Code: RCMX 2006MO-RF1:T9335

$41.69$37.90 Ex. GST

Product Code: RCMX 2006MO-RF1:T9335 SKU RCMX 2006MO-RF1:T9335 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

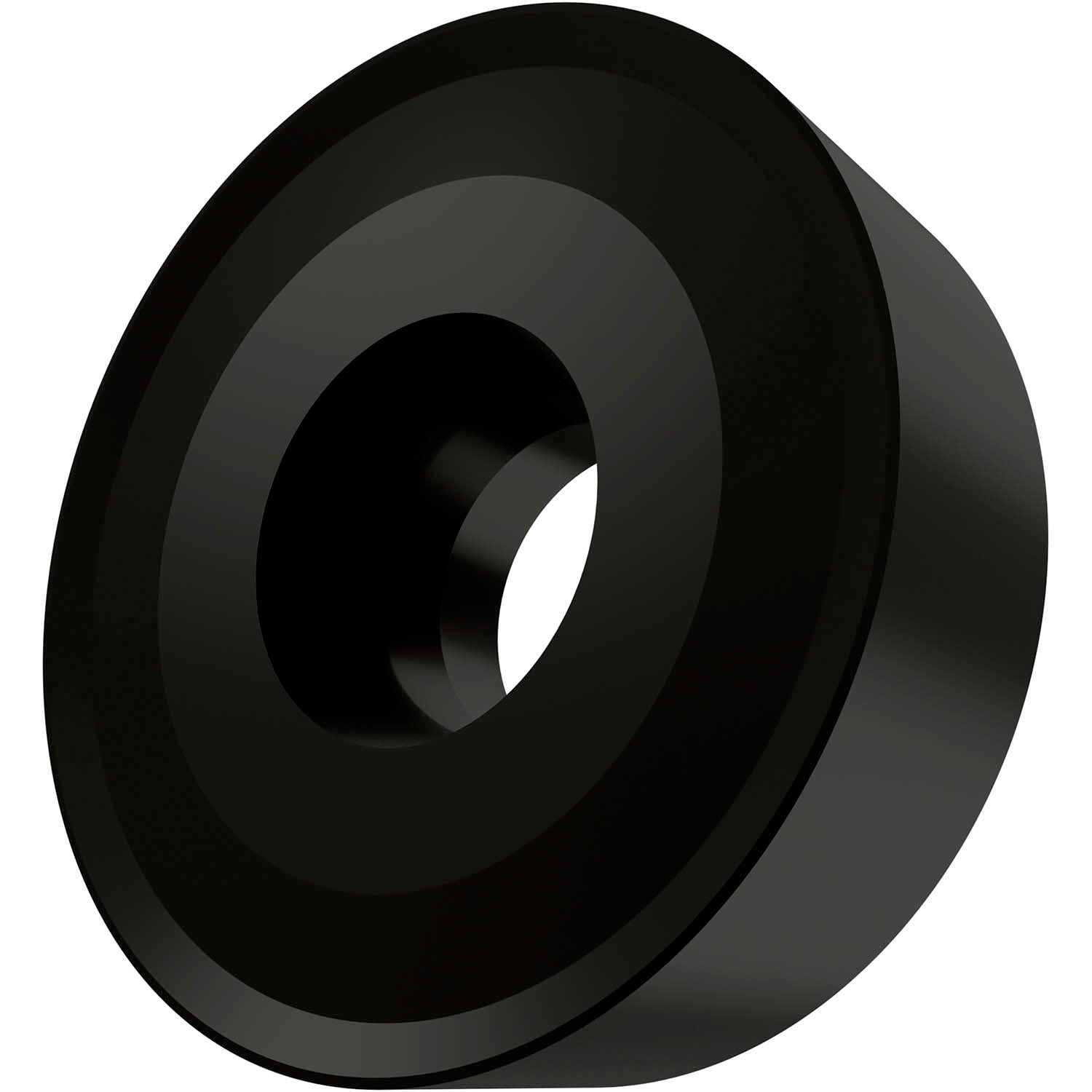

Special design positive turning insert, round with 7° clearance, a diameter of 20 mm, 6.35mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF1, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for heavy to medium machining of steels

Additional information

Weight 0.0405 kg
barcode
Additional Information

Description: Value
EAN number: 3603602902870
Product number (SAP): 80017259
Ordering code ANSI: RCMX 2006MO-RF1:T9335
Gross weight – grams: 21.385
Insert diameter – millimeter (INSD): 20 mm
Fixing hole diameter – millimeter (D1): 6.5 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T9335
Insert Clearance Code and Angle: C 7°
Insert Design: RCMX
Insert size: 20
Insert Thickness: 06
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): RF1
Insert shape code (SC): R – round
ISO: RCMX2006MO-RF1:T9335

Brand

PRAMET
