PRAMET RCMX 2006MO-RM1:T9415 Turning inserts negative

Product Code: RCMX 2006MO-RM1:T9415

$44.98$40.89 Ex. GST

Product Code: RCMX 2006MO-RM1:T9415 SKU RCMX 2006MO-RM1:T9415 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

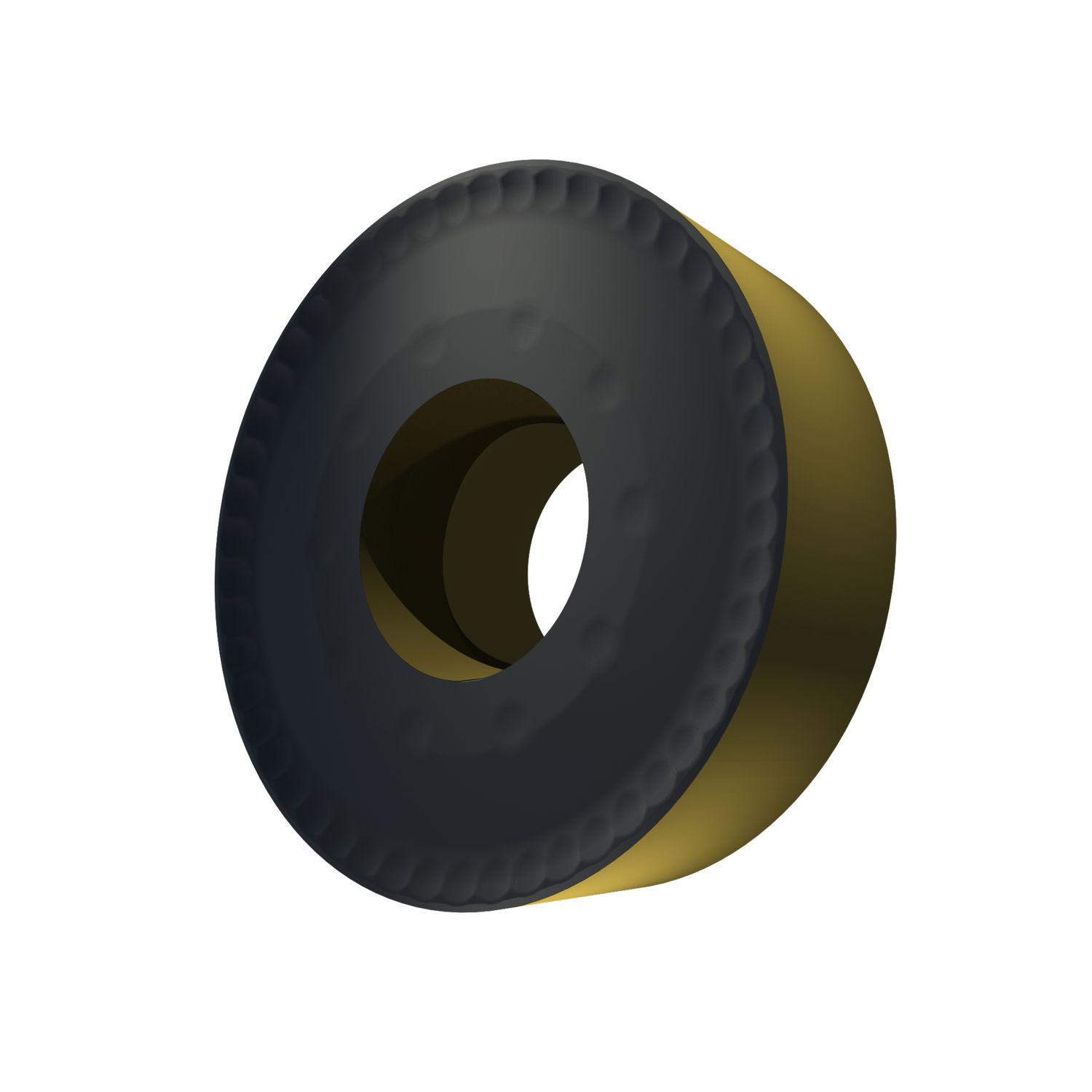

Special design positive turning insert, round with 7° clearance, a diameter of 20 mm, 6.35mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM1, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for heavy to medium machining of steels

Additional information

Weight 0.0219 kg
barcode

3603603953635

Additional Information

Description: Value
EAN number: 3603603953635
Product number (SAP): 80034390
Ordering code ANSI: RCMX 2006MO-RM1:T9415
Gross weight – grams: 21.889
Insert diameter – millimeter (INSD): 20 mm
Fixing hole diameter – millimeter (D1): 6.5 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T9415
Insert Clearance Code and Angle: C 7°
Insert Design: RCMX
Insert size: 20
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): RM1
Insert shape code (SC): R – round
ISO: RCMX2006MO-RM1:T9415
