PRAMET RCMX 2507MO-RM1:T9315 Turning inserts negative

Product Code: RCMX 2507MO-RM1:T9315

$78.75$71.59 Ex. GST

Product Code: RCMX 2507MO-RM1:T9315 SKU RCMX 2507MO-RM1:T9315 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

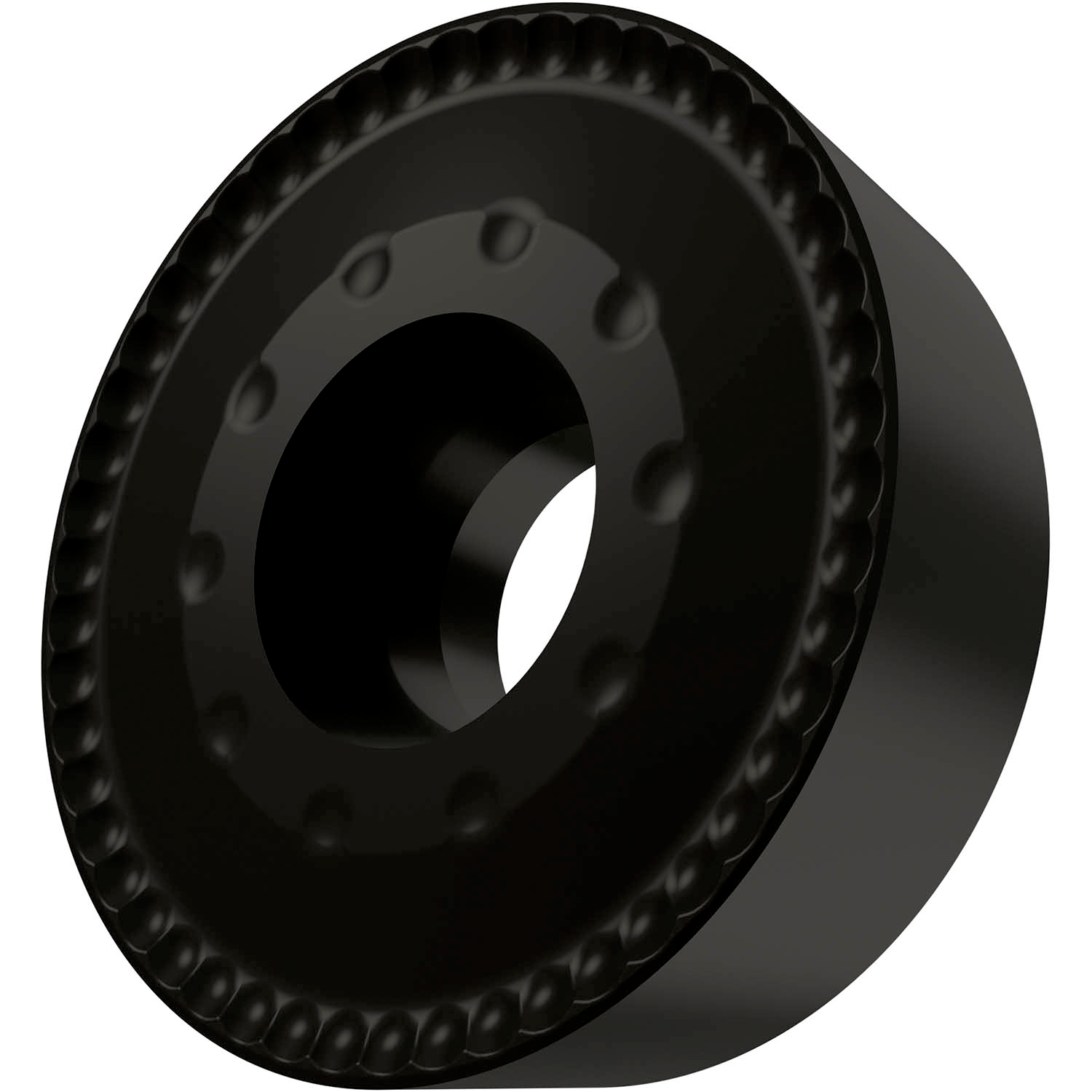

Special design positive turning insert, round with 7° clearance, a diameter of 25mm, 7.94mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM1, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P25, for heavy to medium machining of steels

Additional information

Weight 0.0765 kg
barcode
Additional Information

Description: Value
EAN number: 3603602909527
Product number (SAP): 80022364
Ordering code ANSI: RCMX 2507MO-RM1:T9315
Gross weight – grams: 46.72
Insert diameter – millimeter (INSD): 25 mm
Fixing hole diameter – millimeter (D1): 7.2 mm
Insert thickness – millimeter (S): 7.94 mm
Grade: T9315
Insert Clearance Code and Angle: C 7°
Insert Design: RCMX
Insert size: 25
Insert Thickness: 07
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): RM1
Insert shape code (SC): R – round
ISO: RCMX2507MO-RM1:T9315

Brand

PRAMET
