PRAMET RDGT 0702MOT:M8345 Milling inserts for D&M

Product Code: RDGT 0702MOT:M8345

$18.92$17.20 Ex. GST

Product Code: RDGT 0702MOT:M8345 SKU RDGT 0702MOT:M8345 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

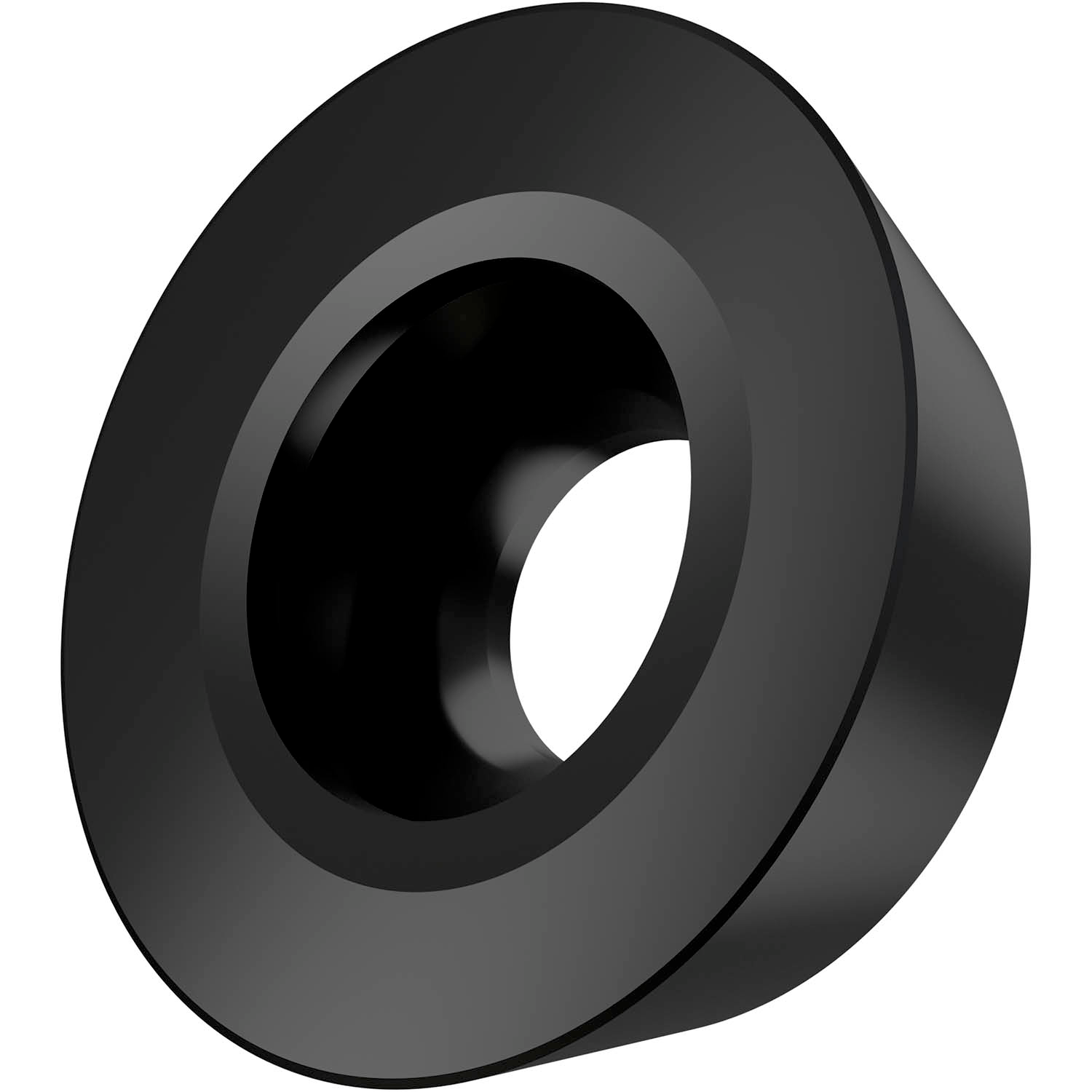

Single-sided milling insert RDGT 0702 with chip-breakers, round for a maximum depth of cut of 2.0mm, with an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with copy face mills SRD07

Additional information

Weight 0.0184 kg
barcode
Additional Information

Description: Value
EAN number: 3603602913128
Product number (SAP): 80023185
Ordering code ANSI: RDGT 0702MOT:M8345
Gross weight – grams: 1.88
Insert diameter – millimeter (INSD): 7 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Insert thickness – millimeter (S): 2.38 mm
Grade: M8345
Insert Clearance Code and Angle: D 15°
Insert Thickness: 02
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Insert shape code (SC): R – round
ISO: RDGT0702MOT:M8345

Brand

PRAMET
