PRAMET RDGT 1003MOT:M8345 Milling inserts for D&M

Product Code: RDGT 1003MOT:M8345

$20.39$18.54 Ex. GST

Product Code: RDGT 1003MOT:M8345 SKU RDGT 1003MOT:M8345 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

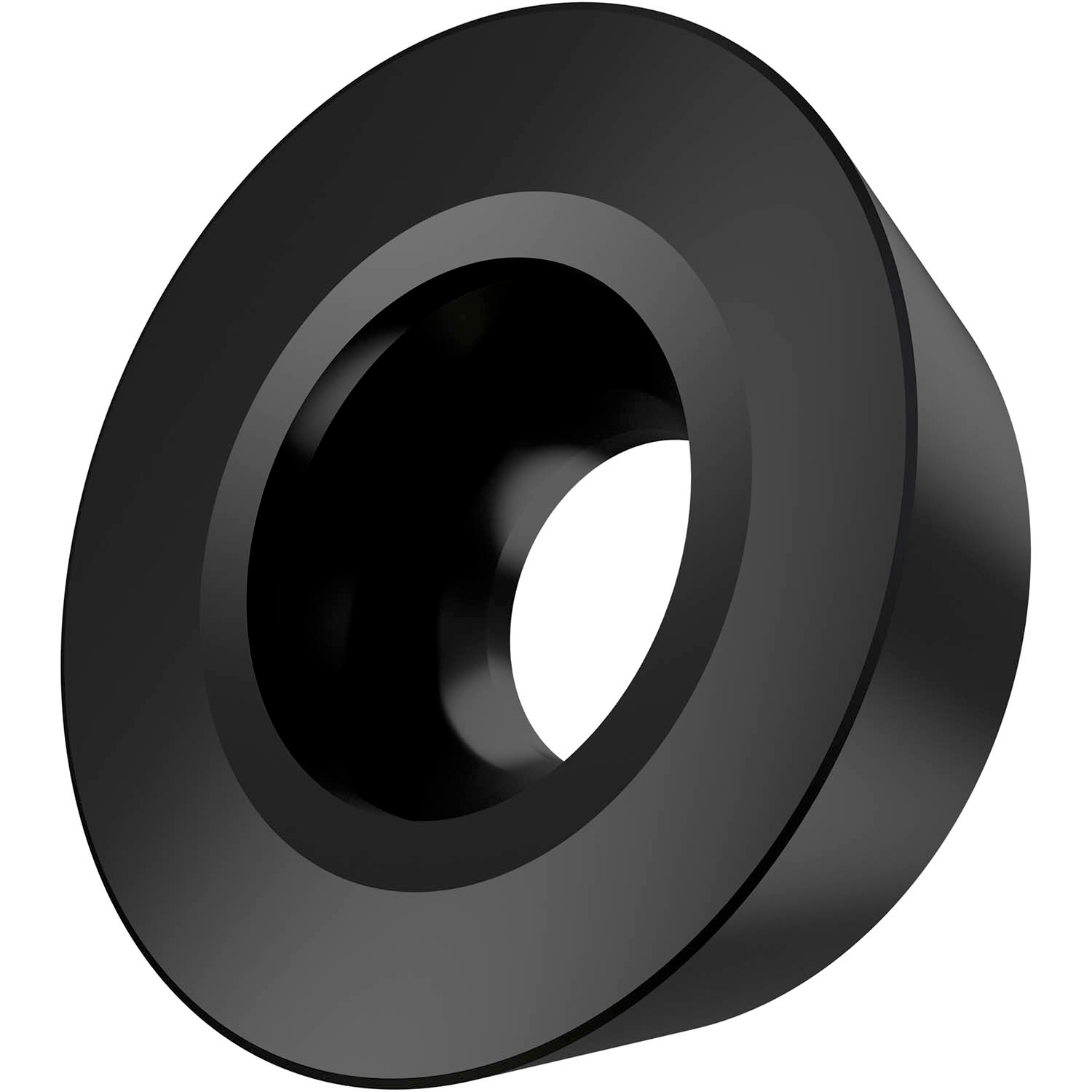

Single-sided milling insert RDGT 1003 with chip-breakers, round for a maximum depth of cut of 2.5mm, with an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30 -M40 for machining of steel and stainless-steel with copy face mills SRD10

Additional information

Weight 0.0198 kg
barcode
Additional Information

Description: Value
EAN number: 3603602913289
Product number (SAP): 80023203
Ordering code ANSI: RDGT 1003MOT:M8345
Gross weight – grams: 3.08
Insert diameter – millimeter (INSD): 10 mm
Fixing hole diameter – millimeter (D1): 3.9 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: M8345
Insert Clearance Code and Angle: D 15°
Insert Thickness: 03
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Insert shape code (SC): R – round
ISO: RDGT1003MOT:M8345

Brand

PRAMET
