PRAMET RDGT 120500SN-FM:M8345 Milling – other and drilling inserts clamped by screw

Product Code: RDGT 120500SN-FM:M8345

$23.00$20.91 Ex. GST

Product Code: RDGT 120500SN-FM:M8345 SKU RDGT 120500SN-FM:M8345 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

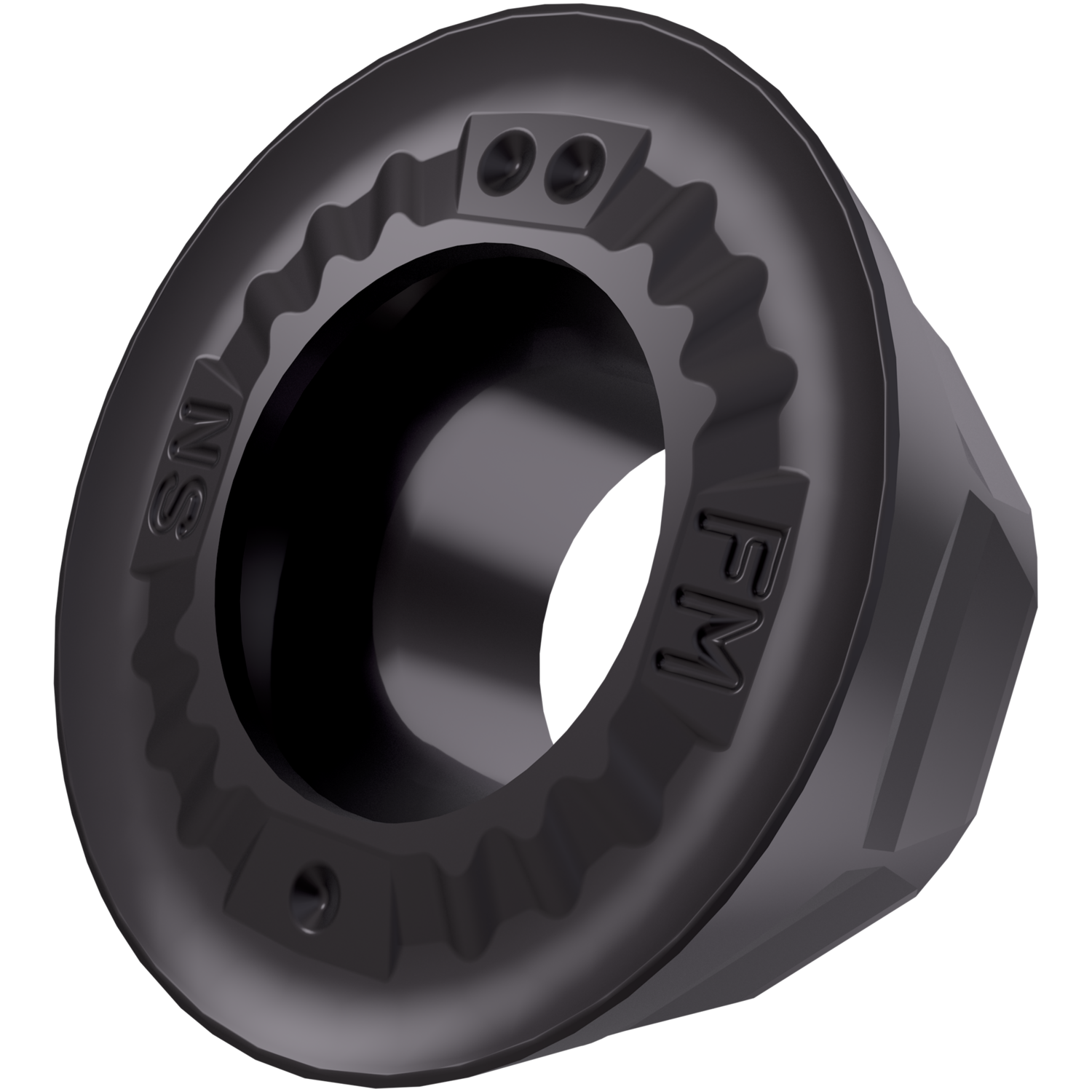

Single-sided milling insert RDGT 1205 with chip-breakers, round for a maximum depth of cut of 6.0mm, with an indexing accuracy according to ISO-tolerance class-G and FM geometry with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with copy face mills SOD05

Additional information

Weight 0.0223 kg
barcode
Additional Information

Description: Value
EAN number: 3603603288232
Product number (SAP): 80029424
Ordering code ANSI: RDGT 120500SN-FM:M8345
Gross weight – grams: 5.341
Insert diameter – millimeter (INSD): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Insert thickness – millimeter (S): 5.56 mm
Grade: M8345
Insert Clearance Code and Angle: D 15°
Insert Thickness: 05
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FM
Insert shape code (SC): R – round
ISO: RDGT120500SN-FM:M8345

Brand

PRAMET
