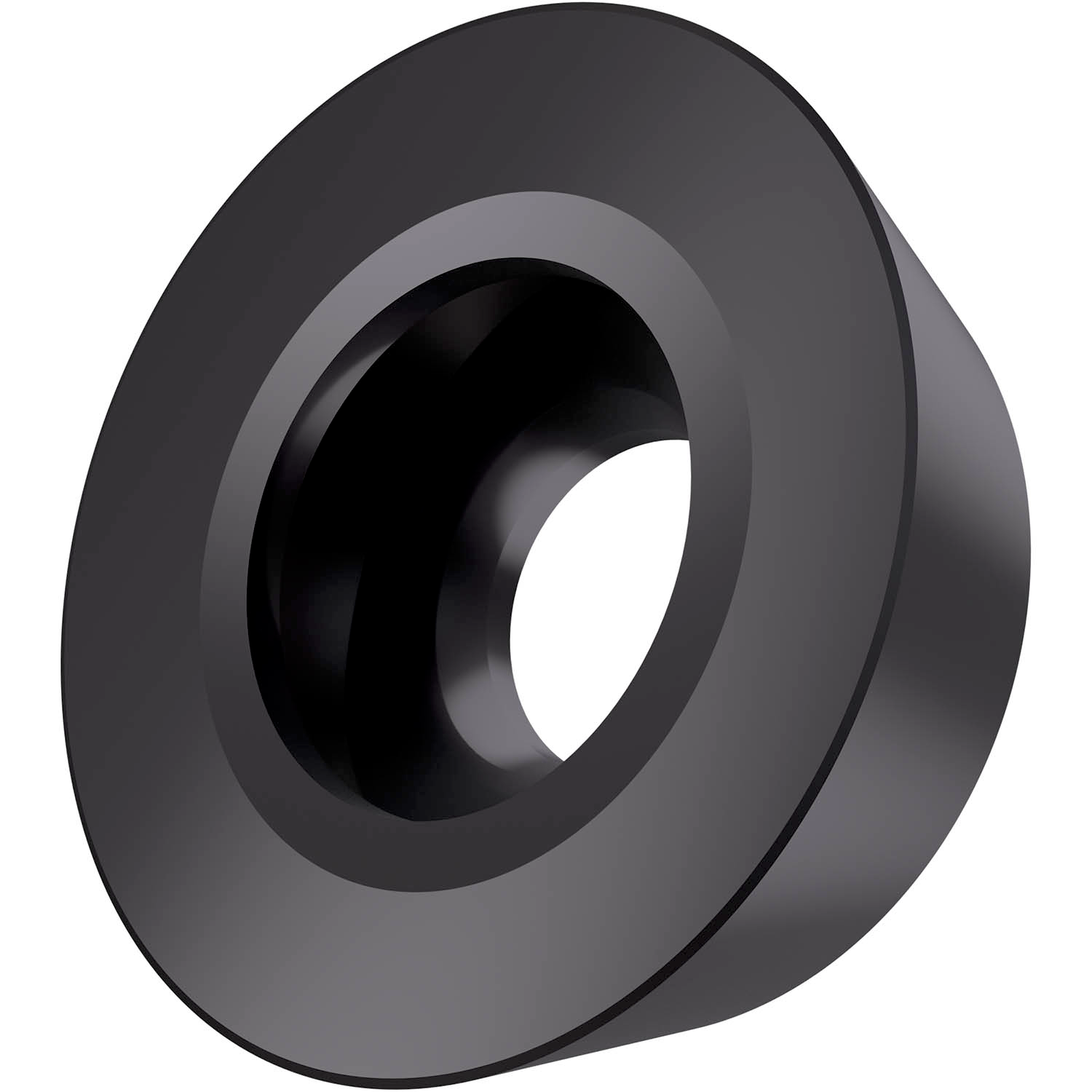

PRAMET RDGT 12T3MOT:M8325 Milling inserts for D&M

Product Code: RDGT 12T3MOT:M8325

$23.00$20.91 Ex. GST

Product Code: RDGT 12T3MOT:M8325 SKU RDGT 12T3MOT:M8325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert RDGT 12T3 with chip-breakers, round for a maximum depth of cut of 3.0mm, with an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide within ISO-grade range P20 -P40 for machining of steel with copy face mills SRD12

Additional information

Weight 0.0223 kg
barcode
Additional Information

Description: Value
EAN number: 3603602913678
Product number (SAP): 80023266
Ordering code ANSI: RDGT 12T3MOT:M8325
Gross weight – grams: 4.28
Insert diameter – millimeter (INSD): 12 mm
Fixing hole diameter – millimeter (D1): 3.9 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: M8325
Insert Clearance Code and Angle: D 15°
Insert Thickness: T3
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Insert shape code (SC): R – round
ISO: RDGT12T3MOT:M8325

Brand

PRAMET
