PRAMET RDHT 1003MO-FA:HF7 Milling inserts – geometry FA

Product Code: RDHT 1003MO-FA:HF7

$21.98$19.98 Ex. GST

Product Code: RDHT 1003MO-FA:HF7 SKU RDHT 1003MO-FA:HF7 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert RDHT 1003 with chip-breakers, round for a maximum depth of cut of 2.5mm, with an indexing accuracy according to ISO-tolerance class-H and FA geometry, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10 -N25 for machining of non-ferrous metal with copy face mills SRD10

Additional information

Weight 0.0213 kg
barcode
Additional Information

Description: Value
EAN number: 3603602872173
Product number (SAP): 80002762
Ordering code ANSI: RDHT 1003MO-FA:HF7
Gross weight – grams: 4.04

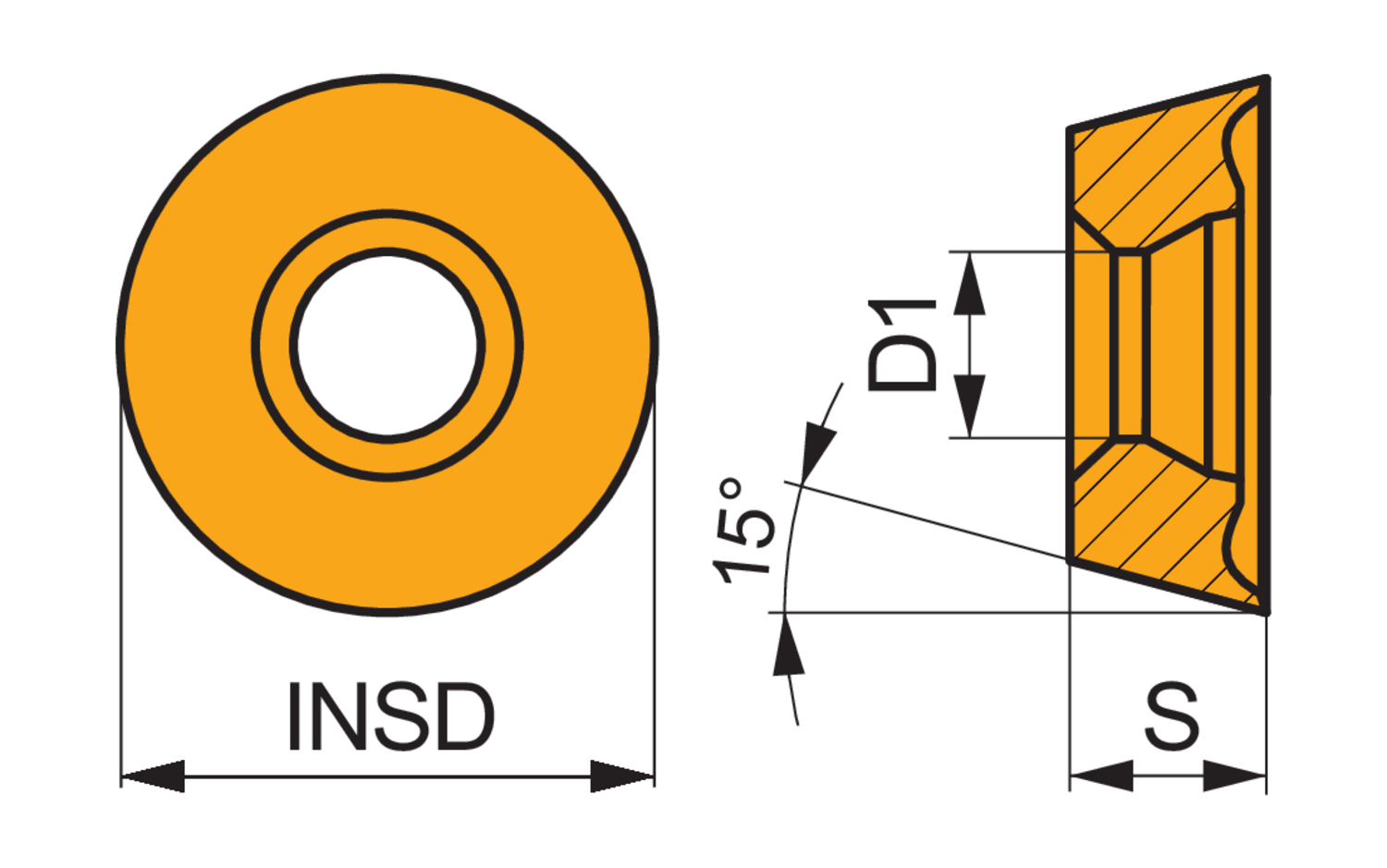

Insert diameter – millimeter (INSD): 10 mm
Fixing hole diameter – millimeter (D1): 3.9 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: HF7
Insert Clearance Code and Angle: D 15°
Insert Thickness: 03
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FA
Insert shape code (SC): R – round
ISO: RDHT1003MO-FA:HF7

Brand

PRAMET
