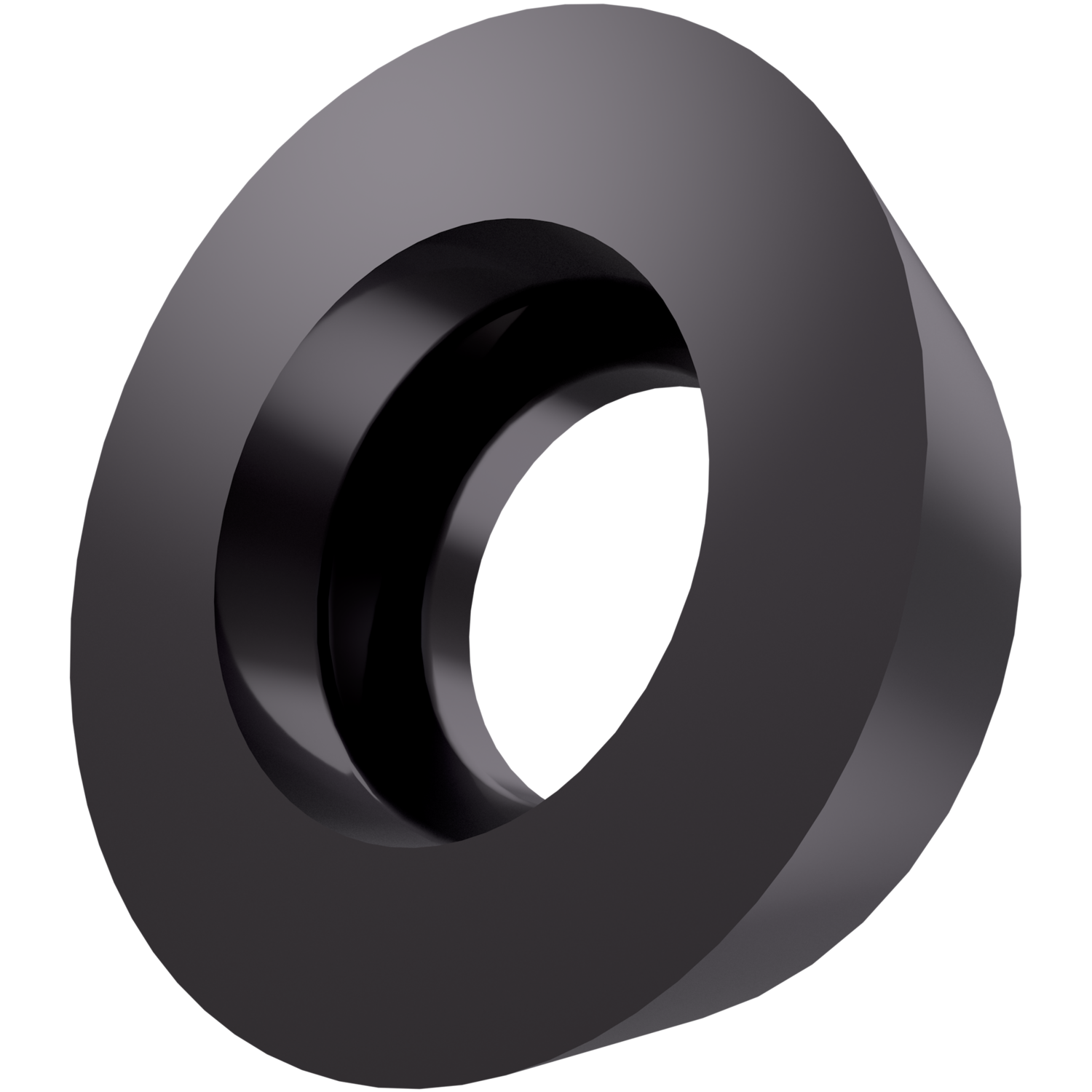

PRAMET RDHX 0501MOE:M8310 Milling inserts for D&M

Product Code: RDHX 0501MOE:M8310

$17.23$15.66 Ex. GST

Product Code: RDHX 0501MOE:M8310 SKU RDHX 0501MOE:M8310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert RDHX 0501, round for a maximum depth of cut of 1.5mm, with an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01 -K10 and H05 -H15 for machining of cast-iron and hardened material with copy face mills SRD05

Additional information

Weight 0.0167 kg
barcode
Additional Information

Description: Value
EAN number: 3603602916471
Product number (SAP): 80023662
Ordering code ANSI: RDHX 0501MOE:M8310
Gross weight – grams: 0.25
Insert diameter – millimeter (INSD): 5 mm
Fixing hole diameter – millimeter (D1): 2.2 mm
Insert thickness – millimeter (S): 1.51 mm
Grade: M8310
Insert Clearance Code and Angle: D 15°
Insert Thickness: 01
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): R – round
ISO: RDHX0501MOE:M8310

Brand

PRAMET
