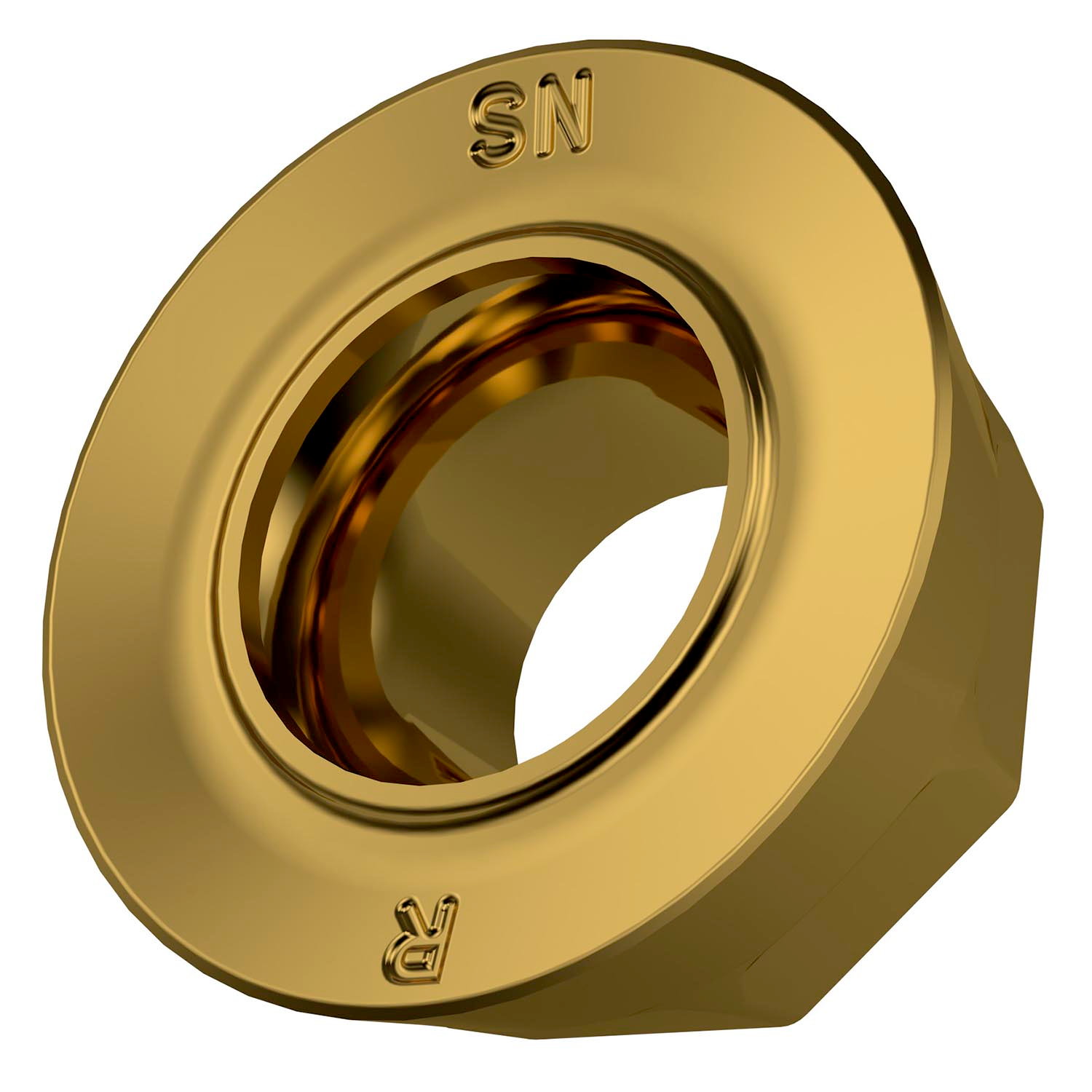

PRAMET RDMT 120500SN-R:M8340 Milling – other and drilling inserts clamped by screw

Product Code: RDMT 120500SN-R:M8340

$20.63$18.75 Ex. GST

Product Code: RDMT 120500SN-R:M8340 SKU RDMT 120500SN-R:M8340 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert RDMT 1205 with chip-breakers, round for a maximum depth of cut of 6.0mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25 -P50 for machining of steel with copy face mills SOD05

Additional information

Weight 0.02 kg
barcode
Additional Information

Description: Value
EAN number: 3603603288256
Product number (SAP): 80029426
Ordering code ANSI: RDMT 120500SN-R:M8340
Gross weight – grams: 5.558
Insert diameter – millimeter (INSD): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Insert thickness – millimeter (S): 5.56 mm
Grade: M8340
Insert Clearance Code and Angle: D 15°
Insert Thickness: 05
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): R
Insert shape code (SC): R – round
ISO: RDMT120500SN-R:M8340

Brand

PRAMET
