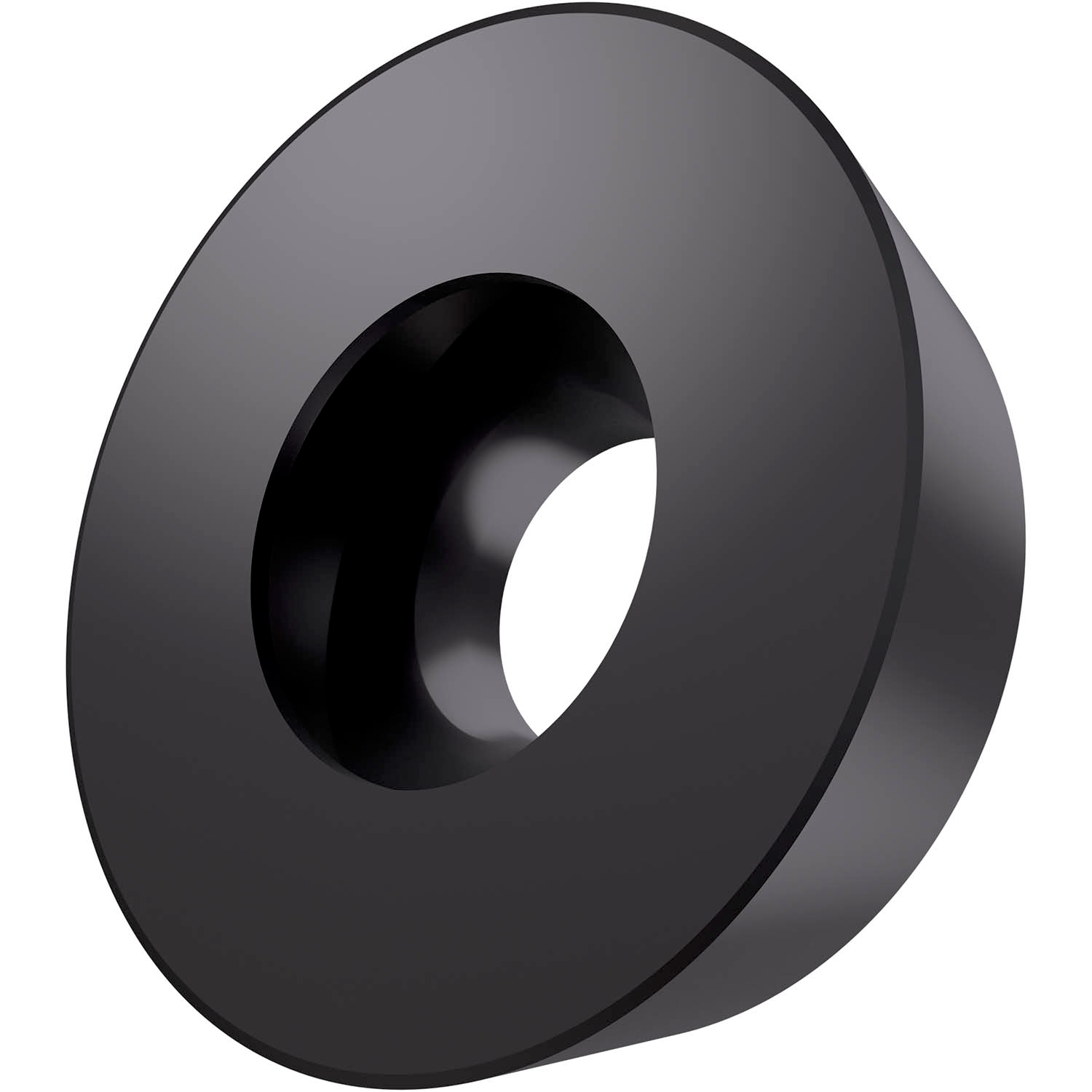

PRAMET RDMX 1604MOT:M8310 Milling inserts for D&M

Product Code: RDMX 1604MOT:M8310

$26.51$24.10 Ex. GST

Product Code: RDMX 1604MOT:M8310 SKU RDMX 1604MOT:M8310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert RDMX 1604, round for a maximum depth of cut of 4.0mm, with an indexing accuracy according to ISO-tolerance class-M with cutting edges with facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K01 -K10 and H05 -H15 for machining of cast-iron and hardened material with copy face mills SRD16

Additional information

Weight 0.0257 kg
barcode
Additional Information

Description: Value
EAN number: 3603602995353
Product number (SAP): 80024822
Ordering code ANSI: RDMX 1604MOT:M8310
Gross weight – grams: 10.021
Insert diameter – millimeter (INSD): 16 mm
Fixing hole diameter – millimeter (D1): 5.2 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8310
Insert Clearance Code and Angle: D 15°
Insert Thickness: 04
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): R – round
ISO: RDMX1604MOT:M8310

Brand

PRAMET
