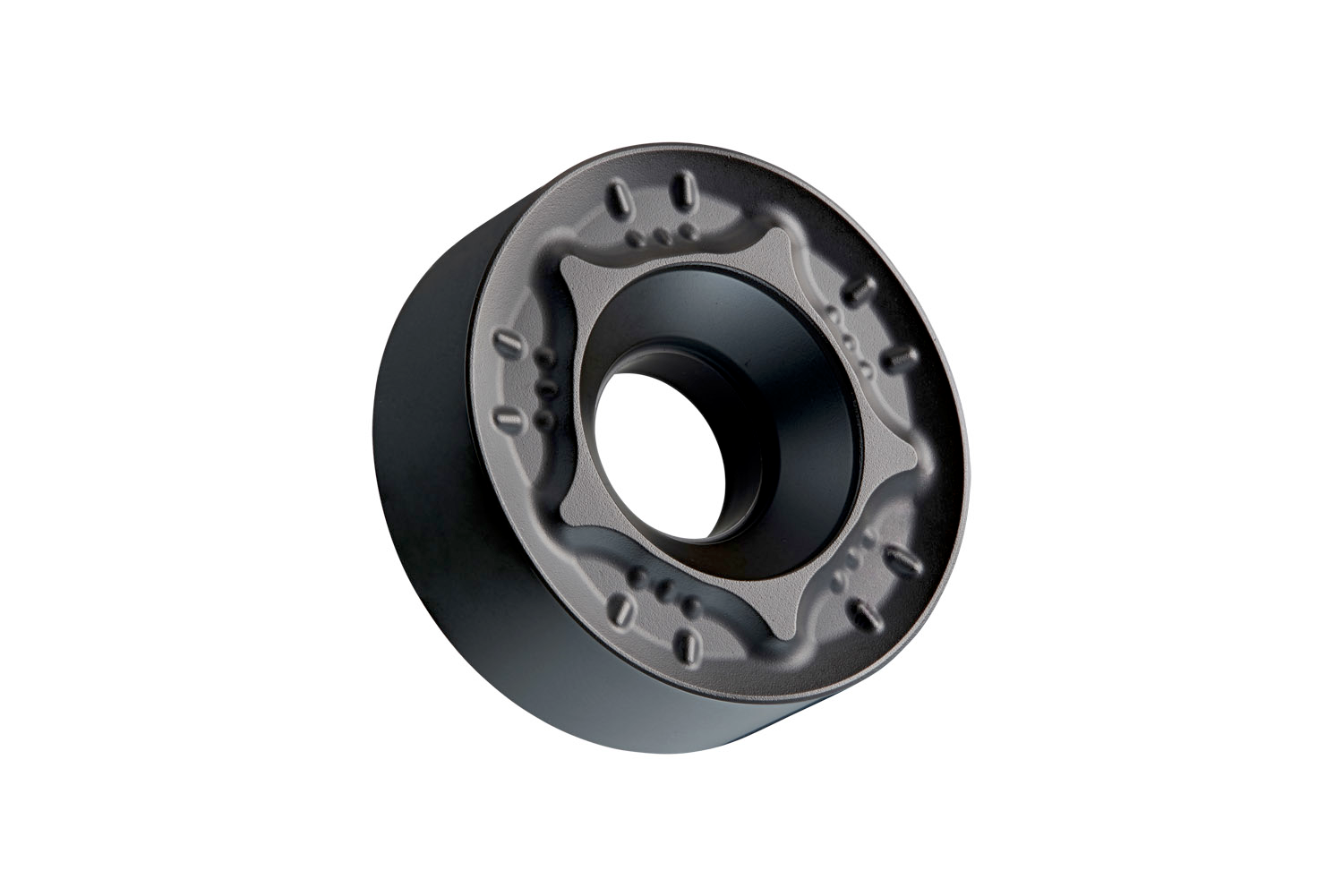

PRAMET RNGH 381200-MR:T9315 Bar peeling inserts Special order

Description: Value
EAN number: 3603603295179
Product number (SAP): 80029484
Ordering code ANSI: RNGH 381200-MR:T9315
Gross weight – grams: 155.375
Insert diameter – millimeter (INSD): 38.1 mm
Insert thickness – millimeter (S): 12.7 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Fixing hole diameter – millimeter (D1): 12.7 mm
Grade: T9315
Cutting depth – minimal – milimeters (ap): 3 mm
Cutting depth – maximal – milimeters (ap): 12 mm
Feed maximal – millimeter: 10 mm/rev
Insert Clearance Code and Angle: N 0°
Insert Design: RNGH
Insert size: 38
Insert Thickness: 12
Insert Type: H
Chipbreaker manufacturer's designation (CBMD): MR
Insert shape code (SC): R – round
ISO: RNGH381200-MR:T9315
