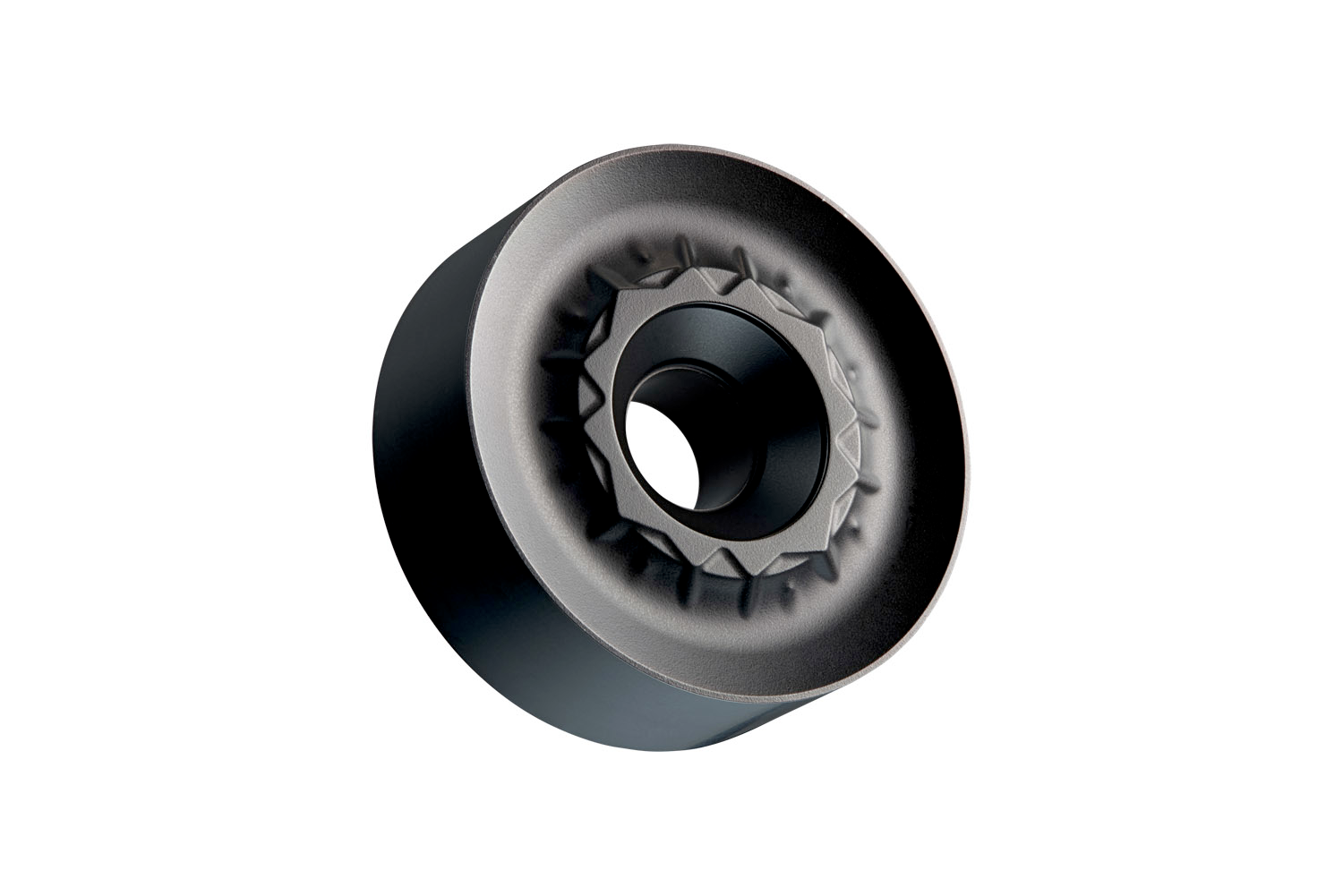

PRAMET RNGH 5018MO-MM:T7325 Bar peeling inserts Special order

Description: Value
EAN number: 3603603276222
Product number (SAP): 80029199
Ordering code ANSI: RNGH 5018MO-MM:T7325
Gross weight – grams: 427.938
Insert diameter – millimeter (INSD): 50 mm
Insert thickness – millimeter (S): 18 mm
Depth of cut maximum – millimeter (APMX): 16 mm
Fixing hole diameter – millimeter (D1): 12.7 mm
Grade: T7325
Cutting depth – minimal – milimeters (ap): 4.5 mm
Cutting depth – maximal – milimeters (ap): 16 mm
Feed maximal – millimeter: 12 mm/rev
Insert Clearance Code and Angle: N 0°
Insert Design: RNGH
Insert size: 50
Insert Thickness: 18
Insert Type: H
Chipbreaker manufacturer's designation (CBMD): MM
Insert shape code (SC): R – round
ISO: RNGH5018MO-MM:T7325
