PRAMET RPEW 1204MOSN:M8330 Milling inserts for D&M

Product Code: RPEW 1204MOSN:M8330

$23.00$20.91 Ex. GST

Product Code: RPEW 1204MOSN:M8330 SKU RPEW 1204MOSN:M8330 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

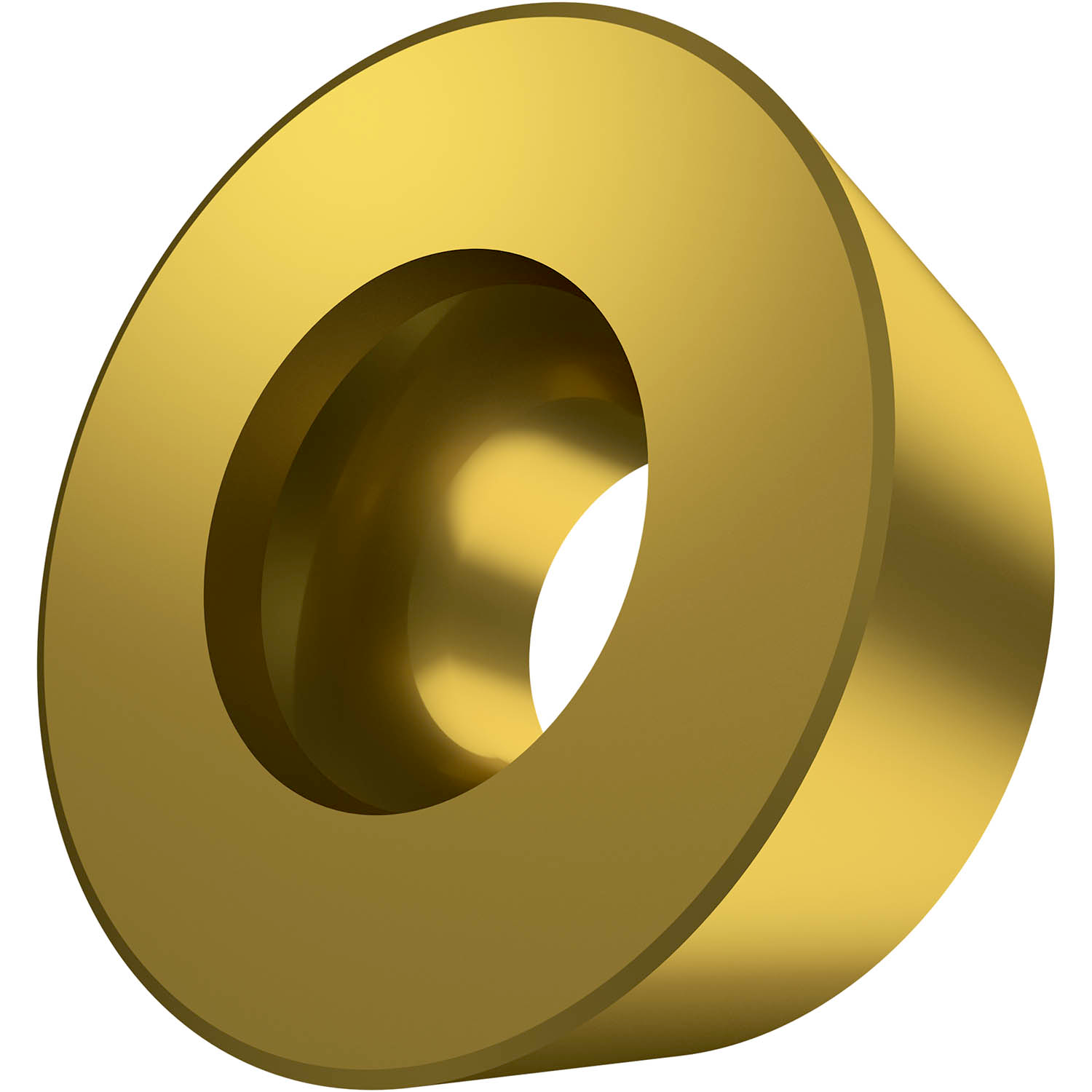

Single-sided milling insert RPEW 1204 with a plane rake surface, round for a maximum depth of cut of 3.0mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20 -K40 for machining of cast-iron

Additional information

Weight 0.0223 kg
barcode
Additional Information

Description: Value
EAN number: 3603603386228
Product number (SAP): 80030149
Ordering code ANSI: RPEW 1204MOSN:M8330
Gross weight – grams: 5.334
Insert diameter – millimeter (INSD): 12 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8330
Insert Clearance Code and Angle: P 11°
Insert Thickness: 04
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): R – round
ISO: RPEW1204MOSN:M8330

Brand

PRAMET
