PRAMET S08F SCLCR 06-B Adaptors a holders for Copy milling

Product Code: S08F SCLCR 06-B

$370.49$336.81 Ex. GST

Product Code: S08F SCLCR 06-B SKU S08F SCLCR 06-B Categories , ,
PRAMET S08F SCLCR 06-B Adaptors a holders for Copy milling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

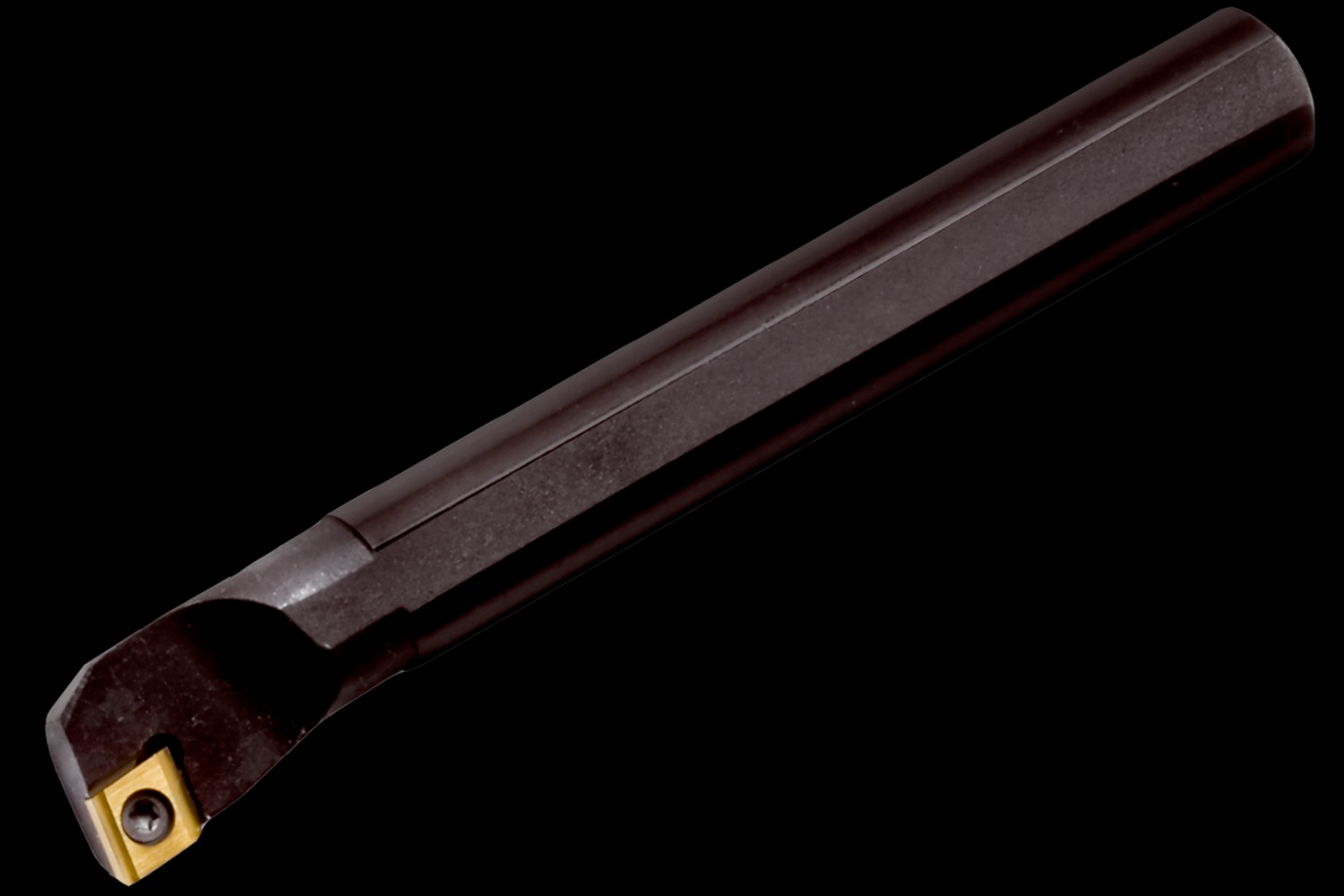

Screw clamp boring bar for holding a 80° rhombic shape positive insert with an inscribed circle diameter 6.35mm, 2.38mm thick (ISO designation CC.. 0602.. ), right hand 95° side and end cutting with off-set shank, steel without coolant hole, 8mm diameter 50mm protrusion length for cone boring and longitudinal boring with and without shoulder

Additional information

Weight 0.3597 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602960658
Product number (SAP): 86003971
Ordering code ANSI: S08F SCLCR 06-B
Gross weight – grams: 48
Connection diameter – millimeter (DCON MS): 8 mm
Cutting diameter – millimeter (DC): 10 mm
Overall length – millimeter (OAL): 80 mm
Protruding length – millimeter (LPR): 50 mm
Bohring related inserts: CC.. 0602..
Bohring – insert mounting screw: US 0205-T08P
Bohring – insert mounting screwdriver: SDR T08P
Net weight – grams: 42
ISO: S08FSCLCR06-B

Brand

PRAMET
