PRAMET S1012K-SEXPR 05 Internal Boring bar

Product Code: S1012K-SEXPR 05

$211.87$192.61 Ex. GST

Product Code: S1012K-SEXPR 05 SKU S1012K-SEXPR 05 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

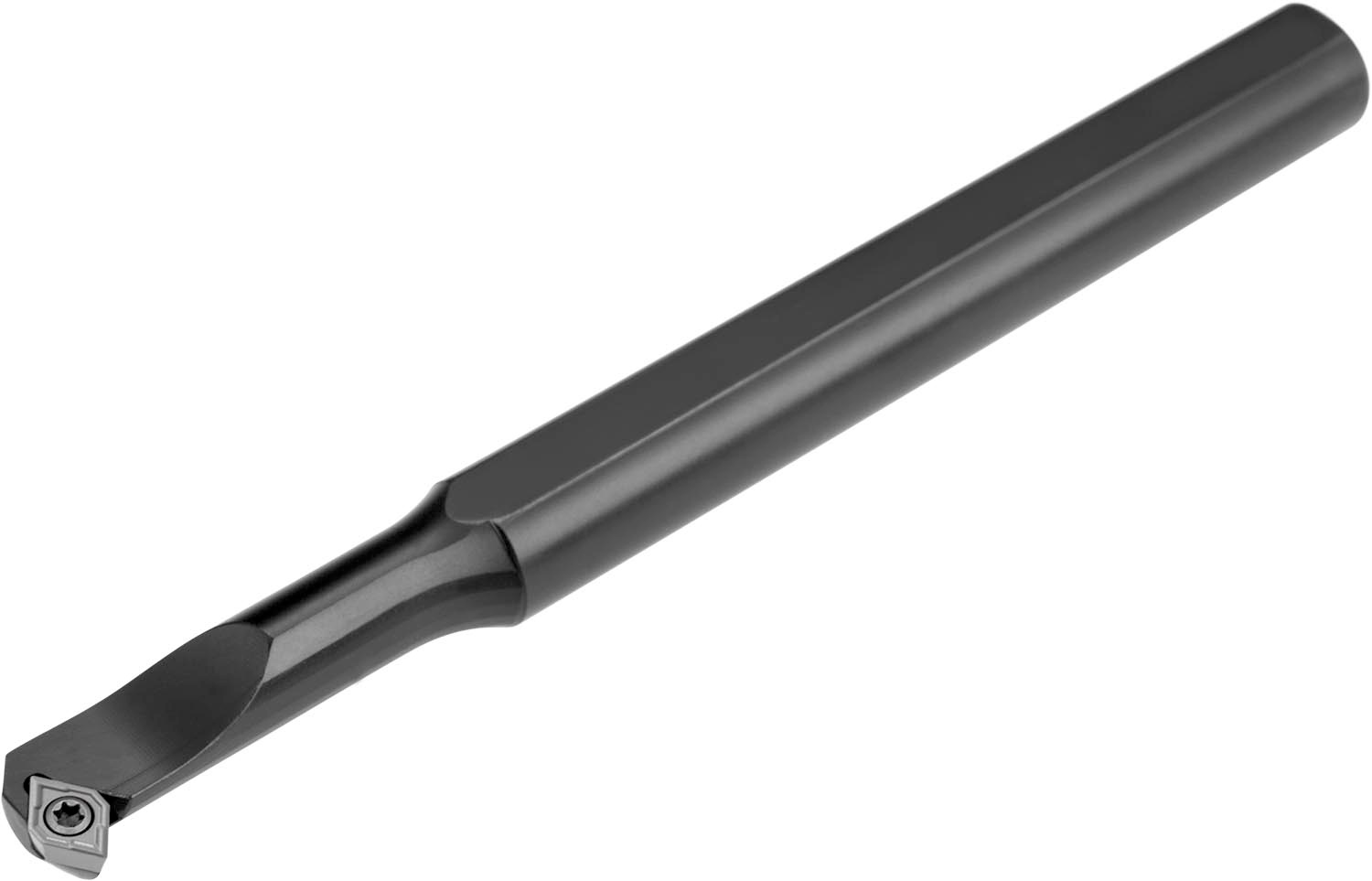

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), right hand special tool style, steel without coolant hole, 10mm diameter x 125mm long for taper boring, single and multi-directional copy boring and back chamfering

Additional information

Weight 0.2057 kg
barcode
Additional Information

Description: Value
EAN number: 3603602958181
Product number (SAP): 86002090
Ordering code ANSI: S1012K-SEXPR 05
Gross weight – grams: 106.4
Connection diameter – millimeter (DCON MS): 12 mm
Minimum bore diameter – millimeter (DMIN): 13 mm
Body diameter – millimeter (BD): 10 mm
Functional width – millimeter (WF): 7 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 32 mm
Axial rake angle (GAMP): -5
Net weight – grams: 106.4
Insert size: 05
ISO: S1012K-SEXPR05

Brand

PRAMET
