PRAMET S10M-SEUCR 06 Internal Boring bar

Product Code: S10M-SEUCR 06

$211.87$192.61 Ex. GST

Product Code: S10M-SEUCR 06 SKU S10M-SEUCR 06 Categories , ,
PRAMET S10M-SEUCR 06 Internal Boring bar

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

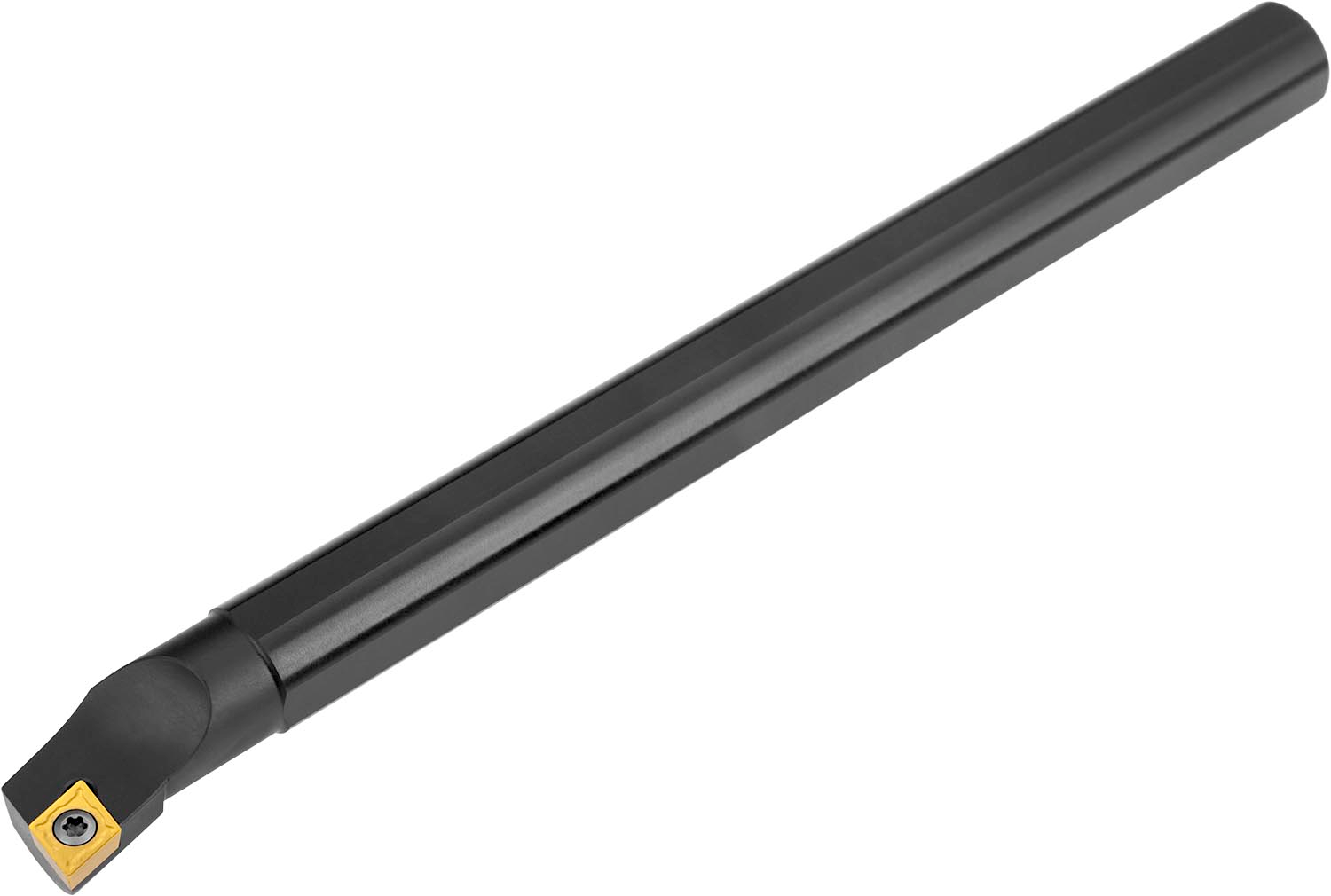

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation EC.. 0602.. ), right hand 93° end cutting with off-set shank, steel without coolant hole, 10mm diameter x 150mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2057 kg
barcode
Additional Information

Description: Value
EAN number: 3603602958013
Product number (SAP): 86002070
Ordering code ANSI: S10M-SEUCR 06
Gross weight – grams: 136.1
Connection diameter – millimeter (DCON MS): 10 mm
Minimum bore diameter – millimeter (DMIN): 13 mm
Functional width – millimeter (WF): 8 mm
Shank height – millimeter (H): 9 mm
Functional height – millimeter (HF): 4.5 mm
Functional length – millimeter (LF): 150 mm
Inclination angle (LAMS): -5
Orthogonal rake angle (GAMO): 0
Net weight – grams: 102
Insert size: 06
ISO: S10M-SEUCR06

Brand

PRAMET
