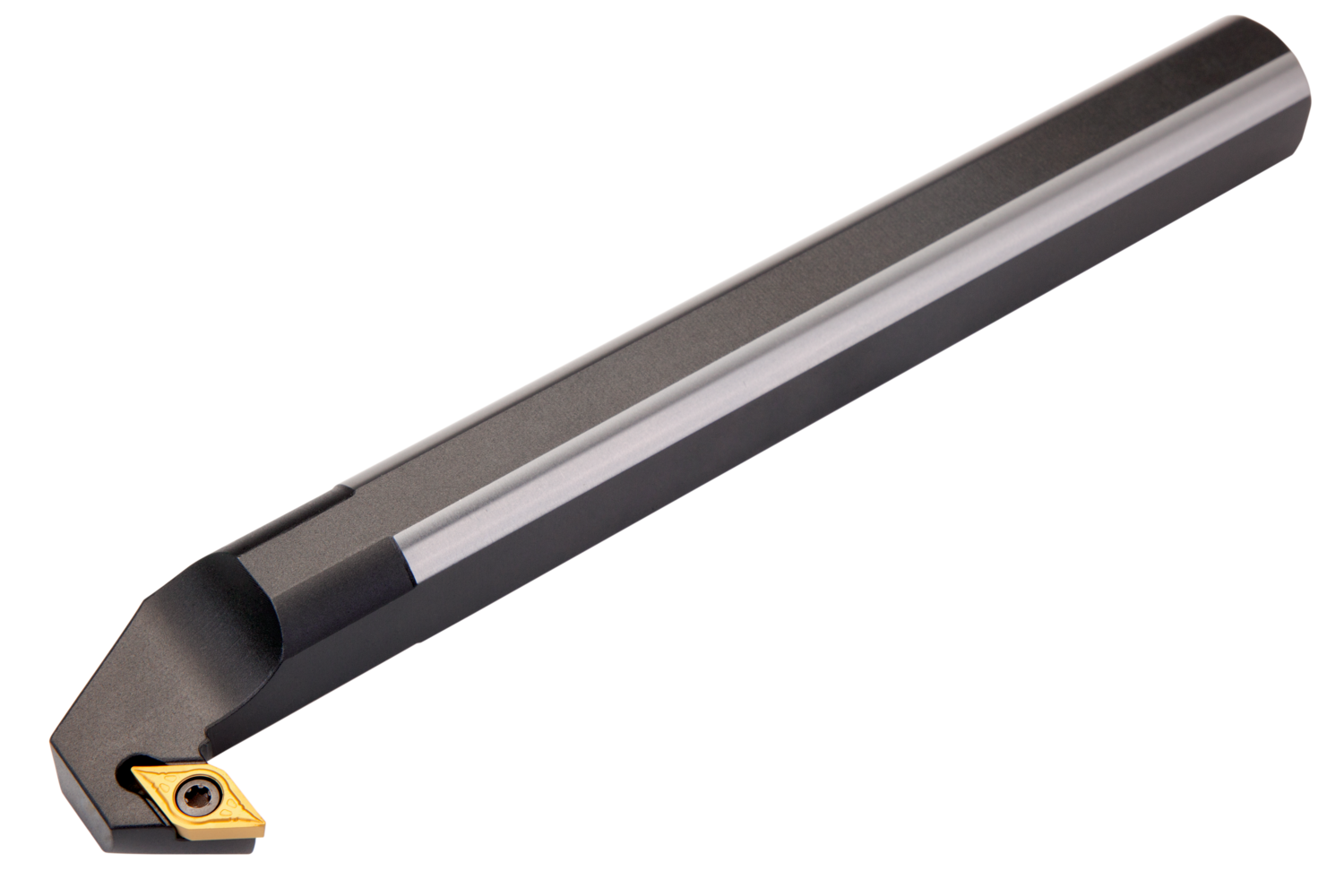

PRAMET S16M-SDZCR 07-93 Internal Boring bar

Product Code: S16M-SDZCR 07-93

$211.87$192.61 Ex. GST

Product Code: S16M-SDZCR 07-93 SKU S16M-SDZCR 07-93 Categories , ,
PRAMET S16M-SDZCR 07-93 Internal Boring bar

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation DC.. 0702.. ), right hand back cutting with off-set shank, steel without coolant hole, 16mm diameter x 150mm long for back chamfering

Additional information

Weight 0.2057 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602921987
Product number (SAP): 84001180
Ordering code ANSI: S16M-SDZCR 07-93
Gross weight – grams: 260
Connection diameter – millimeter (DCON MS): 16 mm
Minimum bore diameter – millimeter (DMIN): 27 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 14.5 mm
Shank width – millimeter (B): 15 mm
Functional length – millimeter (LF): 150 mm
Overall length – millimeter (OAL): 163 mm
Inclination angle (LAMS): -4
Orthogonal rake angle (GAMO): 0
Net weight – grams: 260
Insert size: 07
ISO: S16M-SDZCR07-93

Brand

PRAMET
