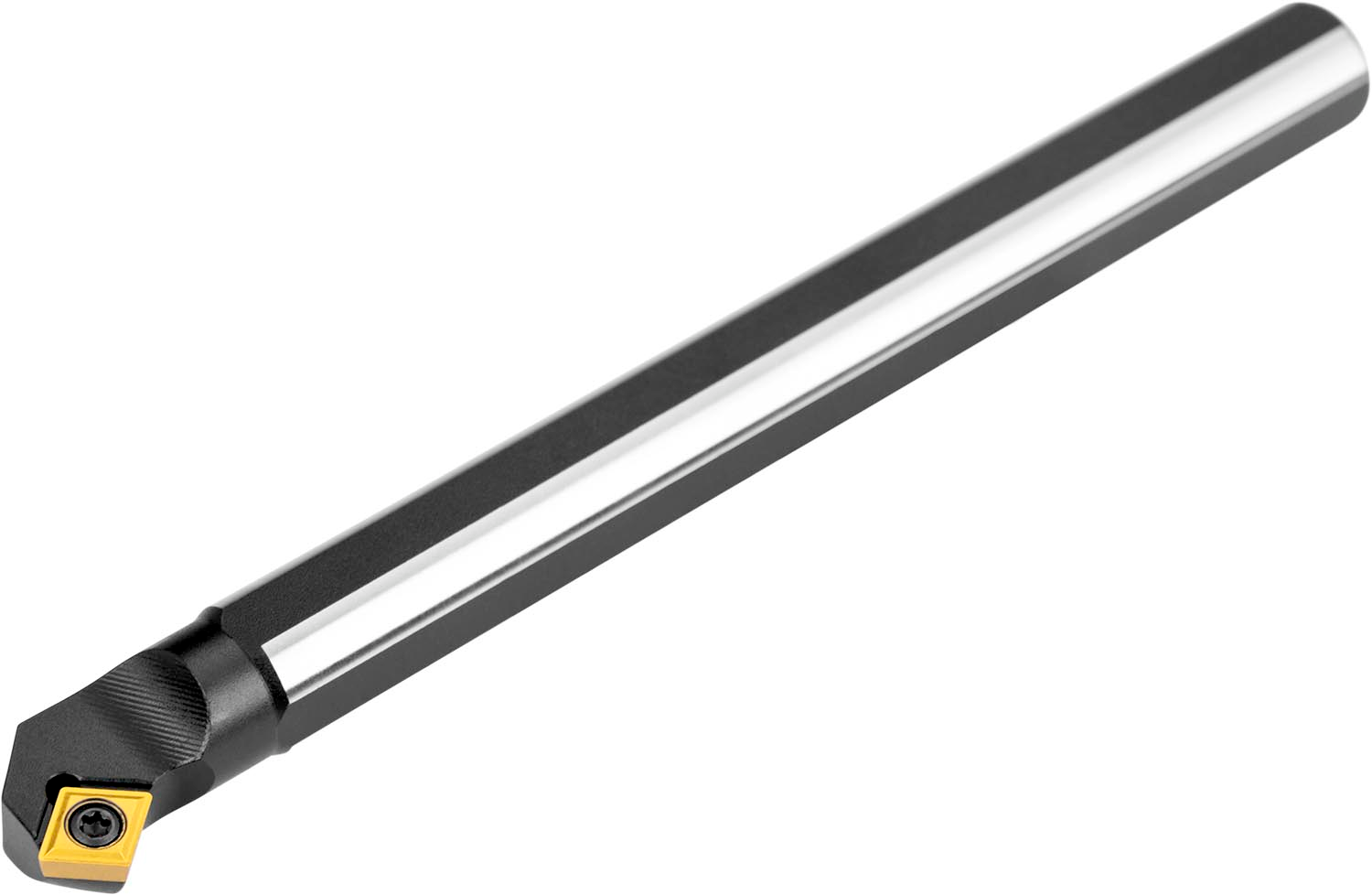

PRAMET S16Q-SCXCR 06 Turning Boring bars

Product Code: S16Q-SCXCR 06

$211.87$192.61 Ex. GST

Product Code: S16Q-SCXCR 06 SKU S16Q-SCXCR 06 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Screw clamp turning tool also compatible with sliding head machines for holding a 55° rhombus positive insert with an inscribed circle diameter of 6.35mm, 2.38mm thick (ISO designation DC.. 0702.. ), left hand 90° end cutting with off-set shank, 12mm tool height x 12mm width x 125mm long for taper turning and longitudinal turning with and without shoulder

Additional information

Weight 0.2057 kg
barcode
Additional Information

Description: Value
EAN number: 3603602925527
Product number (SAP): 84001863
Ordering code ANSI: S16Q-SCXCR 06
Gross weight – grams: 292.5
Connection diameter – millimeter (DCON MS): 16 mm
Minimum bore diameter – millimeter (DMIN): 20 mm
Functional width – millimeter (WF): 11 mm
Shank height – millimeter (H): 14.5 mm
Shank width – millimeter (B): 15 mm
Functional length – millimeter (LF): 180 mm
Inclination angle (LAMS): -7
Orthogonal rake angle (GAMO): 0
Net weight – grams: 291.7
Insert size: 06
ISO: S16Q-SCXCR06

Brand

PRAMET
