PRAMET S16R-SEUCL 08 Internal Boring bar

Product Code: S16R-SEUCL 08

$211.87$192.61 Ex. GST

Product Code: S16R-SEUCL 08 SKU S16R-SEUCL 08 Categories , ,

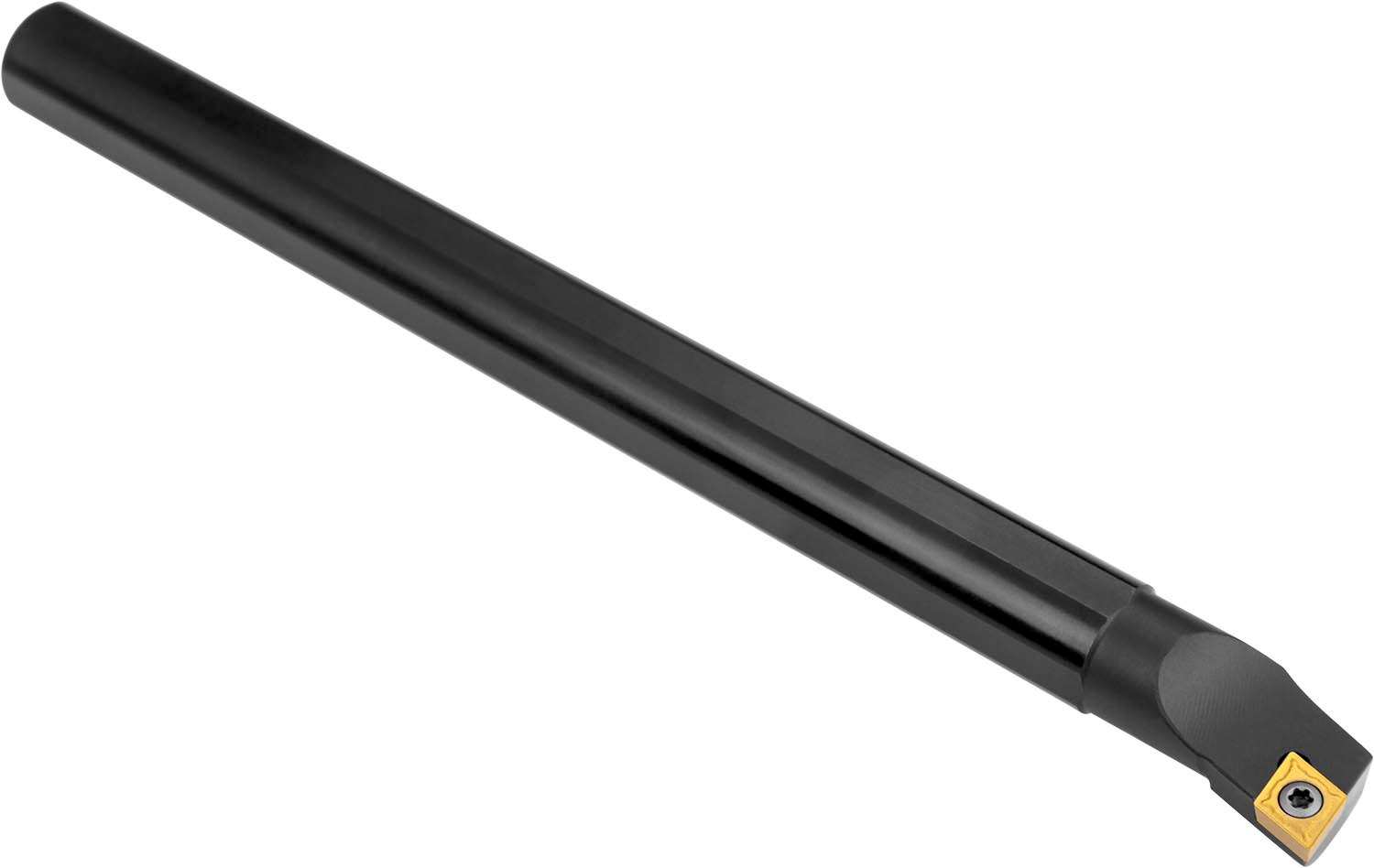

PRAMET S16R-SEUCL 08 Internal Boring bar

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation EC.. 0803.. ), left hand 93° end cutting with off-set shank, steel without coolant hole, 16mm diameter x 200mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2057 kg
barcode
Additional Information

Description: Value
EAN number: 3603602958044
Product number (SAP): 86002076
Ordering code ANSI: S16R-SEUCL 08
Gross weight – grams: 360.8
Connection diameter – millimeter (DCON MS): 16 mm
Minimum bore diameter – millimeter (DMIN): 20 mm
Functional width – millimeter (WF): 11 mm
Shank height – millimeter (H): 15 mm
Functional height – millimeter (HF): 7.5 mm
Functional length – millimeter (LF): 200 mm
Inclination angle (LAMS): -5
Orthogonal rake angle (GAMO): 0
Net weight – grams: 324
Insert size: 08
ISO: S16R-SEUCL08

Brand

PRAMET
