PRAMET S20Q-SDZCR 11-93 Internal Boring bar

Product Code: S20Q-SDZCR 11-93

$261.72$237.93 Ex. GST

Product Code: S20Q-SDZCR 11-93 SKU S20Q-SDZCR 11-93 Categories , ,

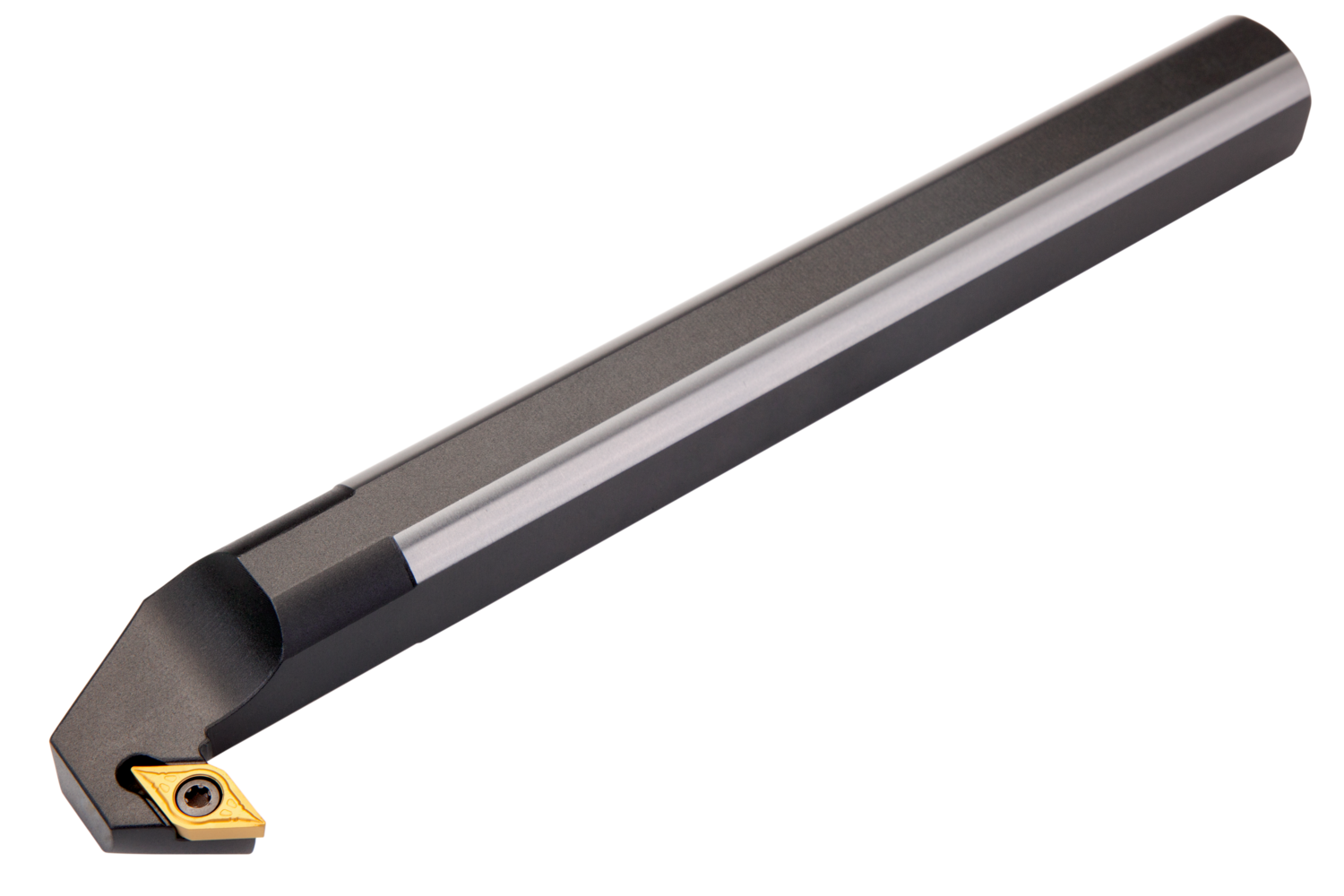

PRAMET S20Q-SDZCR 11-93 Internal Boring bar

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand back cutting with off-set shank, steel without coolant hole, 20mm diameter x 180mm long for back chamfering

Additional information

Weight 0.2541 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602925220
Product number (SAP): 84001801
Ordering code ANSI: S20Q-SDZCR 11-93
Gross weight – grams: 485.3
Connection diameter – millimeter (DCON MS): 20 mm
Minimum bore diameter – millimeter (DMIN): 35 mm
Functional width – millimeter (WF): 22 mm
Shank height – millimeter (H): 18 mm
Shank width – millimeter (B): 18.5 mm
Functional length – millimeter (LF): 180 mm
Overall length – millimeter (OAL): 198 mm
Inclination angle (LAMS): -5
Orthogonal rake angle (GAMO): 0
Net weight – grams: 485.3
Insert size: 11
ISO: S20Q-SDZCR11-93

Brand

PRAMET
