PRAMET S20S-SSSCR 09 Turning holders internal

Product Code: S20S-SSSCR 09

$261.72$237.93 Ex. GST

Product Code: S20S-SSSCR 09 SKU S20S-SSSCR 09 Categories , ,
PRAMET S20S-SSSCR 09 Turning holders internal

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

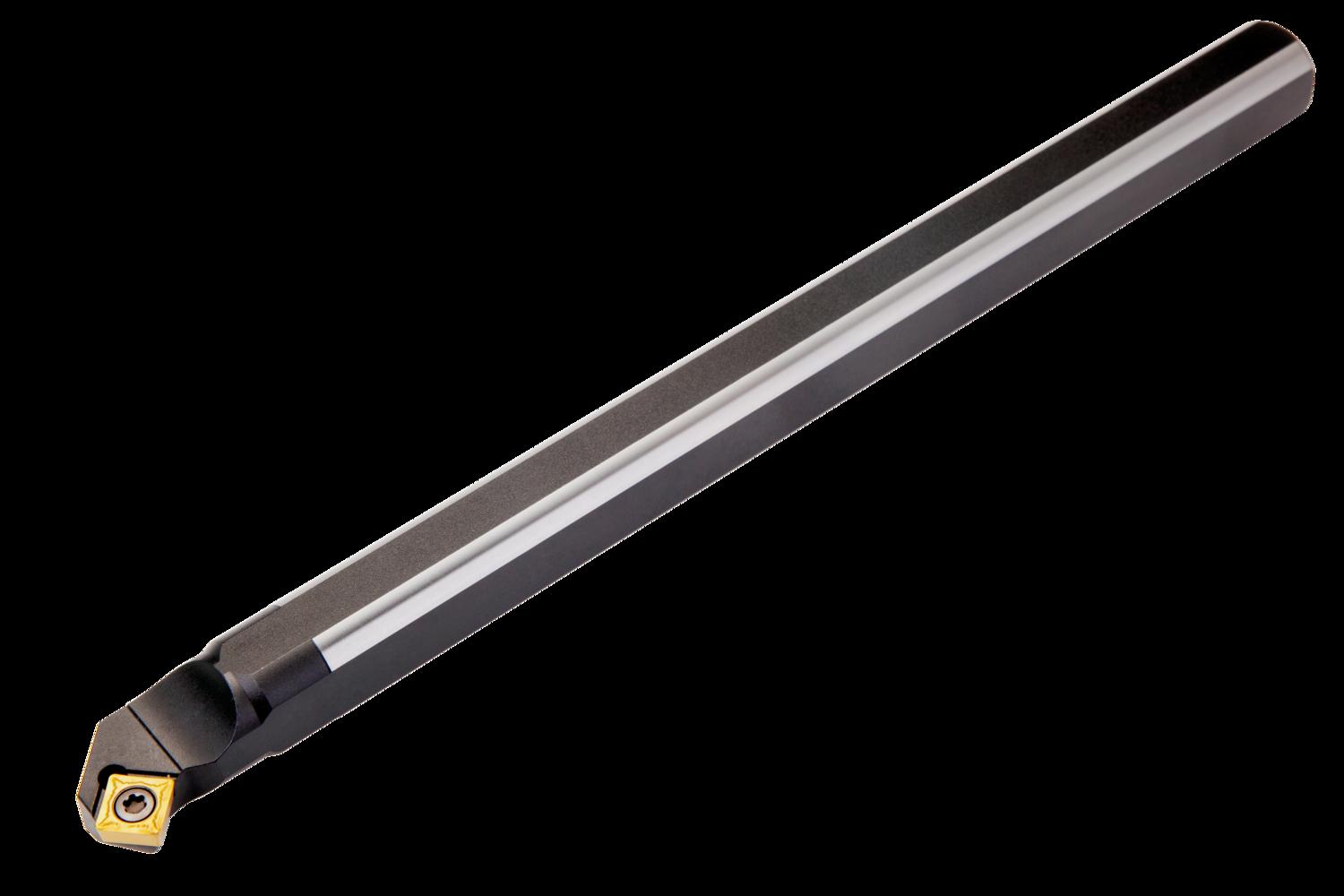

Screw clamp boring bar for holding a square positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation SC.. 09T3.. ), right hand 45° side cutting with off-set shank, steel without coolant hole, 20mm diameter x 250mm long for internal chamfering, taper boring, single and multi-directional copy boring and back chamfering

Additional information

Weight 0.2541 kg
barcode
Additional Information

Description: Value
EAN number: 3603602924353
Product number (SAP): 84001625
Ordering code ANSI: S20S-SSSCR 09
Gross weight – grams: 611.1
Connection diameter – millimeter (DCON MS): 20 mm
Minimum bore diameter – millimeter (DMIN): 25 mm
Functional width – millimeter (WF): 13 mm
Shank height – millimeter (H): 18 mm
Shank width – millimeter (B): 18.5 mm
Functional length – millimeter (LF): 250 mm
Inclination angle (LAMS): -5
Orthogonal rake angle (GAMO): 0
Net weight – grams: 600.1
Insert size: 09
ISO: S20S-SSSCR09

Brand

PRAMET
