PRAMET S25R-SDZCR 11-93 Internal Boring bar

Product Code: S25R-SDZCR 11-93

$300.25$272.95 Ex. GST

Product Code: S25R-SDZCR 11-93 SKU S25R-SDZCR 11-93 Categories , ,
PRAMET S25R-SDZCR 11-93 Internal Boring bar

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

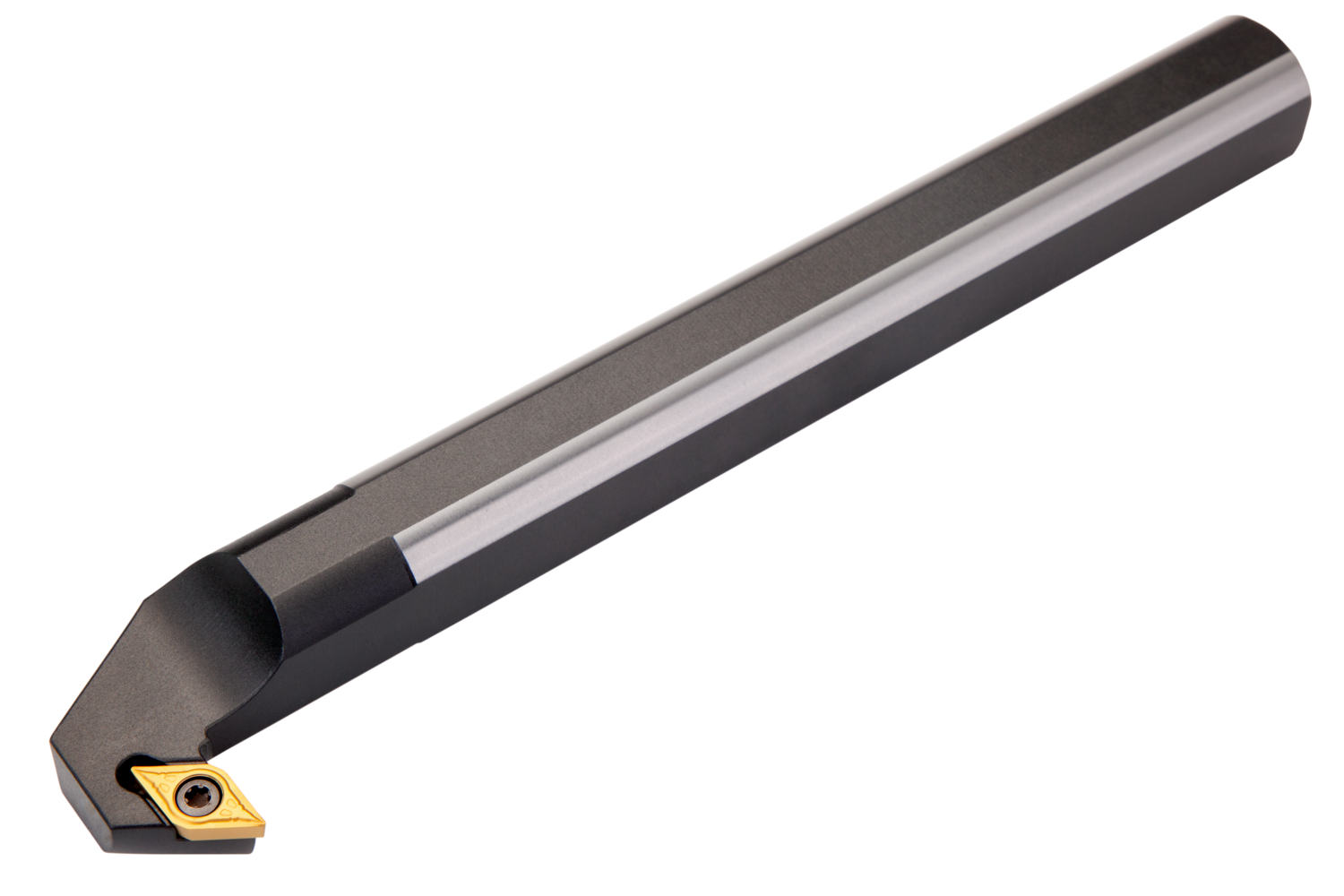

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), right hand back cutting with off-set shank, steel without coolant hole, 25mm diameter x 200mm long for back chamfering

Additional information

Weight 0.2915 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602922427
Product number (SAP): 84001276
Ordering code ANSI: S25R-SDZCR 11-93
Gross weight – grams: 794.4
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 42 mm
Functional width – millimeter (WF): 27 mm
Shank height – millimeter (H): 23 mm
Shank width – millimeter (B): 23 mm
Functional length – millimeter (LF): 200 mm
Overall length – millimeter (OAL): 218 mm
Inclination angle (LAMS): -3
Orthogonal rake angle (GAMO): 0
Net weight – grams: 794.4
Insert size: 11
ISO: S25R-SDZCR11-93

Brand

PRAMET
