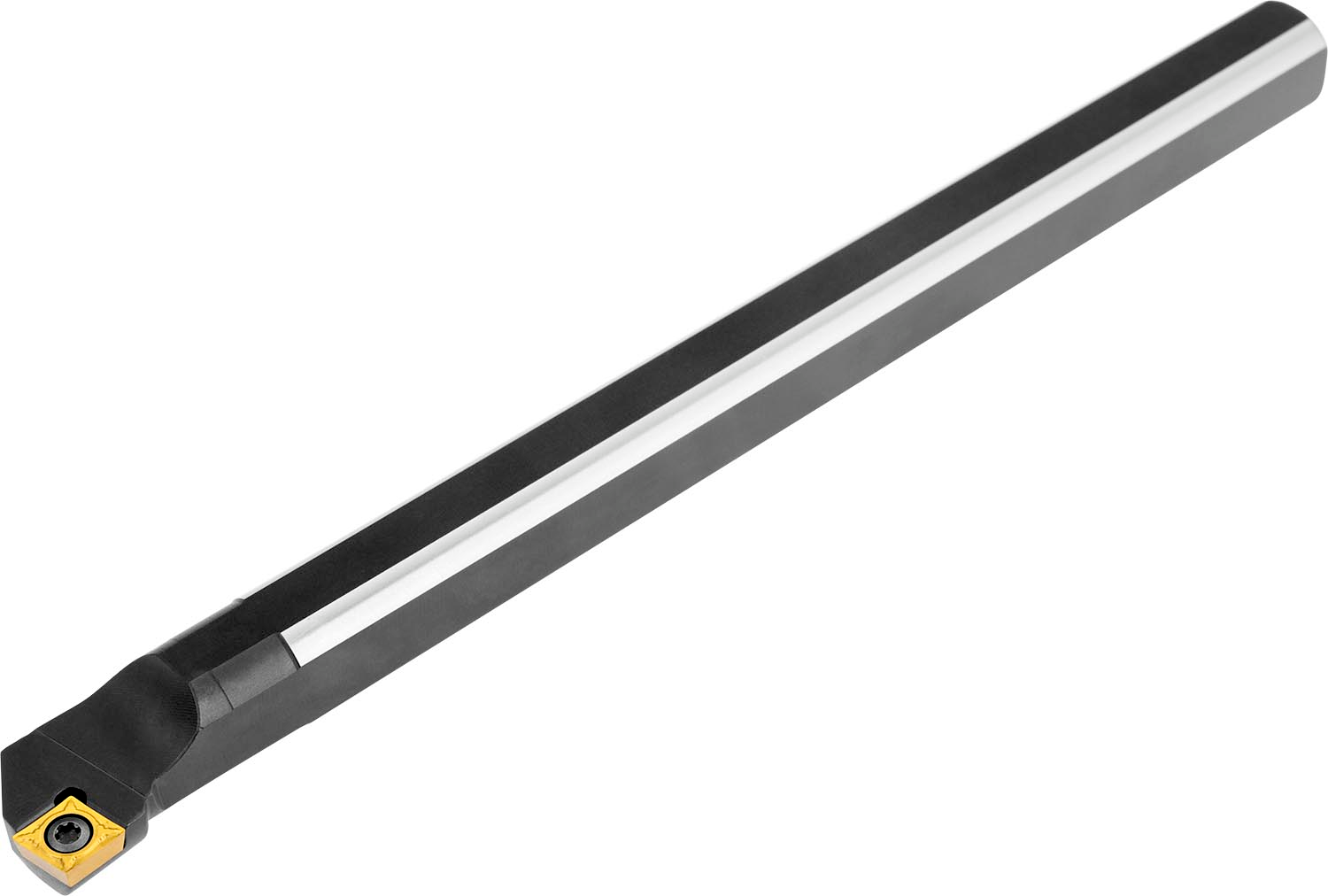

PRAMET S25T-SCKCR 09

Product Code: S25T-SCKCR 09

$300.25$272.95 Ex. GST

Product Code: S25T-SCKCR 09 SKU S25T-SCKCR 09 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), right hand 75° end cutting with off-set shank, steel without coolant hole, 25mm diameter x 300mm long for taper boring and longitudinal boring without shoulder

Additional information

Weight 0.2915 kg
barcode
Additional Information

Description: Value
EAN number: 3603602923660
Product number (SAP): 84001445
Ordering code ANSI: S25T-SCKCR 09
Gross weight – grams: 1150
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 32 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 23 mm
Shank width – millimeter (B): 23 mm
Functional length – millimeter (LF): 300 mm
Inclination angle (LAMS): -3
Orthogonal rake angle (GAMO): 0
Net weight – grams: 1150
Insert size: 09
ISO: S25T-SCKCR09

Brand

PRAMET
