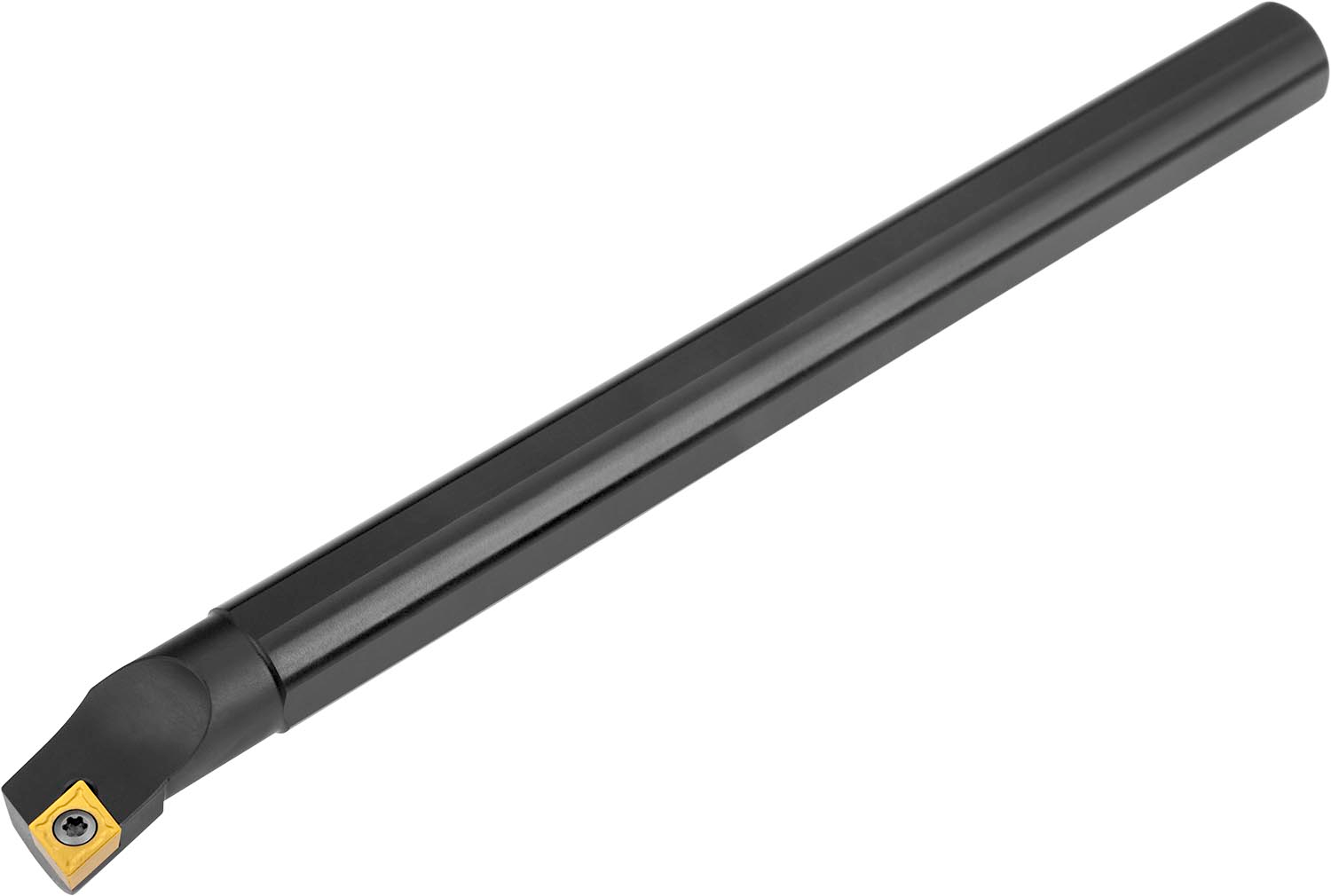

PRAMET S25T-SEUCR 08 Internal Boring bar

Product Code: S25T-SEUCR 08

$300.25$272.95 Ex. GST

Product Code: S25T-SEUCR 08 SKU S25T-SEUCR 08 Categories , ,
PRAMET S25T-SEUCR 08 Internal Boring bar

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 7.94mm, 3.18mm thick (ISO designation EC.. 0803.. ), right hand 93° end cutting with off-set shank, steel without coolant hole, 25mm diameter x 300mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.2915 kg
barcode
Additional Information

Description: Value
EAN number: 3603602958075
Product number (SAP): 86002079
Ordering code ANSI: S25T-SEUCR 08
Gross weight – grams: 1075
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 32 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 23 mm
Functional height – millimeter (HF): 11.5 mm
Functional length – millimeter (LF): 300 mm
Inclination angle (LAMS): -4
Orthogonal rake angle (GAMO): 0
Net weight – grams: 1060
Insert size: 08
ISO: S25T-SEUCR08

Brand

PRAMET
