$300.25$272.95 Ex. GST

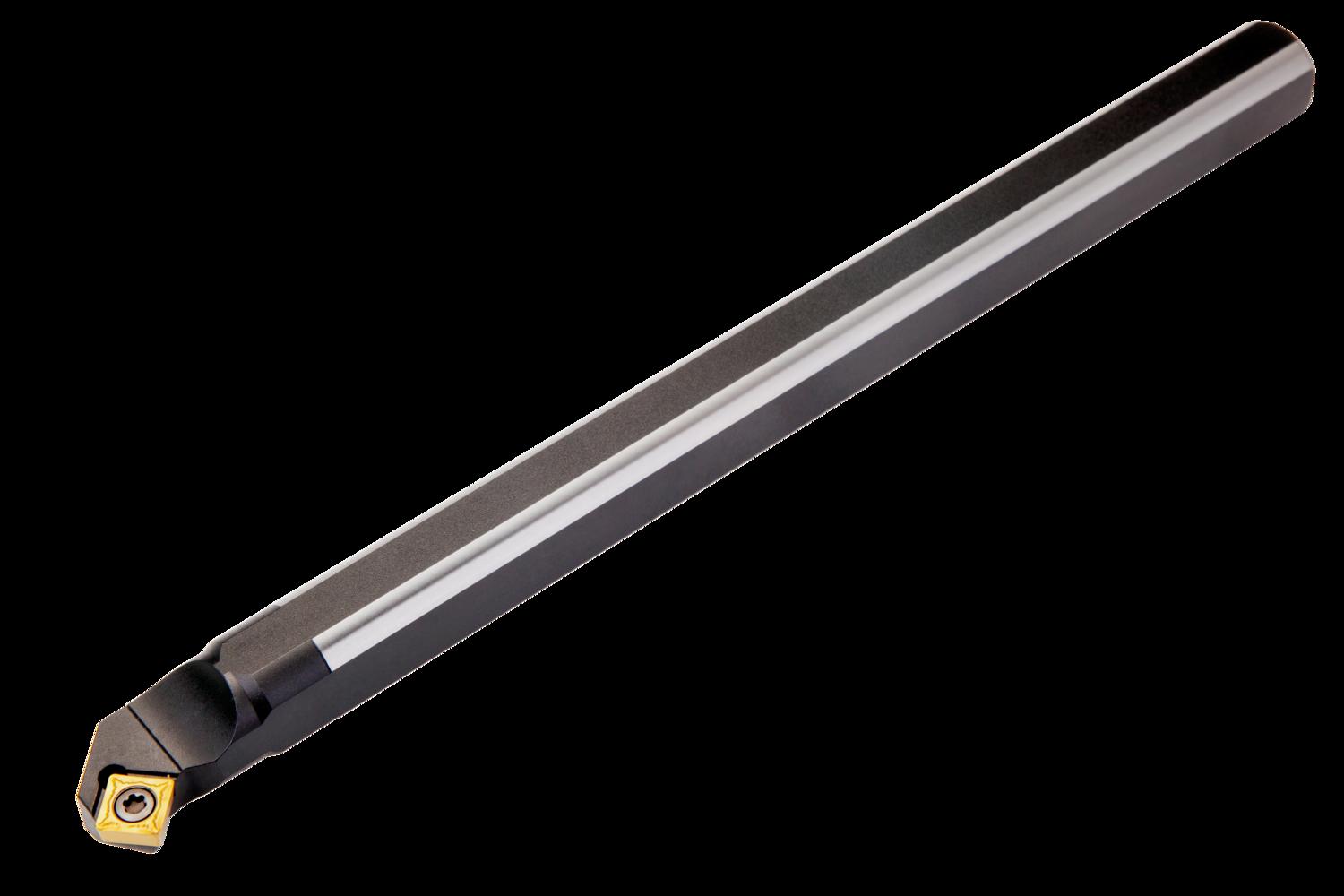

Screw clamp boring bar for holding a square positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation SC.. 09T3.. ), right hand 45° side cutting with off-set shank, steel without coolant hole, 25mm diameter x 300mm long for internal chamfering, taper boring, single and multi-directional copy boring and back chamfering
| Weight | 0.2915 kg |
|---|---|
| barcode | |
| Additional Information | EAN number: 3603602924612 Product number (SAP): 84001669 Ordering code ANSI: S25T-SSSCR 09 Gross weight: 1137.6 grams Connection diameter (DCON MS): 25 mm Minimum bore diameter (DMIN): 32 mm Functional width (WF): 17 mm Shank height (H): 23 mm Shank width (B): 23 mm Functional length (LF): 300 mm Inclination angle (LAMS): -3 Orthogonal rake angle (GAMO): 0 Net weight: 1103.9 grams Insert size: 09 ISO: S25T-SSSCR09 |
