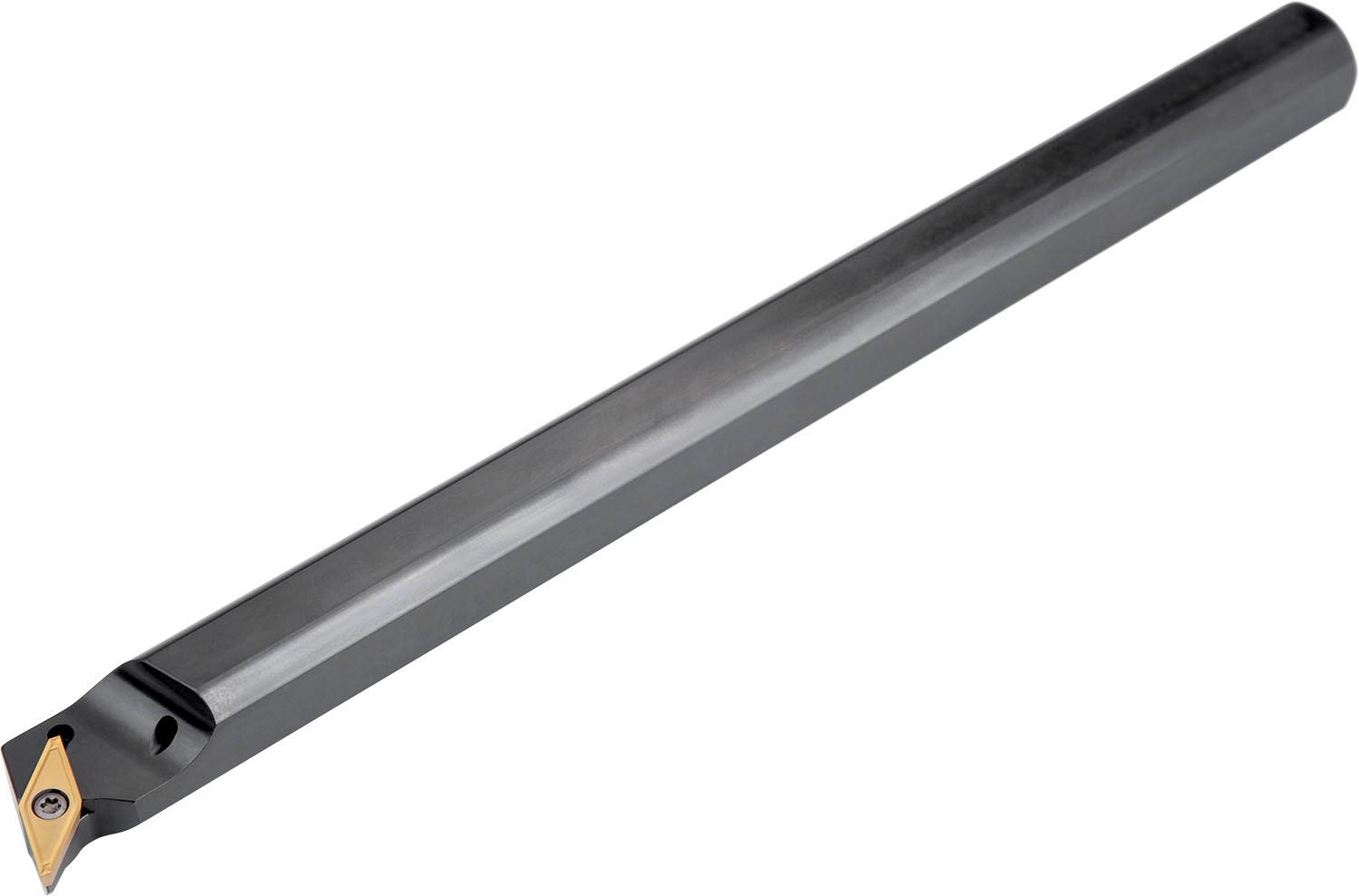

PRAMET S25T-SVQCR 16 Turning holders internal

Description

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), left hand 107°30′ end cutting with off-set shank, steel without coolant hole, 32mm diameter x 350mm long for single and multi-directional copy boring

Additional information

Weight	0.3058 kg
barcode
Additional Information	Description: Value EAN number: 3603602922007 Product number (SAP): 84001182 Ordering code ANSI: S25T-SVQCR 16 Gross weight – grams: 1115.8 Connection diameter – millimeter (DCON MS): 25 mm Minimum bore diameter – millimeter (DMIN): 32 mm Functional width – millimeter (WF): 17 mm Shank height – millimeter (H): 23 mm Shank width – millimeter (B): 23 mm Functional length – millimeter (LF): 300 mm Inclination angle (LAMS): -7 Orthogonal rake angle (GAMO): 0 Net weight – grams: 1084.5 Insert size: 16 ISO: S25T-SVQCR16

Need Technical Advice?

Description

Additional information

Brand

PRAMET
