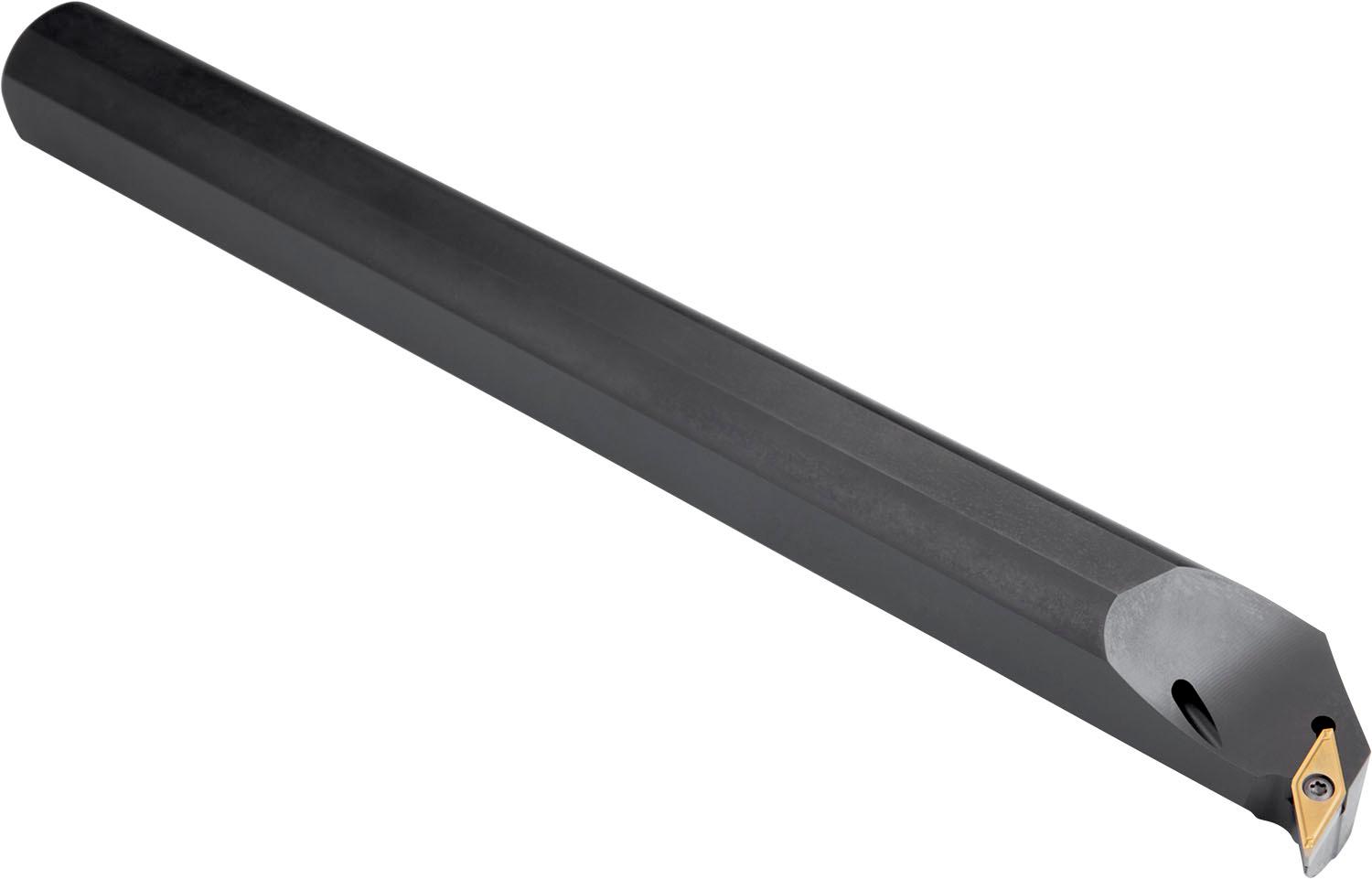

PRAMET S25T-SVUCL 16 Turning holders internal

Product Code: S25T-SVUCL 16

$314.97$286.34 Ex. GST

Product Code: S25T-SVUCL 16 SKU S25T-SVUCL 16 Categories , ,
PRAMET S25T-SVUCL 16 Turning holders internal

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), left hand 93° end cutting with off-set shank, steel without coolant hole, 25mm diameter x 300mm long for single and multi-directional copy boring and back chamfering

Additional information

Weight 0.3058 kg
barcode
Additional Information

Description: Value
EAN number: 3603602925534
Product number (SAP): 84001864
Ordering code ANSI: S25T-SVUCL 16
Gross weight – grams: 1086.3
Connection diameter – millimeter (DCON MS): 25 mm
Minimum bore diameter – millimeter (DMIN): 32 mm
Functional width – millimeter (WF): 17 mm
Shank height – millimeter (H): 23 mm
Shank width – millimeter (B): 23 mm
Functional length – millimeter (LF): 300 mm
Inclination angle (LAMS): -7
Orthogonal rake angle (GAMO): 0
Net weight – grams: 1086.3
Insert size: 16
ISO: S25T-SVUCL16

Brand

PRAMET
