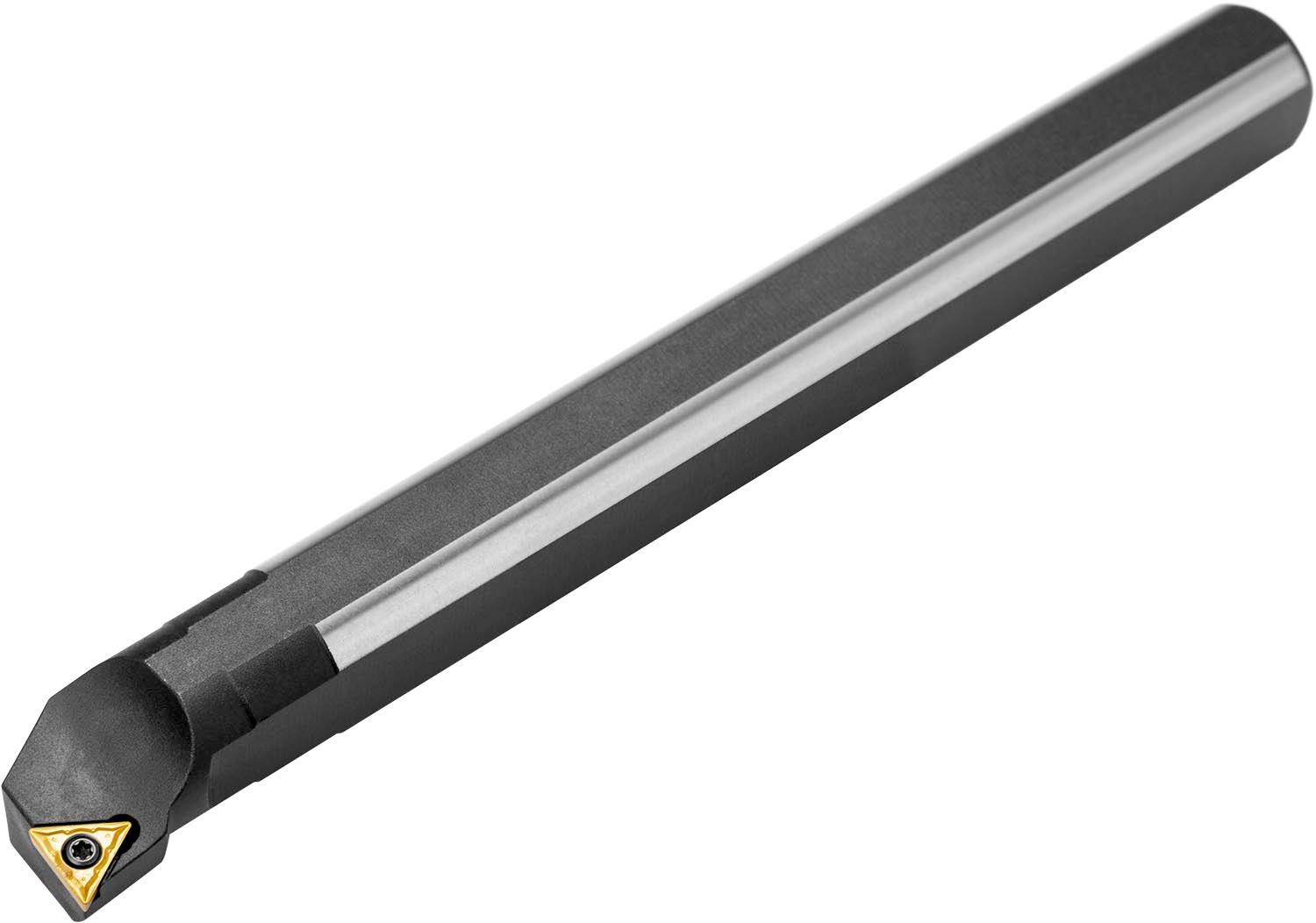

PRAMET S32U-STFCR 16-A Turning holders internal

Product Code: S32U-STFCR 16-A

$415.81$378.01 Ex. GST

Product Code: S32U-STFCR 16-A SKU S32U-STFCR 16-A Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation TC.. 16T3.. ), right hand 90° end cutting with off-set shank, steel without coolant hole, 32mm diameter x 350mm long for taper boring and longitudinal boring with and without shoulder

Additional information

Weight 0.4037 kg
barcode
Additional Information

Description: Value
EAN number: 3603602920232
Product number (SAP): 84000866
Ordering code ANSI: S32U-STFCR 16-A
Gross weight – grams: 2841
Connection diameter – millimeter (DCON MS): 32 mm
Minimum bore diameter – millimeter (DMIN): 40 mm
Functional width – millimeter (WF): 22 mm
Shank height – millimeter (H): 30 mm
Shank width – millimeter (B): 30 mm
Functional length – millimeter (LF): 350 mm
Inclination angle (LAMS): -10
Orthogonal rake angle (GAMO): 0
Net weight – grams: 2100
Insert size: 16
ISO: S32U-STFCR16-A

Brand

PRAMET
