PRAMET S32U-SVUCR 16 Turning holders internal

Product Code: S32U-SVUCR 16

$436.21$396.55 Ex. GST

Product Code: S32U-SVUCR 16 SKU S32U-SVUCR 16 Categories , ,
PRAMET S32U-SVUCR 16 Turning holders internal

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

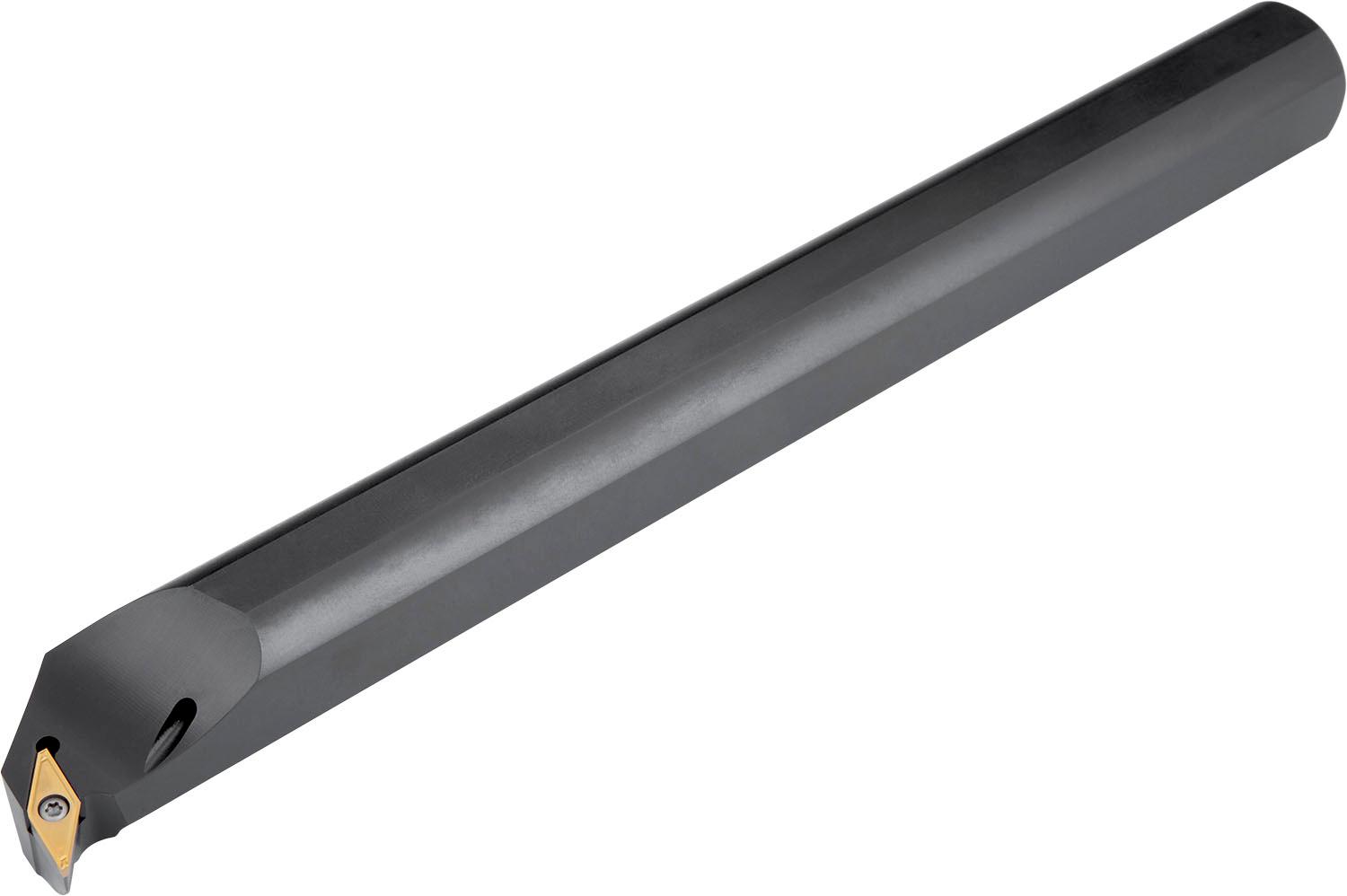

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), right hand 93° end cutting with off-set shank, steel without coolant hole, 32mm diameter x 350mm long for single and multi-directional copy boring and back chamfering

Additional information

Weight 0.4235 kg
barcode
Additional Information

Description: Value
EAN number: 3603602922151
Product number (SAP): 84001231
Ordering code ANSI: S32U-SVUCR 16
Gross weight – grams: 2841.2
Connection diameter – millimeter (DCON MS): 32 mm
Minimum bore diameter – millimeter (DMIN): 40 mm
Functional width – millimeter (WF): 22 mm
Shank height – millimeter (H): 30 mm
Shank width – millimeter (B): 30 mm
Functional length – millimeter (LF): 350 mm
Inclination angle (LAMS): -5
Orthogonal rake angle (GAMO): 0
Net weight – grams: 2100
Insert size: 16
ISO: S32U-SVUCR16

Brand

PRAMET
