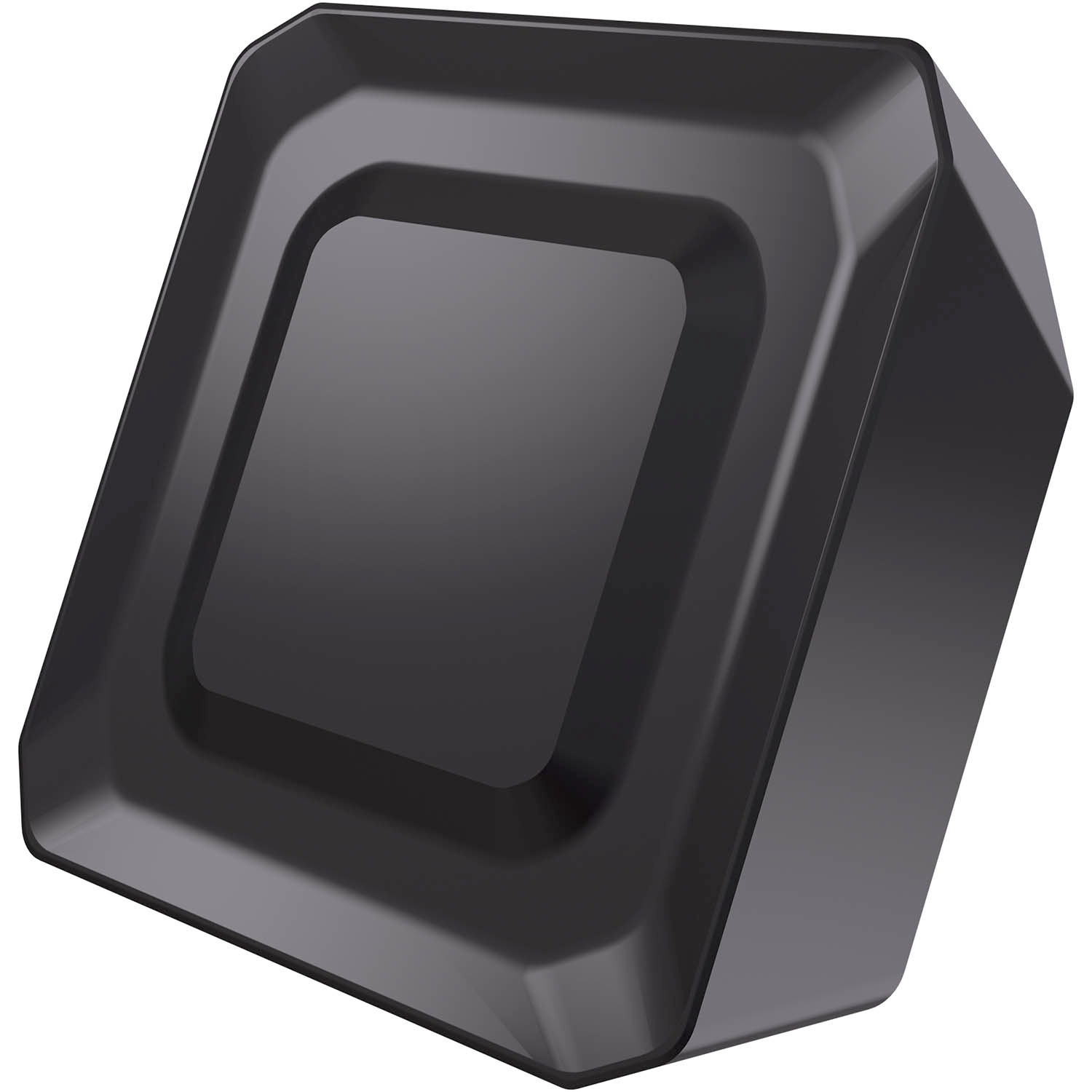

PRAMET SBMR 2207DZSR-R:M8346 Milling inserts clamped by wedge

Product Code: SBMR 2207DZSR-R:M8346

$84.98$77.25 Ex. GST

Product Code: SBMR 2207DZSR-R:M8346 SKU SBMR 2207DZSR-R:M8346 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided milling insert SBMR 2207 with chip-breakers, square for a maximum depth of cut of 15.0mm, with an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8346 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with face mills FSB22X

Additional information

Weight 0.0825 kg
barcode
Additional Information

Description: Value
EAN number: 3603602996923
Product number (SAP): 80024985
Ordering code ANSI: SBMR 2207DZSR-R:M8346
Gross weight – grams: 48.823
Inscribed circle diameter – millimeter (IC): 22 mm
m-dimension – millimeter (M): 2.82 mm
Insert thickness – millimeter (S): 8 mm
Wiper edge length – millimeter (BS): 1.99 mm
Grade: M8346
Insert Clearance Code and Angle: B 5°
Insert size: 22
Insert Thickness: 07
Insert Type: R
Chipbreaker manufacturer's designation (CBMD): R
Insert shape code (SC): S – square
ISO: SBMR2207DZSR-R:M8346

Brand

PRAMET
