PRAMET SCACR 1616 H 09 Turning holders external

Product Code: SCACR 1616 H 09

$162.02$147.29 Ex. GST

Product Code: SCACR 1616 H 09 SKU SCACR 1616 H 09 Categories , ,
PRAMET SCACR 1616 H 09 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

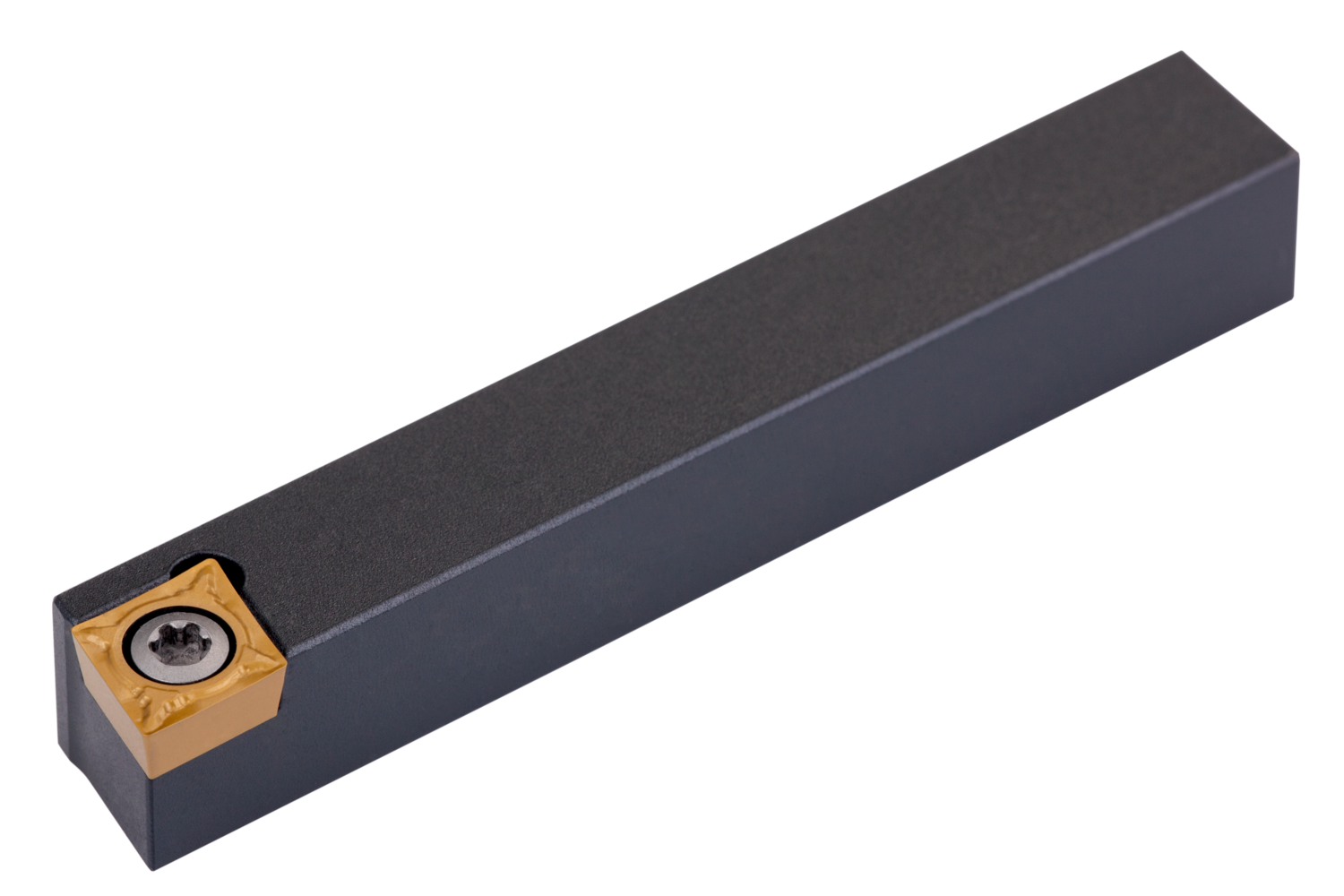

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), right hand 90° side cutting with straight shank, 16mm tool height x 16mm width x 100mm long for chamfering, taper turning and longitudinal turning with and without shoulder

Additional information

Weight 0.1573 kg
barcode
Additional Information

Description: Value
EAN number: 3603602921451
Product number (SAP): 84001101
Ordering code ANSI: SCACR 1616 H 09
Gross weight – grams: 223.3
Shank height – millimeter (H): 16 mm
Shank width – millimeter (B): 16 mm
Functional height – millimeter (HF): 16 mm
Functional width – millimeter (WF): 16.5 mm
Functional length – millimeter (LF): 100 mm
Inclination angle (LAMS): 0
Orthogonal rake angle (GAMO): 0
Net weight – grams: 220
Insert size: 09
ISO: SCACR1616H09

Brand

PRAMET
